Dexter

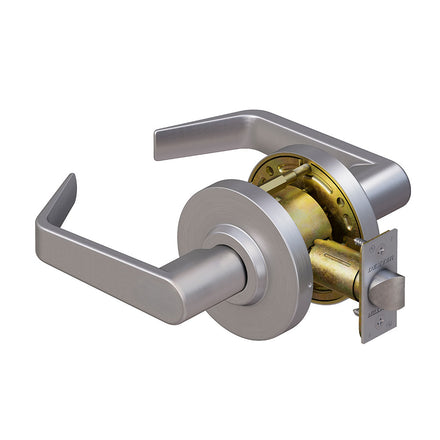

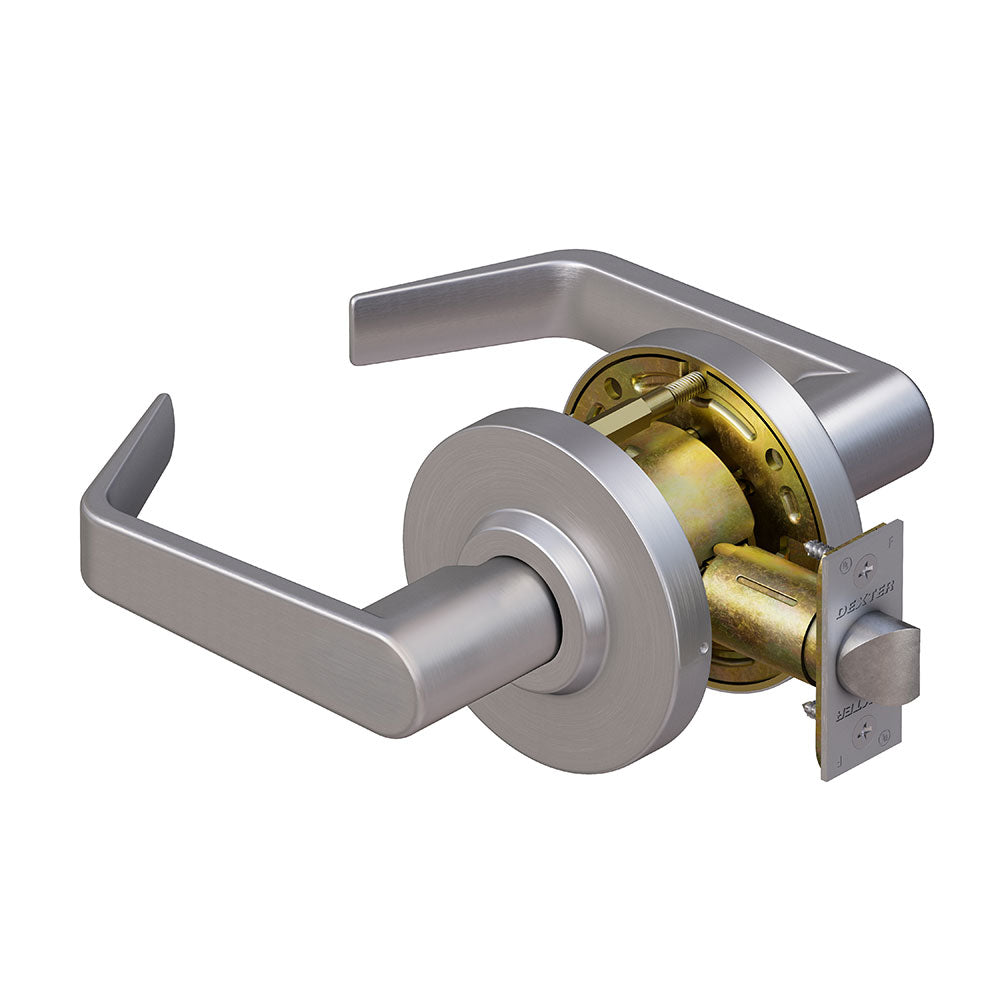

Dexter C2000-PASS Passage Cylindrical Lever Lock

$55.76
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • ANSI Function F75 - Passage
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Product Overview

Dexter C2000-PASS Grade 2 Passage Cylindrical Lock, Regular Lever, 2-3/4" B.S.

ANSI Function F75 – Latch bolt by levers at all times.

  • Grade 2, UL listed 3-hour
  • 1-3/8"  to 2" door range standard
  • All functions include 1-1/8"" x 2-1/4" square-corner beveled latch with 2-3/4" backset and ANSI 1-1/4" x 4-7/8" curved lip strike
Brand

Finishes

626 Satin Chrome, 613 Oil Rubbed Bronze, 622 Matte Black

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.2 Grade 2

Usage

Medium Duty

Lock Function

Passage

Lever Design

R: Regular Lever

Backset

2-3/4"

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Fire-Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
