Design Hardware CD-1000 - Cylinder Dogging Kit for 1000 Series Exit Devices

$83.17
Usually Ships:  30-45 Business Days
  • For all 1000 series Rim & SVR non-fire-rated exit devices
  • Converts standard hex key dogging to key-controlled dogging
  • Includes 1-1/8″ mortise cylinder, C keyway

Available Options:

Clear

Product Overview

Design Hardware CD-1000 Cylinder Dogging Kit, Includes Mortise Cylinder

Cylinder Dogging Kits are used to convert 1000 series devices from standard hex key dogging to key-controlled dogging through a mortise cylinder.

  • Compatible with Design Hardware 1000R and 1000V Series exit devices
  • Also compatible with Trudoor TDE-1000R and TDE-1000V exit devices

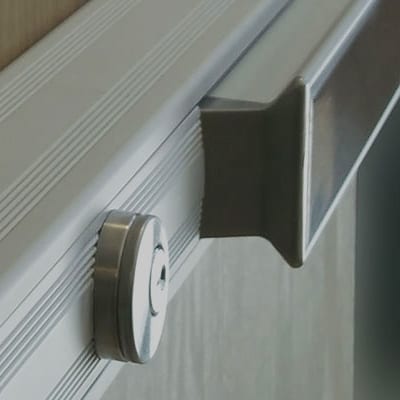

  • Cylinder dogging allows the push bar to be locked down using a key so the exit device can operate in push/pull mode to extend the life of the device

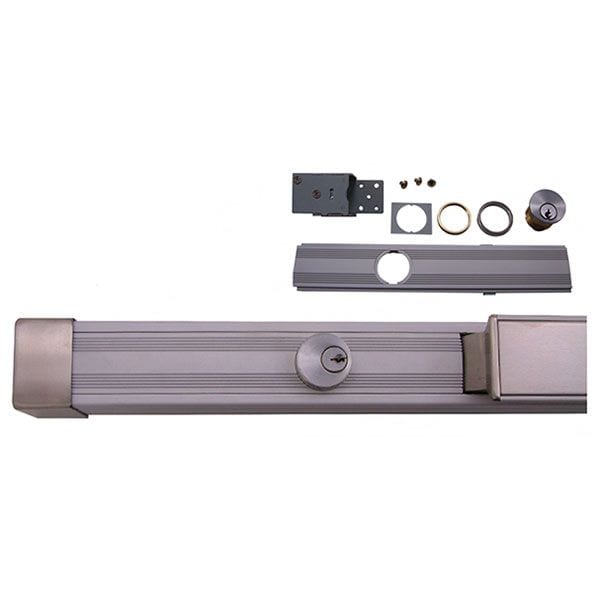

  • Included Parts: New Slide Cover, Cylinder Dogging Assembly, Mortise Cylinder, Cylinder Collar, Back Plate & Cylinder Retaining Ring
Brand

Finishes

US32D (630) Satin Stainless Steel

Part Type

Dogging Kit

Cylinder

1 1/8″ Mortise cylinder with std. cam (included) – 6 Pin Brass, C Kwy, with 2 Keys

Keyway

Schlage C Keyway

Compatible Devices

Design Hardware 1000R and 1000V, Trudoor TDE-1000R and TDE-1000V
