Product Overview

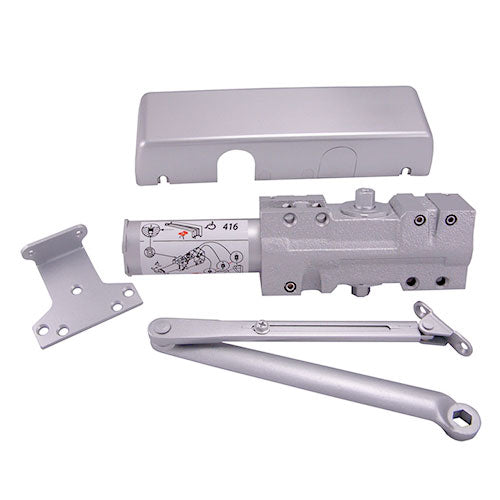

Design Hardware 416 Heavy-Duty Grade-1 Door Closer, Size 1-6 Adjustable, Cast Iron Body, Regular Arm with PA Bracket, Full Cover
The 416 is made of cast iron and designed to take high levels of use and abuse. It is equipped with adjustable opening spring power, 3 control valves, and will work well in high-traffic applications. It is most commonly used on heavy doors.
The Design Hardware 416 Series is an affordable door closer for institutional, industrial, commercial, and other high-traffic applications.
- Cast iron body is twice as durable as cast aluminum
- Heavy Duty Cast Iron Closer Body, Rack & Pinion Construction
- Adjustable Spring Power from Size 1 to 6 – Preset at size 3
- Independent Latch & Sweep Speed Controls
- Back Check Intensity Control Standard
- Staked Valves to prevent backing valves out too far
- Thru bolts with machine screws, Wood screws & Self-tapping machine screws included
- Includes all screws and brackets for Regular, Top Jamb and Parallel Arm Installations
| Brand | |
|---|---|
| Finishes |
690 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated) |

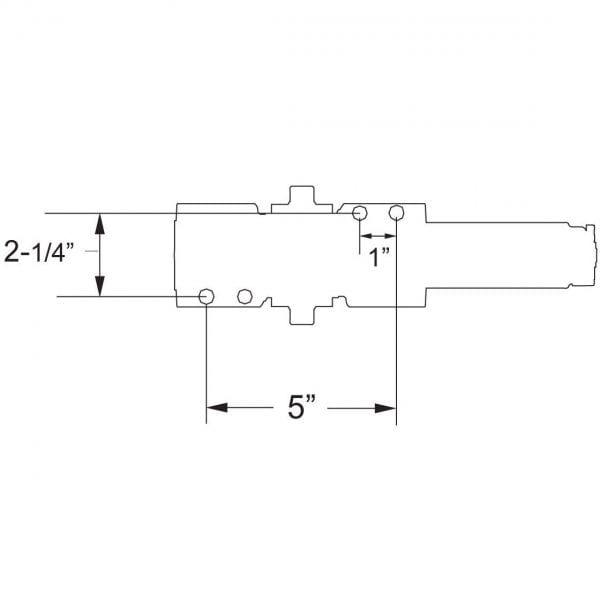

| Templating (Hole Pattern) |
2-1/4" x 5" |
| Mounting Options |
Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side) |
| Usage |
Heavy Duty |
| ANSI Grade |
Meets ANSI A156.4 – Grade 1 Standards |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Body Construction |
Cast Iron Body |
| Spring Size |
Adjustable Spring Size 1-6 |
| Fire-Rating |
“A” Label 3 Hour Fire Doors |
| Handing |
Non-Handed |
| Cover |
Full Cover |
| Door Applications |
Hollow Metal, Wood or Aluminum |
| Warranty |
Limited Lifetime Warranty |
