Product Overview

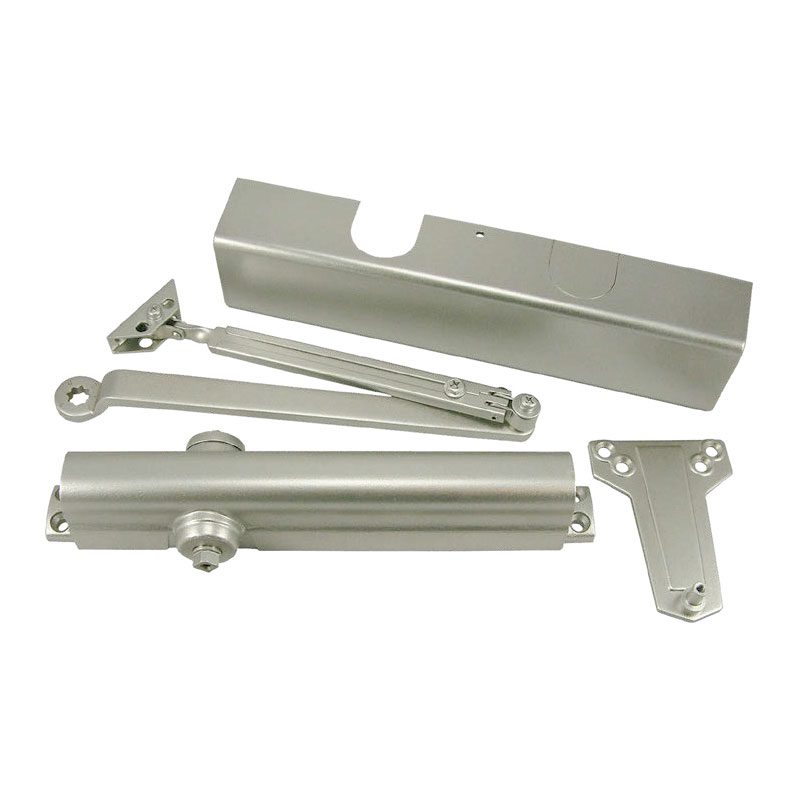

Design Hardware 316 Grade-1 Door Closer, Size 1-6 Adjustable, Cast Aluminum Body, Regular Arm with PA Bracket, Full Cover
The 316 is made of cast aluminum alloy and is Design Hardware's most versatile door closer. It is equipped with adjustable opening spring power, 3 control valves, and will work well in virtually all high-traffic applications. This door closer is Design Hardware's #1 selling door closer and comes available in 4 stock finishes.
The Design Hardware 316 Series is an affordable door closer for institutional, industrial, commercial, and other medium to high-traffic applications.
- Heavy Duty Cast Aluminum Closer Body, Rack & Pinion Construction
- Adjustable Spring Power from Size 1 to 6 – Preset at size 3
- Independent Latch & Sweep Speed Controls
- Back Check Intensity Control Standard
- Staked Valves to prevent backing valves out too far
- Minimum Top Rail : 3-1/2″ – Top Jamb: 2-1/4″ – Parallel Arm: 5-1/4″
- Thru bolts with machine screws, Wood screws & Self tapping machine screws included
- Includes all screws and brackets for Regular, Top Jamb and Parallel Arm Installations
| Brand | |
|---|---|
| Finishes |
690 Dark Bronze (Powder Coated), 696 Brass (Powder Coated), 693 Black (Powder Coated), 689 Aluminum (Powder Coated) |

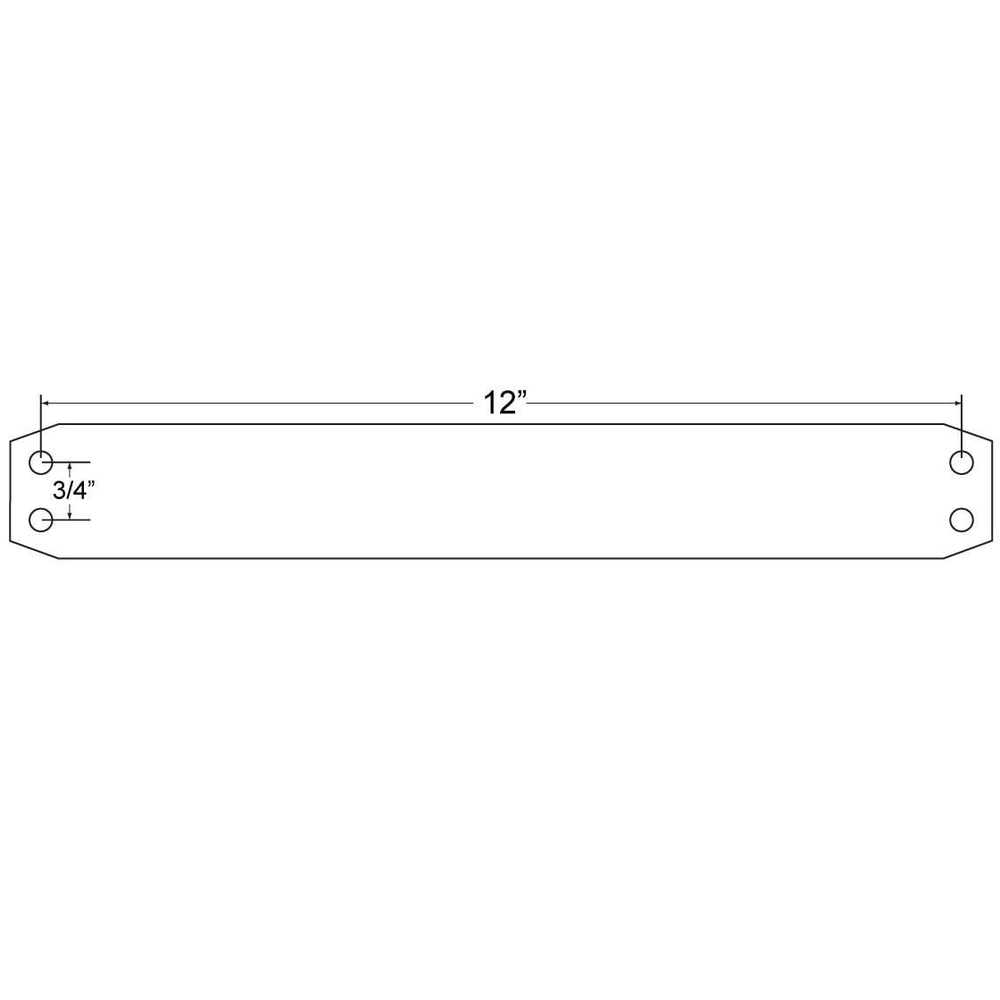

| Templating (Hole Pattern) |
3/4" x 12" |
| Usage |
Medium Duty |
| ANSI Grade |
Meets ANSI A156.4 – Grade 1 Standards |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Body Construction |
Cast Aluminum Body |
| Spring Size |
Adjustable Spring Size 1-6 |
| Fire-Rating |
“A” Label 3 Hour Fire Doors |
| Handing |
Non-Handed |
| Mounting Options |
Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side) |
| Cover |
Full Cover |
| Door Applications |
Hollow Metal, Wood or Aluminum |
