Corbin Russwin

Corbin Russwin DL3213 CL6 Single Cylinder Deadbolt, 6-Pin LFIC Prep

$171.15
Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade 1
  • Single Cylinder x Inside Turn
  • Prepped for 6-pin LFIC (less core)

Available Options:

Clear

Product Overview

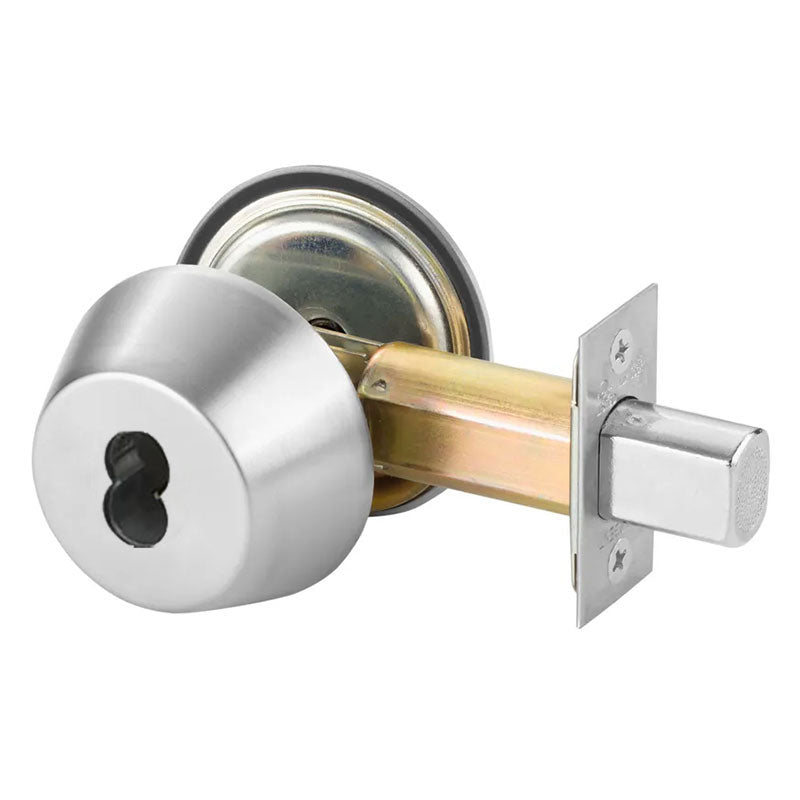

Corbin Russwin DL3213 CL6 Single Cylinder Deadbolt, Grade-1, 2-3/4" Backset, LFIC Prep, Less Core

Ideal for heavy-duty industrial and security applications, the DL3200 Series is a high-grade cylindrical deadbolt that is ANSI/BHMA Grade 1 certified.

ANSI E0151 Single Cylinder Deadlock

  • By key outside and by thumbturn inside
Brand

Finishes

US26D (626) Satin Chrome, US10B (613) Oil Rubbed Bronze, BSP - Black Suede Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent

ANSI/BHMA Standard

A156.36 Certified Grade 1

Usage

Heavy Duty

ANSI Function

E0151

Deadbolt Type

Single Cylinder

Cylinder

Prepped for (FSIC) Full Size Interchangeable Core (less core)

Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate

Backset

2-3/4"

Strike

1-1/8” x 2-3/4“ square corner

Fire-Rating

Fire Rated - UL10C - Positive Pressure
