Corbin Russwin

Corbin Russwin DC8210 Door Closer

$471.12
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, BHMA/ANSI Certified Grade-1
  • Regular, top jamb, or parallel arm mount
  • Adjustable spring size 1-6

Available Options:

Clear

Product Overview

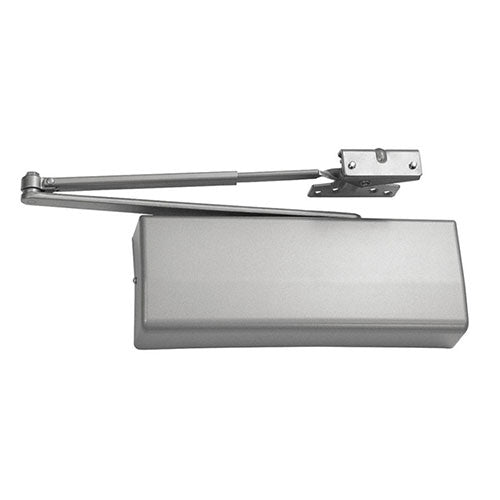

Corbin Russwin DC8210 Institutional Cast Iron Door Closer, Grade-1 Extra Heavy-Duty, Tri-Packed with PA Bracket

The Grade 1 DC8000 Series door closer is the perfect choice for high-use openings that must meet ADA requirements. A variety of arms, finishes, and quality features make the easy-to-install DC8000 ideal for schools, office buildings, health care facilities, and retail complexes. The series also meets UL10C and UBC7-2c positive pressure requirements for fire-rated openings.

With a heavy-duty arm and a strong, durable cast-iron closer body, the DC8000 offers added muscle for high-use and high-abuse situations.

  • Includes bracket and arm to install closer in standard, top jamb, or parallel applications
  • Meets ADA requirements in all applications
  • Universal Quik-Install™ bracket
  • Cast-iron closer body

Brand

Usage

Heavy Duty

Finishes

696 Brass (Powder Coated), 693 Black (Powder Coated), 689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated), 691 Light Bronze (Powder Coated)

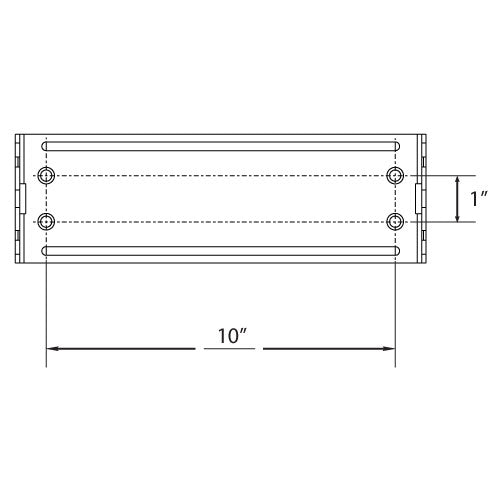

Templating (Hole Pattern)

1" x 10"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

ANSI/BHMA Standard

ANSI/BHMA Grade 1 156.4 standards

Fire-Rating

UL and cUL Listed – up to 3 Hours

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Body Construction

Cast Iron Body

Fasteners

Self-drilling screws, sex nuts and bolts (SNBs)

Cover

Full Cover

Spring Size

Adjustable Spring Size 1-6

Handing

Non-Handed

Warranty

25 Year Limited
