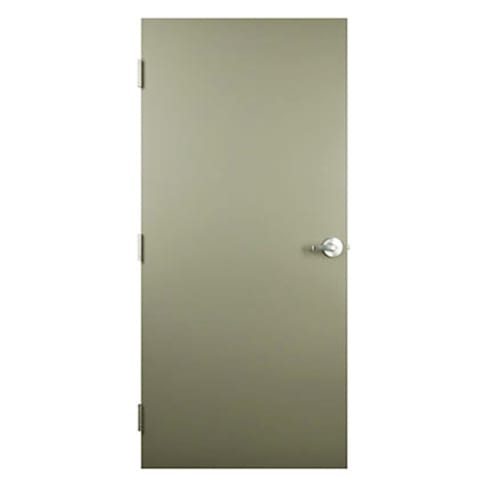

Temperature Rise Hollow Metal Door

Starting at:  $725.00
Nationwide Delivery

Temperature Rise metal doors are specified to control the transmission of heat. Temp rise doors offer the maximum in fire and life safety, because they feature a full body mineral core, which keeps the side of the door not exposed to fire below 250 degrees Fahrenheit.

  • Full Body Mineral Board Core
  • Includes Temperature Rise Fire Label
  • Fire-Rated up to 3 hours
Configure & Get Price
Added to Cart

Product Overview

Heavy-duty temperature rise steel door for commercial applications

Temperature Rise rated full flush doors feature mineral board cores that provide a 250° temperature rise rating, or 450° at 30 minutes of test exposure, depending on hardware application. This makes these doors ideal for stairwells in multi-level buildings when occupants must evacuate in case of emergency. In the event of a fire, temperature rise doors minimize the heat transfer to the non-fire side of the door. Standard 90-minute and 3-hour fire doors available.

Features

  • Mineral board core - 250°F (121°C) Temperature Rise rating or 450°C (232°C) at 30 minutes
  • Interlocking seam enhances structural rigidity and durability
  • Factory-applied rust-inhibiting primer (no special color options)
  • Fire-rated up to 3 hours with WHI / ITS mylar applied (optional)
Construction

18-Gauge Steel Face Sheets – (16 Ga. or 14 ga. Available)

Core

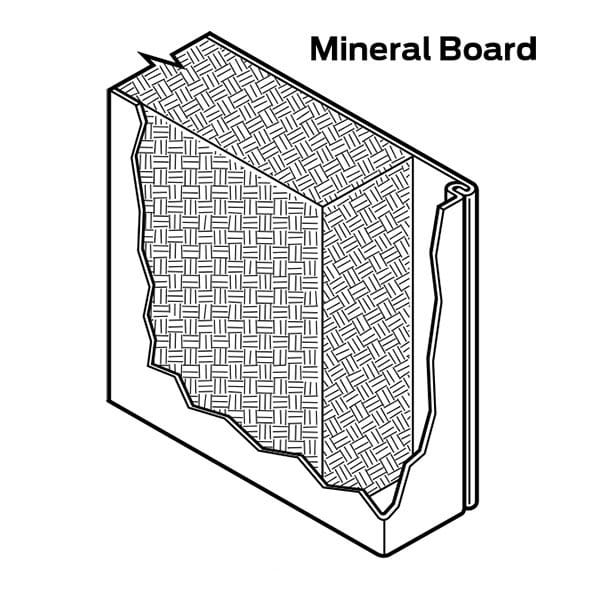

Mineral board core

Door Thickness

1-3/4" Standard

Sizes

Widths up to 4'0", Height to 8'0"

Handing

Handed - LH/RHR, RH/LHR

Edges

Beveled Hinge and Lock Edges - Full Height, Epoxy Filled Mechanical Interlock Edges

Channels

14 Gauge Inverted Top and Bottom Channels

Standards

Meet ANSI A250.8-2003 (SDI 100) - Hardware preparations and reinforcements meet ANSI A250.6-2003

Finish

Factory-Applied, Baked-On, Rust Inhibiting Primer (No Special Color Options) – Not intended to be a finish coat. It is recommended that finish paint (top coat) be applied after installation

Fire-Rating

Fire-Rated up to 3-Hours - Meets fire-rating requirements; listed for installations requiring compliance to both neutral pressure testing (ASTM E152 and UL-10B) and positive pressure standards (UL-10C)

Buy American Act Compliance

Meets Buy American Act – Made in USA

Mfg. Hinge/Lock Locations

Steelcraft, Ceco, Curries
