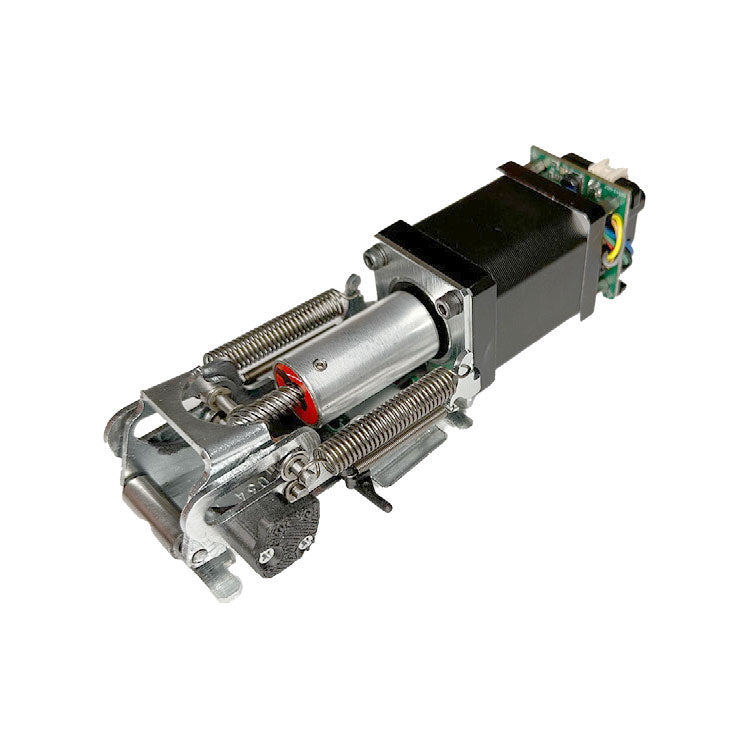

Command Access MLRK1-JAC12 Motorized Latch Retraction Kit for Jackson 1275/1285/1295 & Kawneer 1686/1786 Series Exit Devices

Command Access MLRK1-JAC12 Motorized Latch Retraction Kit, for Jackson 1275/1285/1295 & Kawneer 1686/1786 Series Exit Devices (Field Installation)

The MLRK1-JAC12 is a cost-effective and straightforward way to upgrade your Jackson 12, Kawneer 16/17 and PD16 series device to motor-driven latch retraction in the field. UL Listed + 3 Year Warranty.

The MLRK1-JAC12 is a robust, straightforward field-installable motorized latch retraction kit for Jackson 1275/85/95, Kawneer 1686/1786, & AHT 8/9 series exit devices. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses our new 1 TOUCH PTS “Push to Set” technology.

• Works with all Jackson 12, Kawneer 16/17 and PD16 Series devices
• Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• 1 Touch “PTS”: Quick & easy post-installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Torque Mode: Now capable of pulling all devices, even tall vertical rod doors!
• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 8’’cable with Robust Quick Molex Connect for MM5 module to conect to incoming power.
• UL Listed
• 3-Year “No Hassle” Warranty

Specifications:

• Voltage range – 24VDC +/- 10%
• System protection - unit shutdown when voltage exceeds 28VDC
• Standard - Average Current Peak: 900mA, Average Current Hold: 215mA
• PTS adjustment - approx. 1/4"
• Wire Run: 300' with 18ga wire
• Built-in (REX) Request-to-Exit kit optional
