Codelocks

Codelocks CL5210 Electronic Tubular Keypad Lever Lock

$399.45
This item ships FREE! Usually Ships:  1-2 Business Days
  • Allows up to 80 User Codes
  • Up to 200,000 operations from 4 x AA batteries (supplied)
  • Mechanical key override (Schlage C keyway)

Product Overview

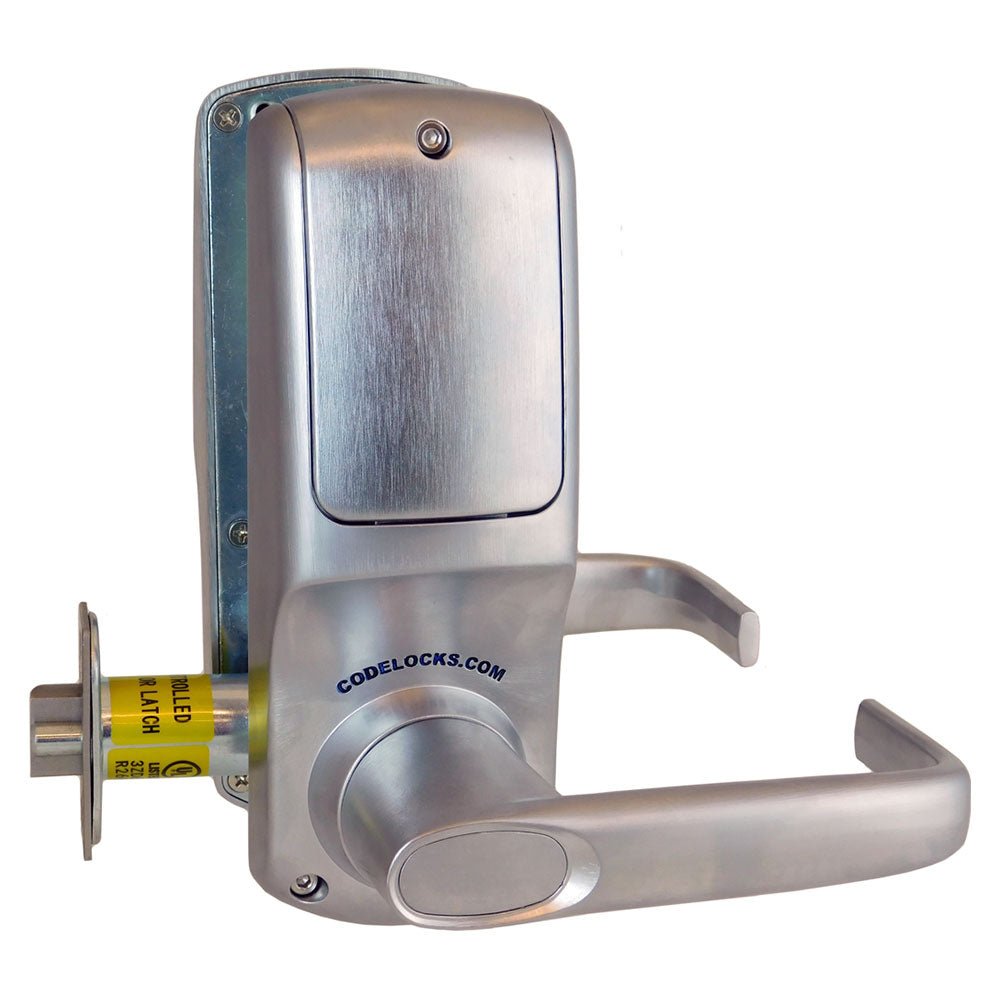

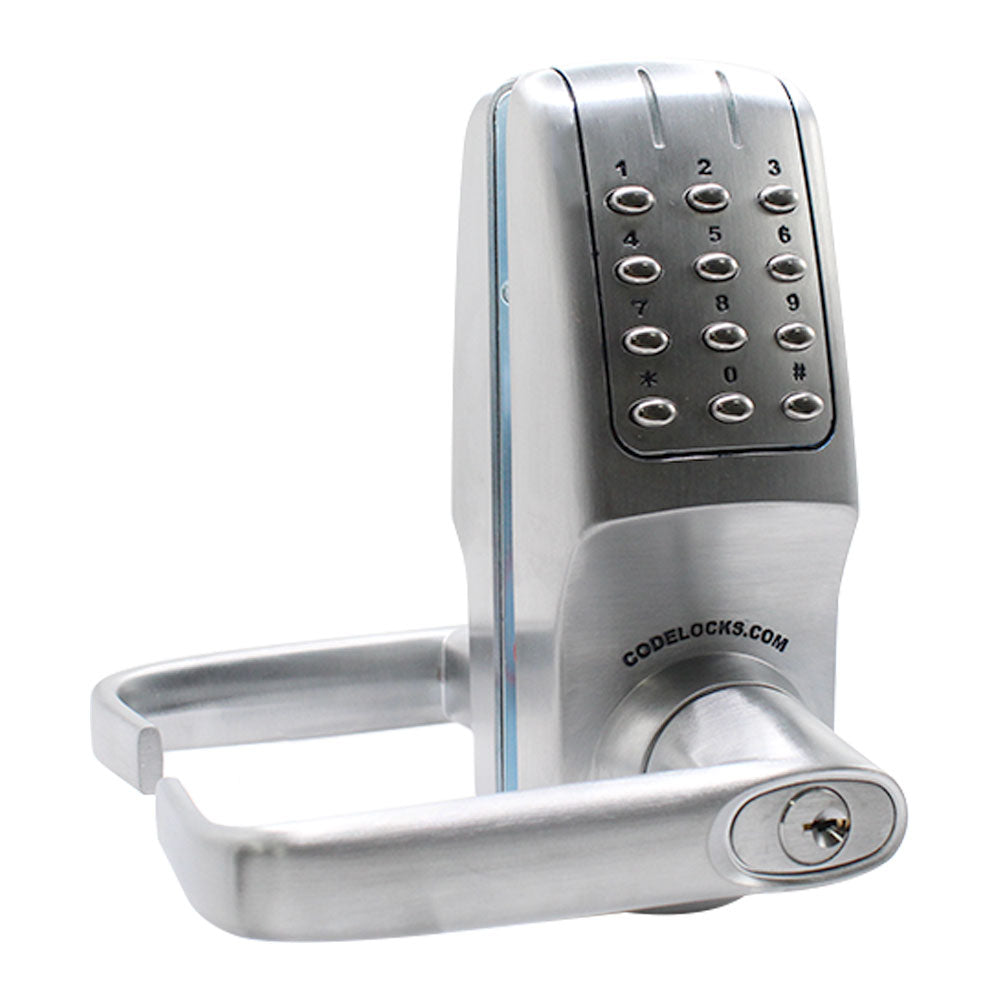

Codelock CL5210 Electronic Tubular Keypad Lever Lock, BS (Brushed Stainless Steel)

Locks in the CL5000 range are the ultimate standalone electronic door locks. Top of the range digital locks tested to Grade 2 ANSI A156.2/A156.25.

Tubular latch retracts via the outside knob after a valid code input. When the door closes, the spring latch will lock the door.

  • Tubular Mortise Latch
  • Allows up to 80 User Codes
  • Allows up to 10 one-time User Codes to be entered
  • 3-hour UL 10C certification
  • Brushed Steel finish
  • Over 200,000 operations from 4 x AA cells (provided)
  • Tamper time out and low battery warning
  • Connections for remote release by reception desk button
  • Alarm release included
  • Code Free entry
  • Lever handle lock for doors hung on the left or right
  • Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities
Brand

Finishes

US32D (630) Satin Stainless Steel

Lock Function

Pushbutton Keypad

Usage

Medium Duty

ANSI/BHMA Standard

Grade 2 ANSI A156.2/A156.25

Fire-Rating

Fire Rated - UL10C - Positive Pressure

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Latchbolt

2-3/4" backset standard, 2-1/4" x 1-3/16" square corner mortise faceplate

Cylinder Format

Conventional

Keyway

Schlage C Keyway

Backset

2-3/4"

Handing

Non Handed – Completely Reversible

Door Thickness

1-3/8" to 2-3/8"

Strike

2-3/4" T-Strike

Power

4 AA batteries

Warranty

2 Years
