Cal-Royal

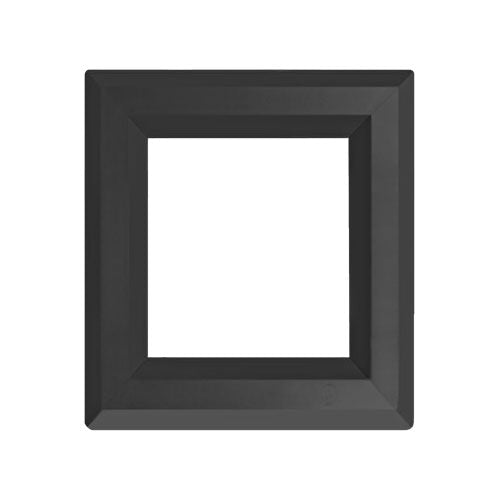

Cal-Royal SVL Series Vision Low Profile Lite Frame for 3/16" to 1/4" Glass, 1-3/4" Thick Door

$51.86
Usually Ships:  3-5 Business Days
  • 20-gauge cold rolled steel frame
  • For 3/16" to 1/4" Glass (sold separately)
  • For 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

Cal-Royal SVL Series Low Profile Vision Lite Frame for 3/16″ to 1/4″ Thick Glass, for 1-3/4″ Thick Doors

For use in fire-rated door applications under positive and neutral pressure. Intertek testing certification in compliance to NFPA 252 (2000), UL 10C (2009), CAN/ULS104 (2010), NFPA (201), and CSI CODE 0870 00.

  • Order size = cut-out size
  • Visible light is 2″ under rough opening size. Glass size is 1″ under order size
  • Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section. Use fire-rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • Low Profile Beveled Vision Lite
  • 20 Gauge Cold Rolled Steel
  • Mitered welded corners with counter-sunk mounting holes
  • Single side attaching with matching mounting screws included
  • For use with 3/16” to ¼” glass thickness
  • Designed for use with 1 ¾” doors only
  • Baked on powder coat finish
  • Fastener: # 8 x ⅞” flathead phillips head SMS
Brand

Finishes

Dark Bronze (DB), White (W), Flat Black (FBK), Grey (PR)

Order Size

12" x 12", 18" x 18", 24" x 36", 8" x 18", 5" x 35", 24" x 24", 24" x 30", 24" x 32", 6" x 27", 7" x 22", 8" x 32", 24" x 60"

Frame Construction

20 Gauge Cold Rolled Steel

Frame Fasteners

# 8 x ⅞” flathead phillips head SMS

Glass Thickness

3/16" to 1/4"

Door Thickness

1-3/4"

Frame Fire-Rating

Intertek testing certification in compliance to NFPA 252 (2000), UL 10C (2009), CAN/ULS104 (2010), NFPA (201) and CSI CODE 0870 00

Door Applications

1-3/4" Metal and Wood Doors

Country Of Origin

Imported
