Cal-Royal

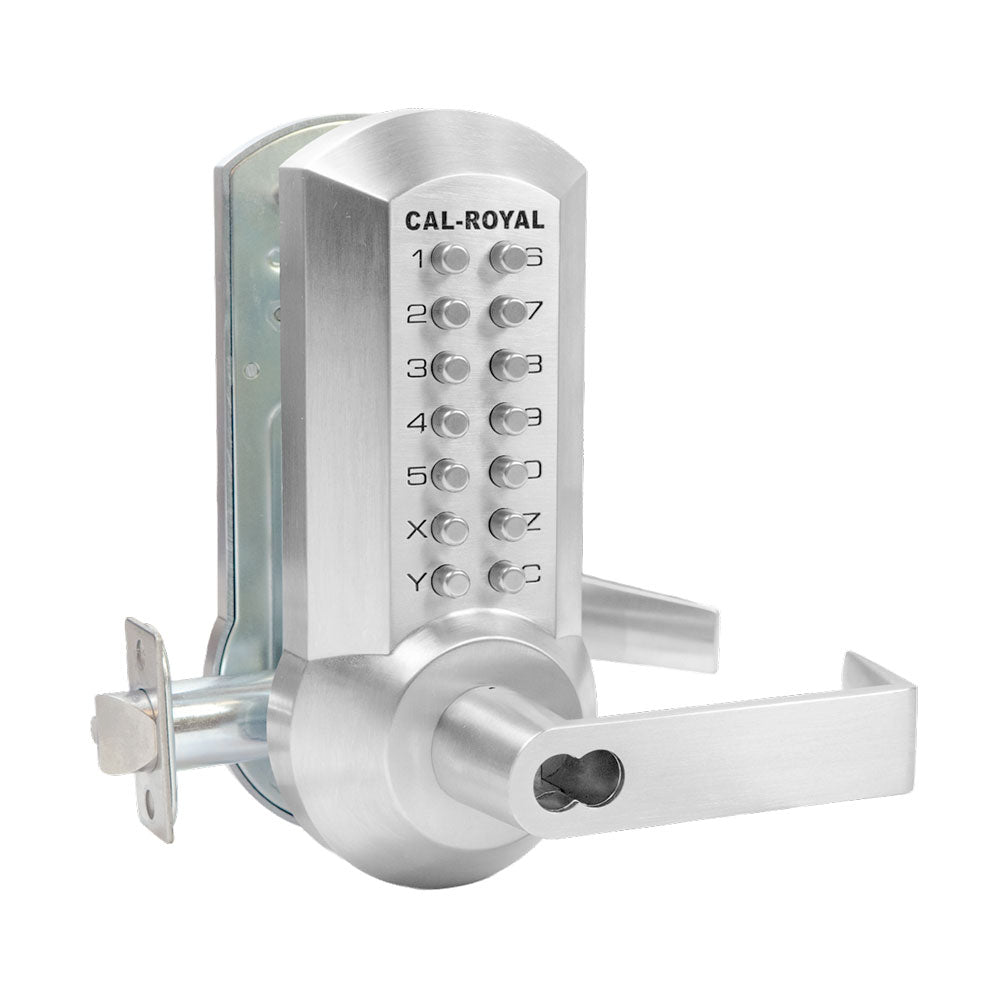

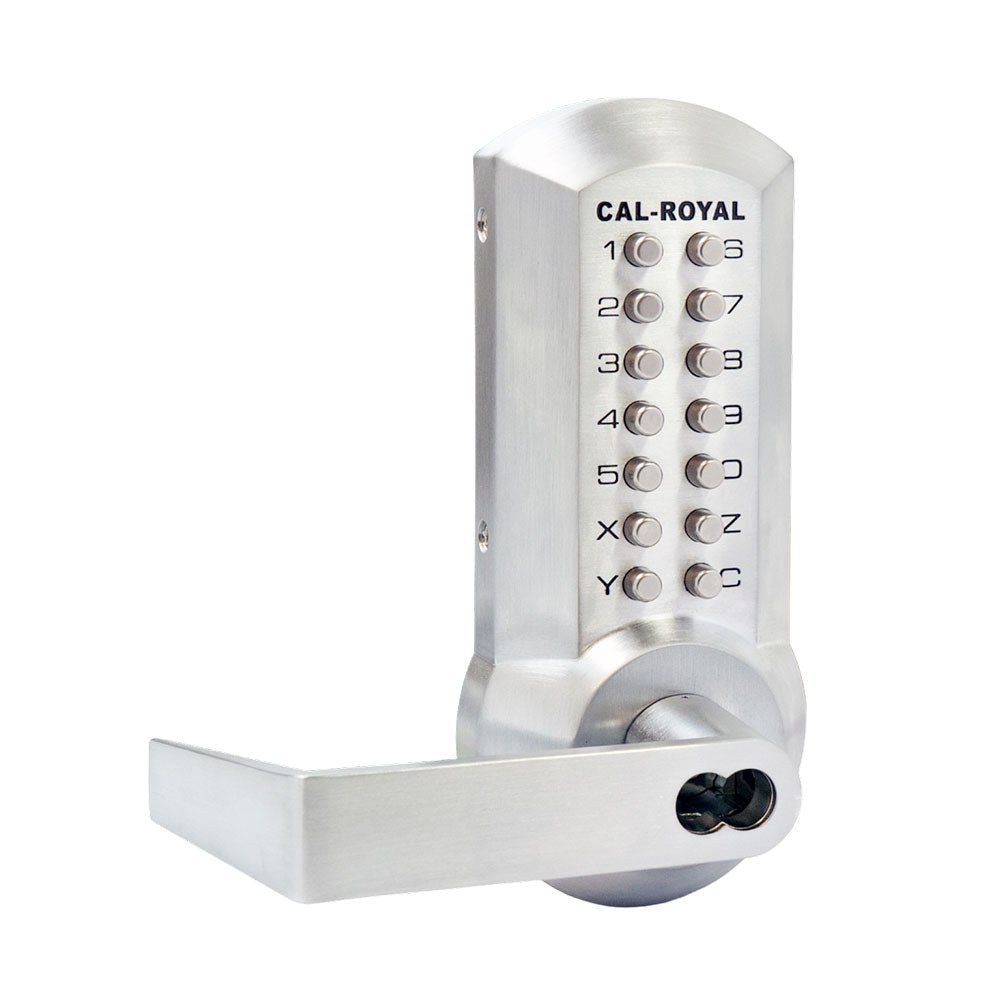

Cal-Royal ICCRCODE203 Mechanical Pushbutton Lever Lock, Double Coded with Key Override, SFIC Prep

$491.32
Usually Ships:  2-3 Business Days
  • Grade-2 standalone push button lock
  • Easy on-the-door code change without removing the lock
  • SFIC Prep (cores sold separately)

Available Options:

Clear

Product Overview

Cal-Royal ICCRCODE203 Stand Alone Mechanical Push Button Lock, (SFIC) Small Format Interchangeable Core, Less Cores

Mechanical Stand Alone Push Button Lock with Breakaway Lever Feature

Function: Latch bolt operated by lever from either side by entering a pre-programmed code on the keypad in order to retract the latch upon turning the lever. Both lever always locked, unless one or both sides are set to passage mode. If one side is set to passage, function can be storeroom. If both sides are set to code-free, function becomes passage. Default Function: Institution, Optional Functions: Storeroom, Passage Mode

  • Meets ADA requirements specially designed for Barrier Free Application. Conforms with ANSI A156.2, Series 4000 GRADE 2
  • Easy installation covers 161 prep (2-1/8" hole)
  • 1 - 12 Digit Code
  • Single Code User
  • Key Override (SFIC cores sold separately)
  • Easy on-the-door code change without removing the lock
  • Code-Free Option (Passage)
  • Breakaway Lever Design
  • Clutch-Free mechanism
  • Weather-Resistant
  • Non-Handed
  • More than 8000 non-sequential possible code combinations
  • For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings.
Brand

Finishes

US26D (626) Satin Chrome

Lock Function

Pushbutton Keypad

Cylinder Format

Small Format Interchangeable Core (SFIC)

Usage

Medium Duty

ANSI Grade

Meets or exceeds ANSI A 156.2, Series 4000 Grade 2 requirements

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8" ASA Strike

Door Thickness

1-3/8" to 2-1/4"

Handing

Non Handed – Completely Reversible

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Applications

Interior or Exterior Doors
