Product Overview

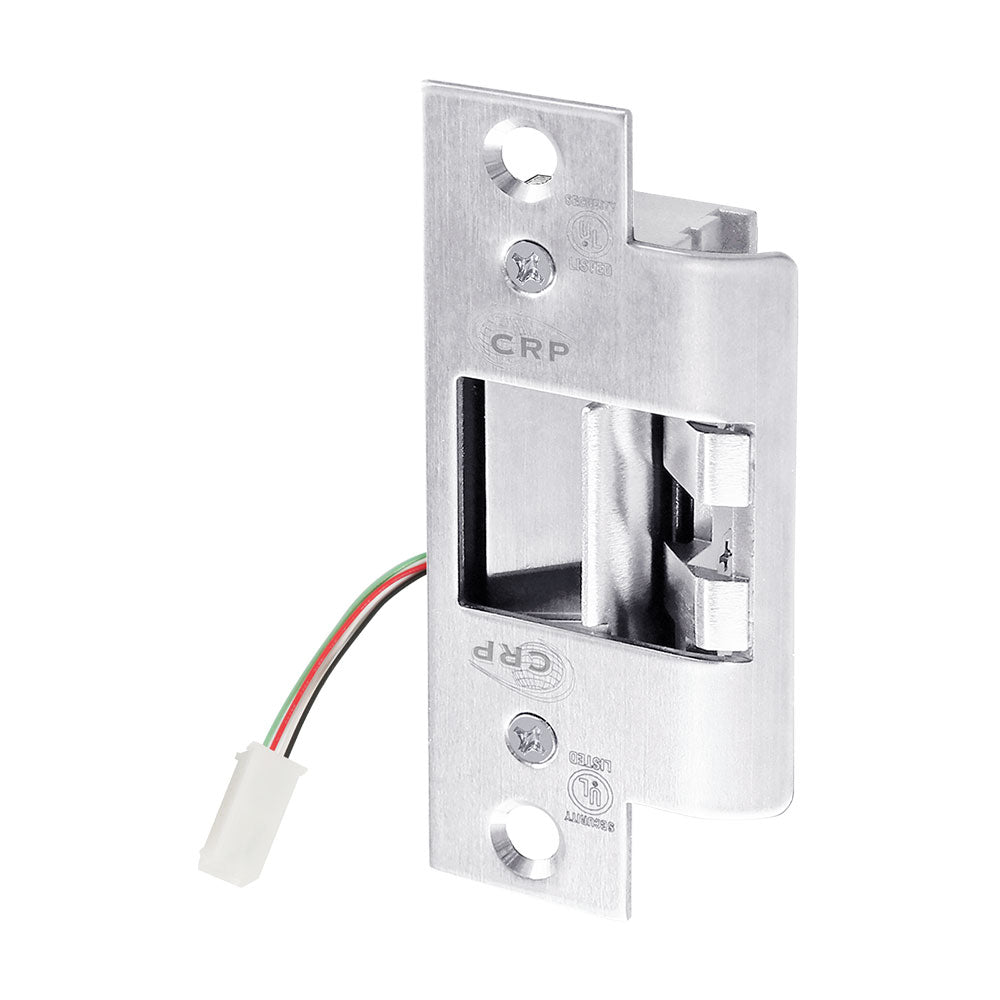

Cal-Royal FES1665 No Cut Fire-Rated Electric Strike for Cylindrical Locks, Field Selectable 12/24 VDC, Field Selectable Fail-Safe/Fail-Secure
FEATURES:
- Designed for use with Cylindrical Locksets
- For Hollow Metal Frame Applications
- No frame cutting is required - Special ramp design allows the latchbolt to exit from an unmodified frame
- Non-Handed, Fully Reversible
- Field Reversible for Fail Safe or Fail Secure Operation
- Static Strength: 1500 lbs (680 kg)
- Dynamic Strength: 70 ft-lbs
- Endurance Rating: 250,000 Cycles (UL Tested), 1,000,000 Cycles (Factory Tested, Exceeds Grade 1 Standards)
SPECIFICATIONS:
- Voltage: Dual 12/24VDC
- Current Draw: 300mA @ 12VDC, 150mA @ 24VDC
- Latch Throw: ¾” (19mm)
- Keeper Width: 1 7 / 16 ” (36mm)
- Mount: Mortise
- Body Construction: Stainless Steel
APPROVALS AND LISTINGS:
- UL1034 Burglary-Resistant Listed: BP21351
- UL294 Access Control System Listed: BP21351
- UL10B, UL10C, NFPA252, CAN/ULCS104 (3hrs) Fire Rated - ETL Listed: Control No. 5028159
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel, US1 (622) Flat Black |
| Electrical |
Voltage: Dual 12/24VDC - Current Draw: 300mA @ 12VDC, 150mA @ 24VDC |
| Usage |
Heavy Duty |
| Fire-Rating |
UL10B / UL10C Fire Rated (Fail-Secure Only) |
| Lock Type Compatibility |
Cylindrical Locks |
