Product Overview

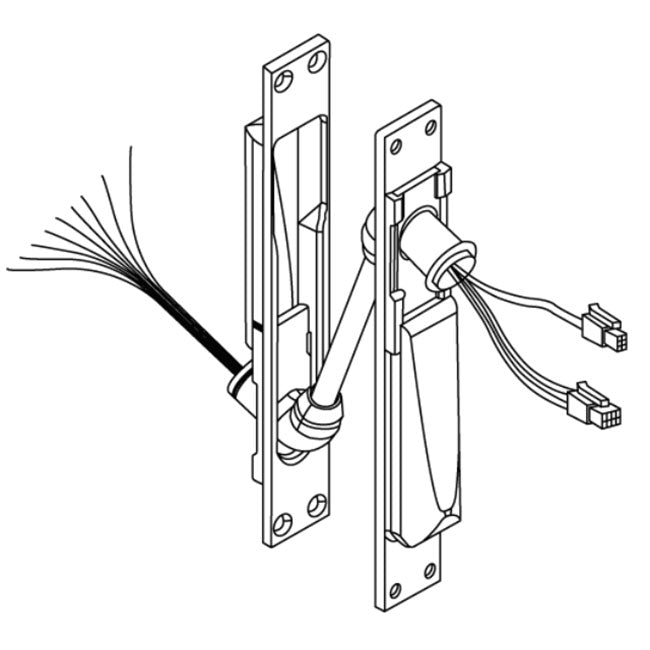

Cal-Royal CRPT-10C Concealed Electrical Power Transfer with Molex Connectors, (10) 24 AWG Wires
Designed to transfer electrical power from the frame to the door in a very secure manner
- MOLEX micro-fit 3.0 female
- Retrofits Electrolinks System
- UL 10C-Listed for up to 3 hours for Fire Rated doors and frames Standard 7-2, “Fire Test of Door Assemblies” (1997)
- UL-Listed as Miscellaneous Fire Door Accessories
- Classified according to Uniform Building Code (UBC)
- Unit is mortised into the edges of the door and frame and is completely concealed when door is in the close position
- Designed for use in high-traffic openings
- Packaged individually with fasteners for wood, steel, or aluminum doors and frames
- All parts are made of metal including back boxes - no plastic parts
- Housing Dimensions: 9” H x 1 ¼” W x 1 ⅝” D (229mm x 32mm x 41mm)
- Minimum door thickness - 1 ¾”
- (10) 24 AWG Wires
- Max. Rating: Up to 1 AMP @ 24 VDC, 1A
| Brand | |
|---|---|
| Finishes |
ALUM (Aluminum) |
| Fire-Rating |
ANSI/UL 10C Listed, 3 hour rated |
| Part Type |
Power Transfer |
