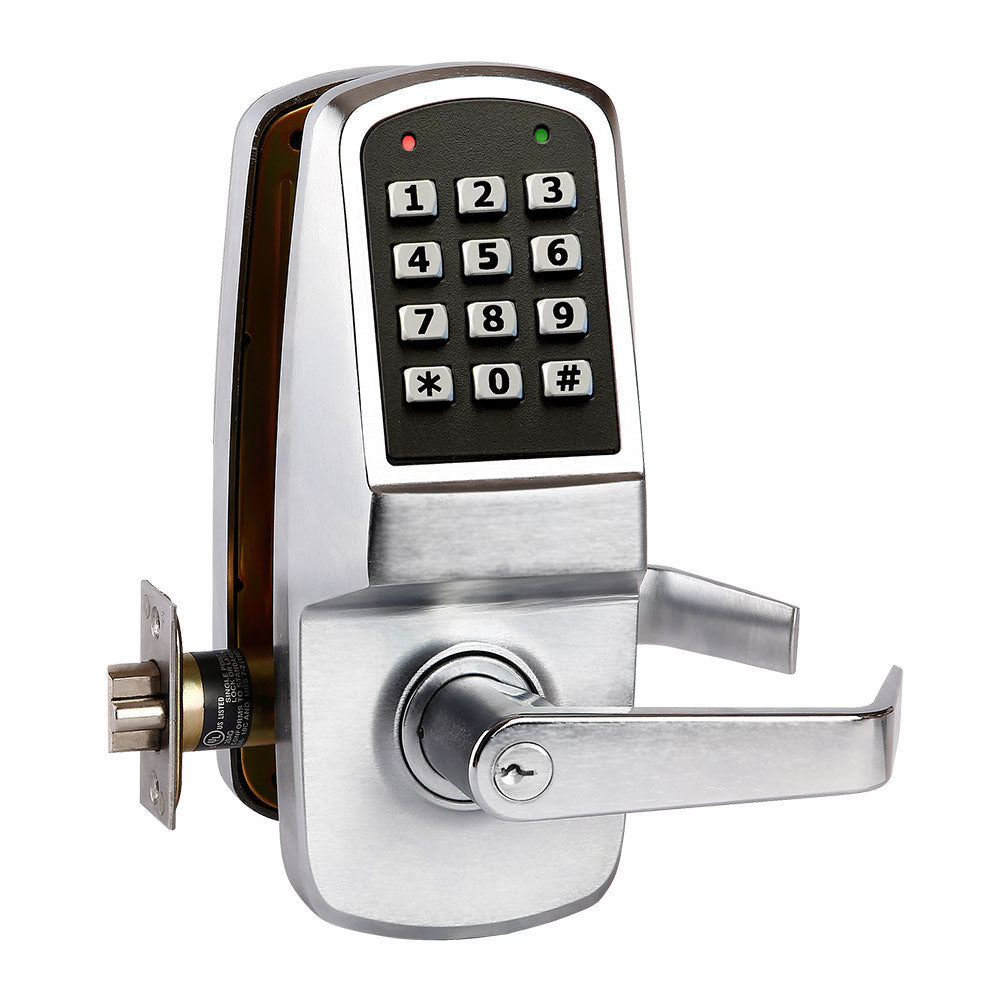

Cal-Royal CR8000 Digital Keypad Electronic Lever Lock

$478.27
Usually Ships:  30-45 Business Days
  • Weather resistant standalone electronic lock
  • Easy installation & programming
  • Mechanical key override, Schlage C keyway

Available Options:

Clear

Product Overview

Cal-Royal CR8000 Grade 1 Heavy Duty Digital Keypad Door Lock, Grade-1, Weather Resistant, Clutch Lever

For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial, and Public Buildings

Function: Latch bolt operated by lever from either side, except outside would need to enter a pre-programmed code on the keypad in order to retract the latch upon turning lever. Key overrides the use of the keypad.

Features

  • Master PIN Code - Use for programming the lock and entering Manager and User PIN codes. Can also be use to open the lock and reset to factory settings.
  • Manager PIN Code - Use to open the door with lock out mode. Also functions like a User PIN code. This feature can also program 3 one-time user codes.
  • User PIN Code - This feature only opens the lock by entering the code on the touch pad. It won’t be able to program or change settings. This lock can accommodate up to 1000, 3 to 6 digits combined RFID and User PIN codes.
  • One-Time User PIN Code - Can only be used once. This lock can store up to 3 one-time User PIN code simultaneously.
  • Passage Mode - Enabling passage mode allows continuous entry for non-restricted traffic. Passage mode can either be enabled or disabled by the Master Pin code. When in passage mode, the unlocked padlock icon will appear on the screen.
  • Beep & LED Indicators - This indicators can either be programmed for different settings. This feature is useful in making sure that every keypress was successfully entered.
  • Lock-Out Mode - This feature can either be enabled by the Master or Manager PIN Codes. When enabled, it restricts all User PIN codes access except Master and Manager PIN codes.
  • Keypad Anti-Tamper Lock Out - This function automatically shuts off the lock if an invalid code is entered 5 times in succession to prevent tampering.
  • Weather Resistant - CR8000 Series models are weather resistant for temperature ranges of -30○F ~ 150○F (-35○C ~ +66○C)
Brand

Finishes

US26D (626) Satin Chrome, US10B Oil Rubbed Bronze, US1 Black

Lock Function

Pushbutton Keypad

Usage

Heavy Duty

Cylinder Format

Conventional

ANSI Grade

ANSI Grade 1

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8" ASA Strike

Door Thickness

1-3/4"

Handing

Non Handed – Completely Reversible

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Power

4 AA batteries

Reader Type

Keypad

Door Applications

Interior or Exterior Doors

Warranty

2 Years
