Cal-Royal

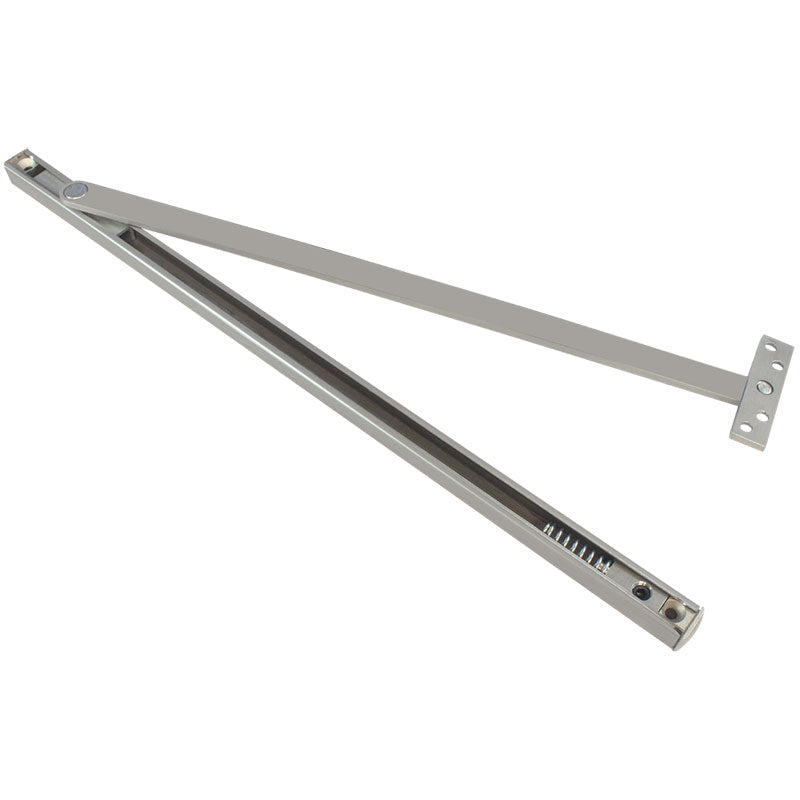

Cal-Royal CON770 Series Concealed Mount Overhead Door Holders and Stops

$72.94
Usually Ships:  2-3 Business Days
  • Concealed mount
  • Slide track design
  • Satin stainless steel finish

Available Options:

Clear

Product Overview

Cal-Royal CON770 Series Medium-Duty Concealed Mount Overhead Door Holders and Stops

Application

  • Interior or exterior doors
  • Single or double-acting
  • Non-handed
  • Recommended for moderate traffic, medium weight doors

Features

  • Medium-duty concealed, Slide track design
  • Degree of the opening is fully adjustable and can be adapted to changing needs
  • Heavy shock absorber spring provides 5-7° compression before dead-stop
  • Stop or hold-open function
  • Complete screw packet with thru-bolts for the door, wood and machine screws for frame
  • Durable slider cam
  • 110° maximum opening
  • 1-3/4" minimum door thickness

Compliance

  • ANSI A156.8 UL Listed as STOP Function

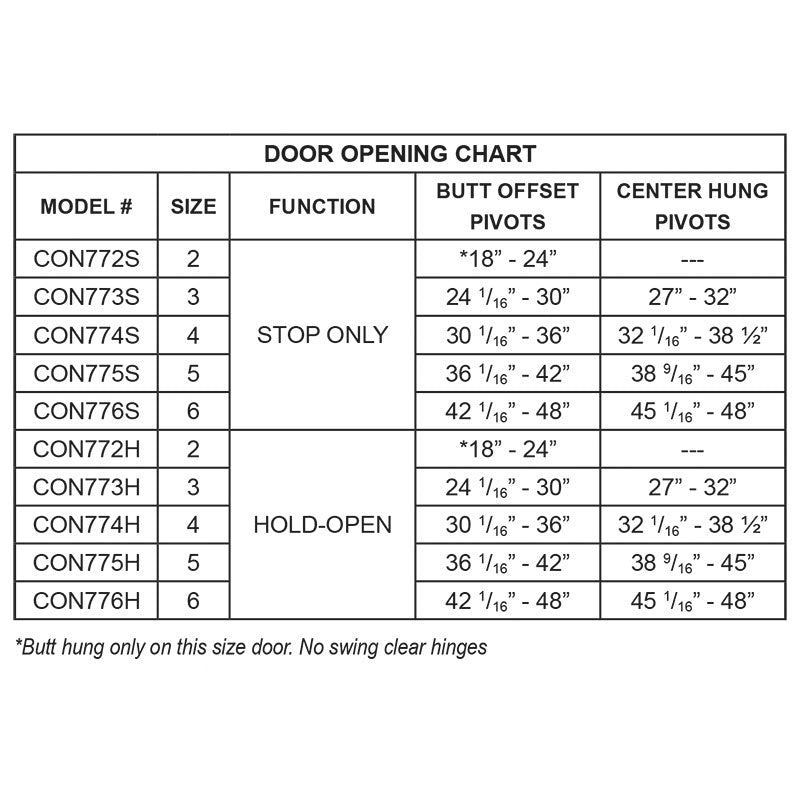

Models: CON772S-US32D, CON774S-US32D, CON774H-US32D, CON776S-US32D

Brand

Finishes

US32D (630) Satin Stainless Steel

Mouting Style

Concealed Mount

Handing

Non-Handed

Usage

Medium Duty

Fire-Rating

UL Listed up to 3 hours (stop function only)
