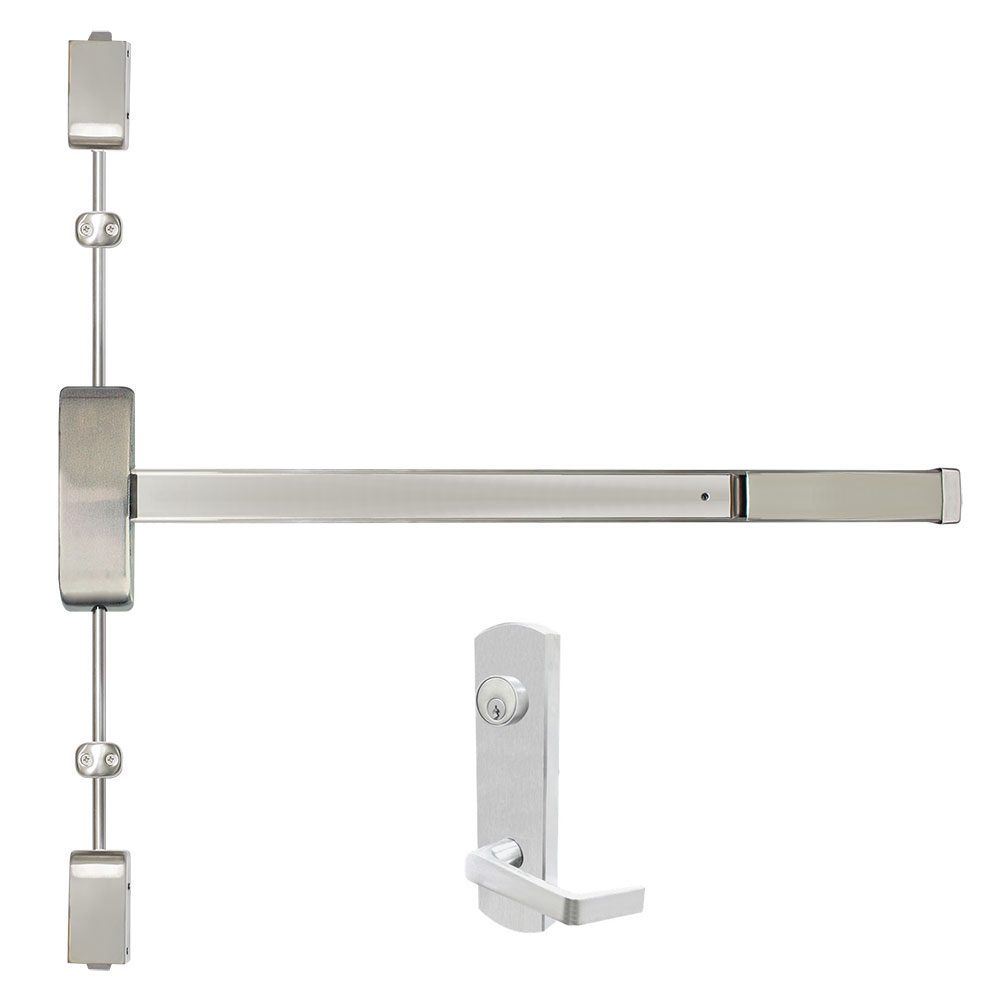

Cal-Royal A9860V x NESC9805 Surface Vertical Rod Exit Device with Escutcheon Storeroom Lever Trim

$564.86
This item ships FREE! Usually Ships:  2-3 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Includes NESC9805 escutcheon lever trim (cylinder included)
  • ANSI Function 09 – key/lever retracts latch bolt, otherwise always locked

Available Options:

Clear

Product Overview

Cal-Royal A9860V/AF9860V x NESC9805 Surface Vertical Rod Exit Device with Escutcheon Storeroom Lever Trim, Heavy Duty Grade-1

The 9800 Series offers uncompromising security and safety in single and double fire exit doors. For use in institutions, schools, universities, commercial buildings where heavy-duty reliable operation is a requirement.

  • ANSI Function 09 – (Night Latch) Rigid Storeroom, key unlocks lever, lever retracts latch bolt, otherwise always locked

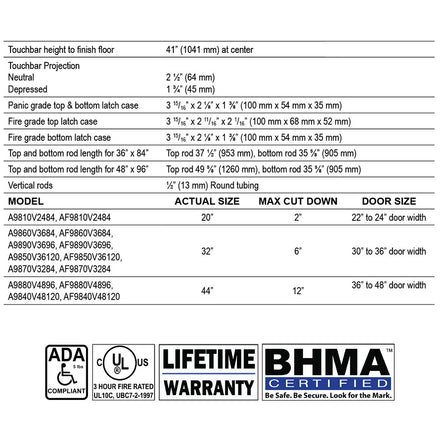

  • For Doors - 1 ¾" thick standard. 3 ¾" minimum stile width for single door application. 3 ½" minimum stile width required for double door application.
  • BHMA/ANSI A156.3, Grade-1 Certified
  • Retrofits Sargent 8800 Series
  • Conforms & Meets ADA Regulations
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
  • UL and ULC Listed - 9860 Series for panic. F9860 Series for fire exit hardware for all types of 8’ x 8’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes
  • Uncompromising security and safety in single and double fire exit doors
  • Chassis-mounted unit construction
  • Non-handed and easily reversible

NESC9805 Lever Trim

  • 2-3/4″ width x 10-1/4″ length – Lever length: 4-3/4″
  • Fits and covers 2-1/8″ 161 cutout
  • Rigid, non-clutch mechanism
  • Double heavy-duty spring support to prevent sagging and enhance operation
  • Grade 1, thru-bolted design
  • Non-handed design – Easily field reversible
  • Hardened steel heavy-duty tailpiece
  • Includes mortise cylinder (Schlage C keyway)
Brand

Finishes

US32D (630) Satin Stainless Steel

Size

36" x 84", 36" x 96", 48" x 96"

Usage

Heavy Duty

ANSI Grade

ANSI Grade 1

Fire-Rating

A9860V Non-Rated - AF9860V Fire-Rated up to 3 Hours

Stile Type

Wide (Standard)

Includes Trim

Yes

Trim

NESC9805

Cylinder

Standard 6-pin mortise cylinder included

Keyway

Schlage C Keyway

Handing

Completely Reversible

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Warranty

Limited Lifetime Warranty
