Cal-Royal

Cal-Royal A7700EO/AF7700 Panic Rim Exit Device

$369.77
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Non-handed and easily reversible
  • Exit Only (trim sold separately)

Available Options:

Clear

Product Overview

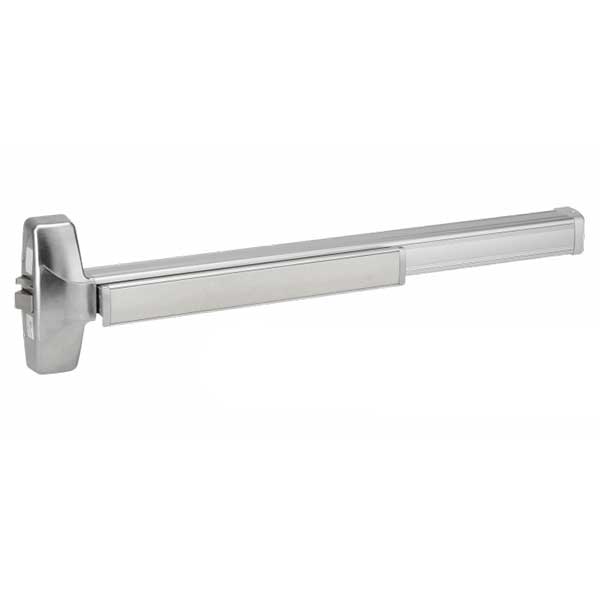

Cal-Royal A7700 & AF7700 ADA Series Grade-1 Rim Exit Device, Exit Only

The 7700 Series rim exit device offers uncompromising security and safety and is used in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.

  • Exit Only - (Outside Trim Sold Separately)

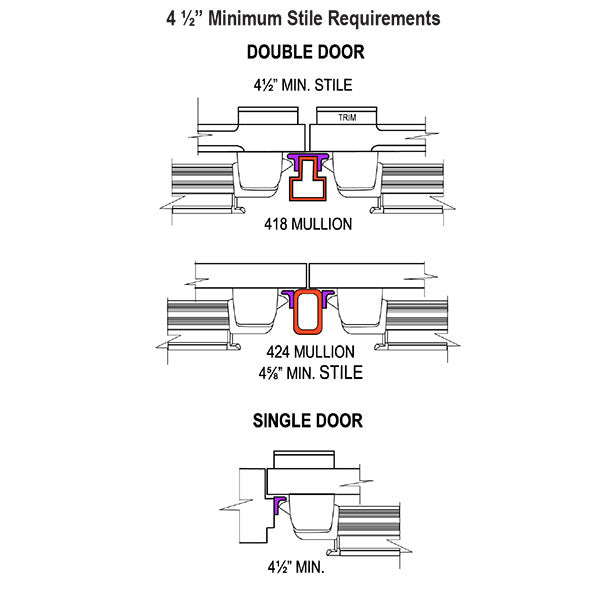

  • For use with single doors or double doors with mullions
  • Non-handed and easily reversible
  • A7700EO36 = 32" actual length, for 30" to 36" door widths
  • A7720EO48 = 44" actual length, for 38" to 48" door widths
  • F prefix = Fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up to 3-hour fire labeled installations
  • UL Listed for Panic and ULC10C, UBC 7-2-1997 codes
  • Conforms & Meets ADA Regulations.
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
  • Retrofits Von Duprin 99 & 98 Series using 7700 escutcheon trim
Brand

Finishes

US32D (630) Satin Stainless Steel, US10B (613) Oil Rubbed Bronze, L1 Black

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Includes Trim

No

Stile Type

Wide (Standard)

Handing

Non Handed – Completely Reversible

ANSI Grade

ANSI Grade 1

ANSI/BHMA Standard

ANSI A156.3, Grade 1

Usage

Heavy Duty

Fire-Rating

7700EO: Non-Rated - F7700EO: UL Listed 3 Hour Rated

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Latchbolt

Stainless steel 3/4” throw with anti-pick feature

Strike

938 packed standard

Warranty

Limited Lifetime Warranty
