Best

Best 45HW7DEU Electrified Mortise Lock, 24V, Electrically Unlocked, Fail Secure

$1,295.18
Usually Ships:  1-2 Business Days
  • Extra Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • DEU: Electrically unlocked, single key latch
  • Less SFIC Core (sold separately)

Available Options:

Clear

Product Overview

Best 45HW7DEU Grade 1 Single Latch Electrified Mortise Lock, 24V, Electrically Unlocked, Fail Secure, (SFIC) Small Format Interchangeable Core Housing, Less Core

When you want the toughest mechanical security for your building, you want the 40H Series from BEST.

With its advanced features, improved functionality, and unique versatility, this durable mortise lock is reliable and flexible in any commercial or industrial setting.

Heavy-duty in both protection and performance, the 40H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. The BEST interchangeable core allows for customized master keying and quick keying changes. And its tough steel frame accommodates heavy traffic while standing strong against break-in attempts. All the while, the 40H remains a low-maintenance product that is easy to reconfigure and easy to install.

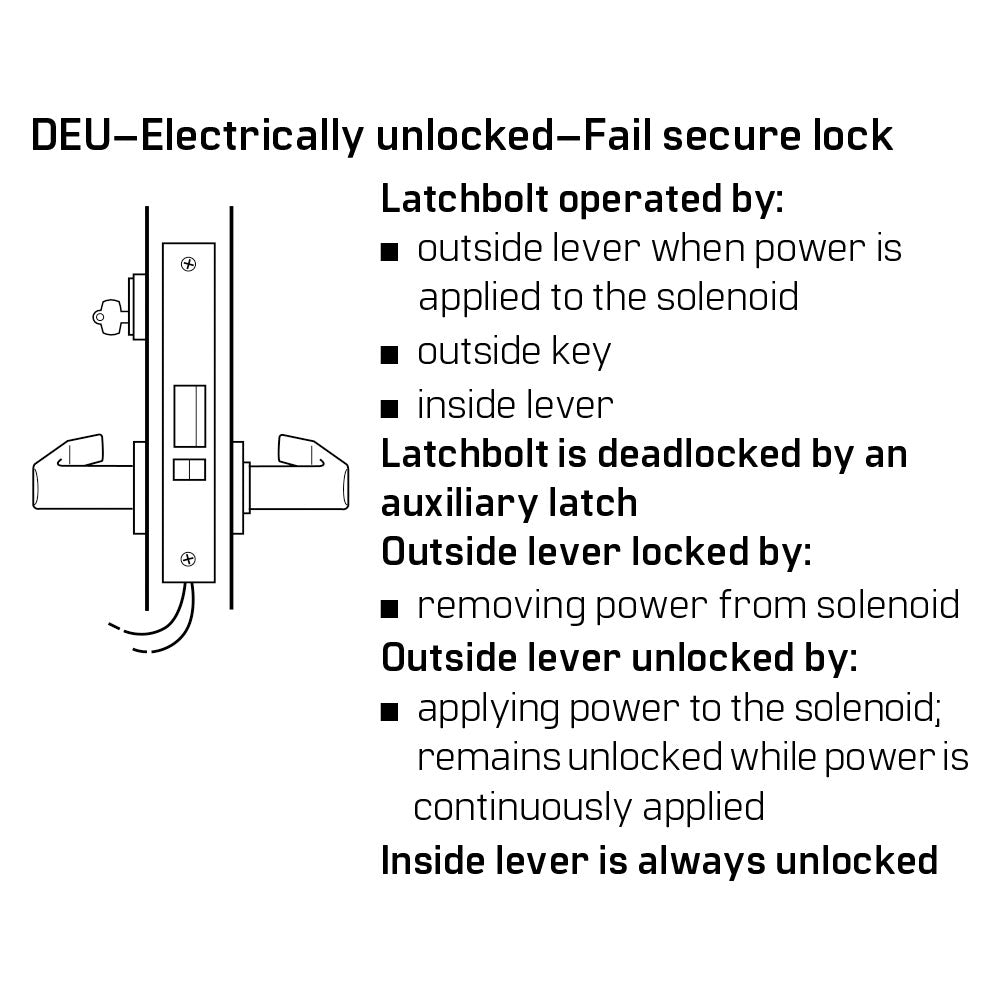

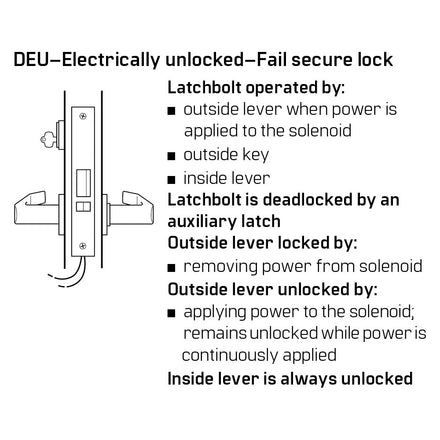

Function: DEU Unlocked Fail Secure

Latch operated by: Outside knob/lever when power is applied to the solenoid Outside key Inside knob/lever Latchbolt is deadlocked by an auxiliary latch

Outside Lever Locked by: Removing power from solenoid

Outside Lever Unlocked by: Applying power to solenoid; remains unlocked while power is on

Inside Lever Locked by: Cannot be locked

Inside Lever Unlocked by: Always unlocked

  • Less (SFIC) Small Format Interchangeable Core (sold separately)
  • Field reversible handing
  • H Rose: Flat w/ round edge, 2-3/4″ diameter
  • J Wrought Escutcheon: 7-1/2" H x 2-9/32" W x 17/32"
  • S1 Standard strike: 4-7/8″ x 1-1/4″ x 3/32″, non-handed, curved lip, 1-1/4″ lip to center strike

made-in-usa-codes

Brand

Finishes

626 Satin Chrome

Lock Function

Electrically Unlocked

Lever Design

15 Lever (Contour Angle, Return), 3 Lever (Solid Tube, Return), 16 Lever (Curved, No Return), 14 Lever (Curved, Return)

Trim

H Rose, J Escutcheon

ANSI/BHMA Standard

ANSI/BHMA A156.13 Series1000—Grade 1

Usage

Heavy Duty

Cylinder

Standard 1E74 Mortise Cylinder Housing (Core Sold Separately)

Core

Not Included - Sold Separately

Backset

2-3/4"

Hand

Field Reverisble (Shipped as RH)

Fire-Rating

UL/cUL listed up to 3 Hours

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Case

0.095” cold rolled steel, 5 7/8” H x 7/8” D x 4 1/16” W

Latchbolt

Solid stainless steel, 3/4” throw

Fail Secure / Fail Safe

Fail Secure (EU)

Voltage

24VDC

Door Thickness

1-3/4"

Buy American Act Compliance

Meets Buy American Act - Made in USA
