Best

Best 45H7AB Office/Entry Mortise Lock with Deadbolt

$838.95
Usually Ships:  1-2 Business Days
  • Extra Heavy-Duty, ANSI/BHMA Grade-1 Certified

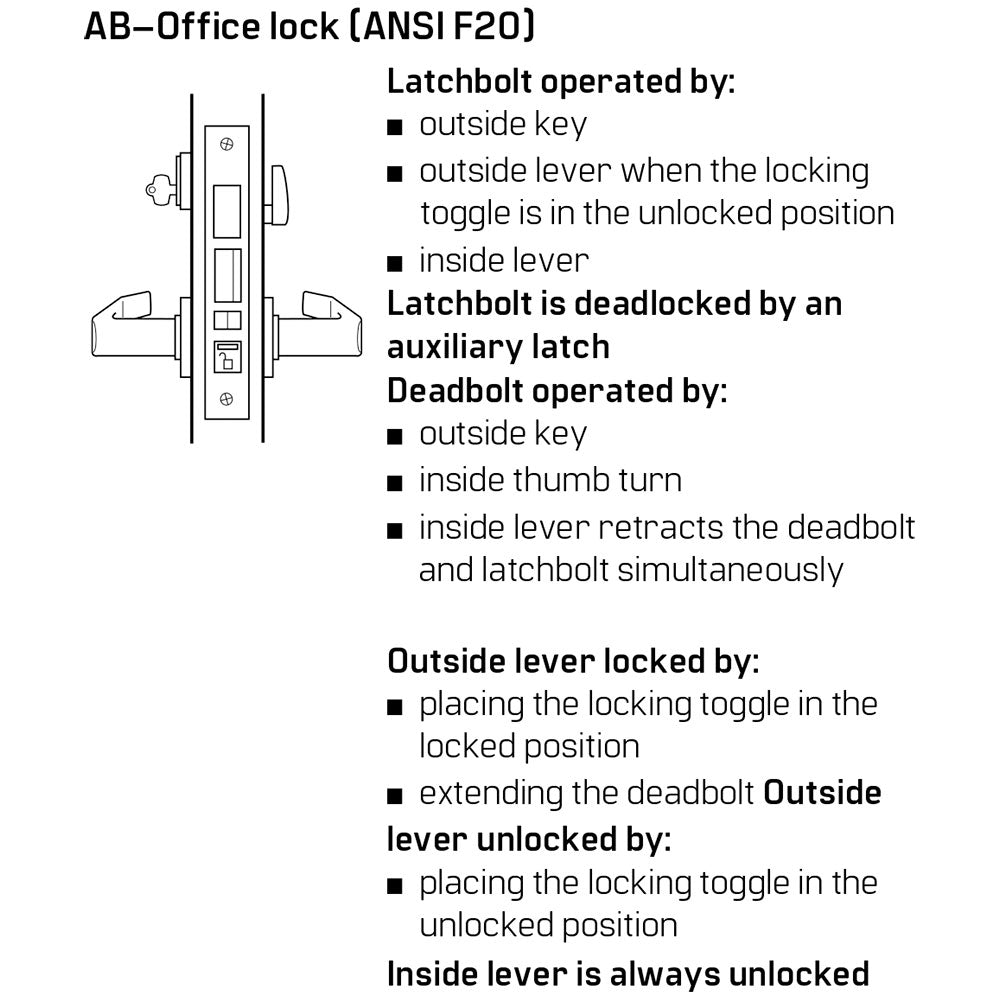

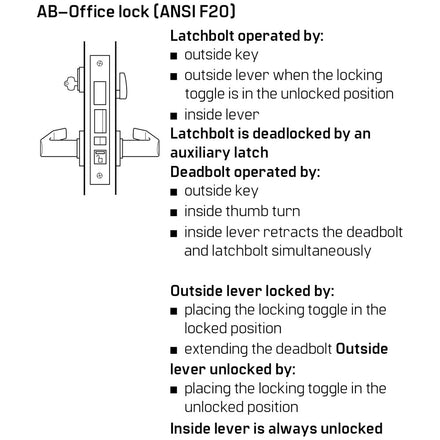

  • ANSI Function: F20 – (AB) Entrance/Office
  • Less SFIC Core (sold separately)

Available Options:

Clear

Product Overview

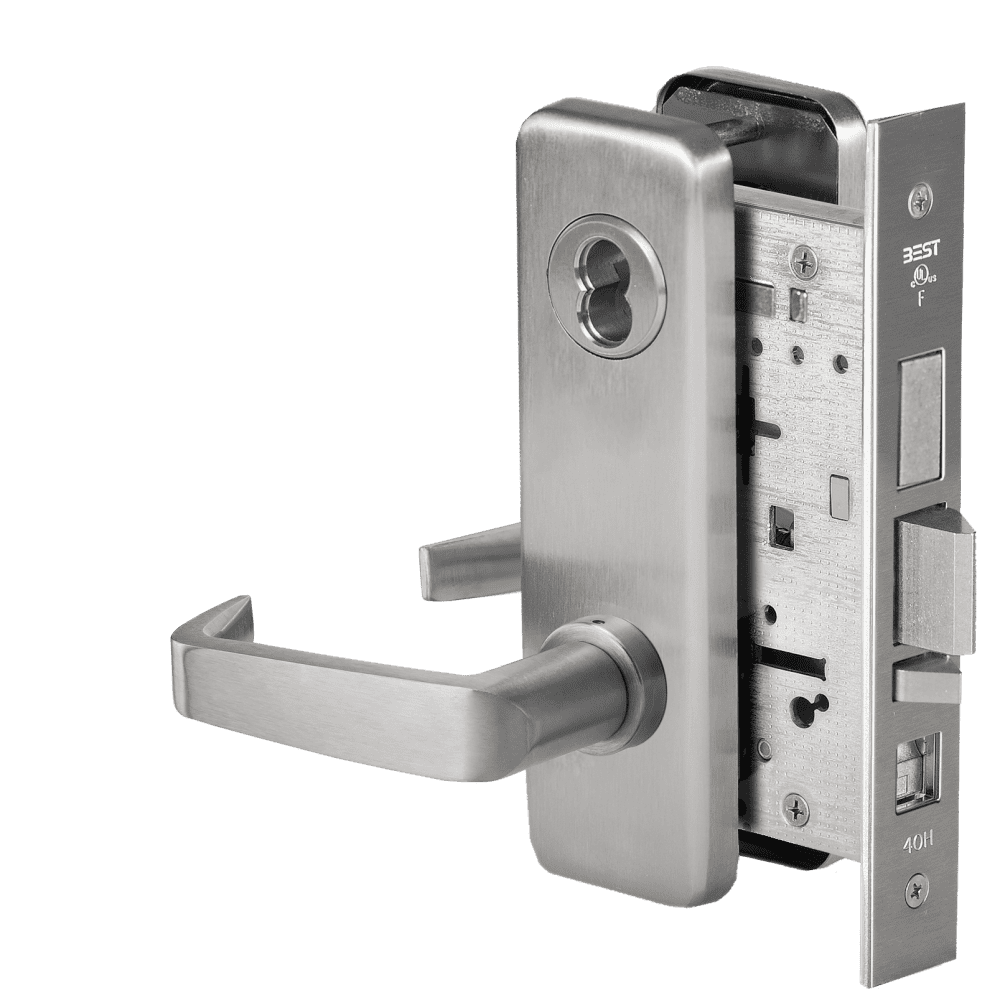

Best 45H7AB Grade 1 Office/Entry Mortise Lock, (SFIC) Small Format Interchangeable Core Housing, Less Core

When you want the toughest mechanical security for your building, you want the 40H Series from BEST.

With its advanced features, improved functionality, and unique versatility, this durable mortise lock is reliable and flexible in any commercial or industrial setting.

Heavy duty in both protection and performance, the 40H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. The BEST interchangeable core allows for customized master keying and quick keying changes. And its tough steel frame accommodates heavy traffic while standing strong against break-in attempts. All the while, the 40H remains a low-maintenance product that is easy to reconfigure and easy to install.

  • ANSI Function: F20 – (AB) Entrance/Office
  • Less (SFIC) Small Format Interchangeable Core (sold separately)
  • Field reversible handing
  • H Rose: Flat w/ round edge, 2-3/4″ diameter
  • J Wrought Escutcheon: 7-1/2" H x 2-9/32" W x 17/32"
  • S1 Standard strike: 4-7/8″ x 1-1/4″ x 3/32″, non-handed, curved lip, 1-1/4″ lip to center strike

made-in-usa-codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 625 Bright Chrome, 622 Matte Black, 626 Satin Chrome

Lever Design

15 Lever (Contour Angle, Return), 14 Lever (Curved, Return), 3 Lever (Solid Tube, Return), 16 Lever (Curved, No Return)

Trim

J Escutcheon, H Rose

Lock Function

Entry with Deadbolt

ANSI Function

F20

ANSI/BHMA Standard

ANSI/BHMA A156.13 Series1000—Grade 1

Usage

Heavy Duty

Cylinder

Standard 1E74 Mortise Cylinder Housing (Core Sold Separately)

Core

Not Included - Sold Separately

Backset

2-3/4"

Hand

Field Reverisble (Shipped as RH)

Fire-Rating

UL/cUL listed up to 3 Hours

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Case

0.095” cold rolled steel, 5 7/8” H x 7/8” D x 4 1/16” W

Latchbolt

Solid stainless steel, 3/4” throw

Deadbolt

Stainless steel, 1” throw

Door Thickness

1-3/4"

Buy American Act Compliance

Meets Buy American Act - Made in USA
