Best 45H0L Privacy Mortise Lock

$718.48

This item ships FREE! Usually Ships: 1-2 Business Days

Extra Heavy-Duty, ANSI/BHMA Grade-1 Certified
ANSI Function: F019 – (L) Privacy
ADA Compliant, 3-Hour Fire-Rated

Available Options:

Clear

Finish
Lever Design

Quantity:

Added to Cart

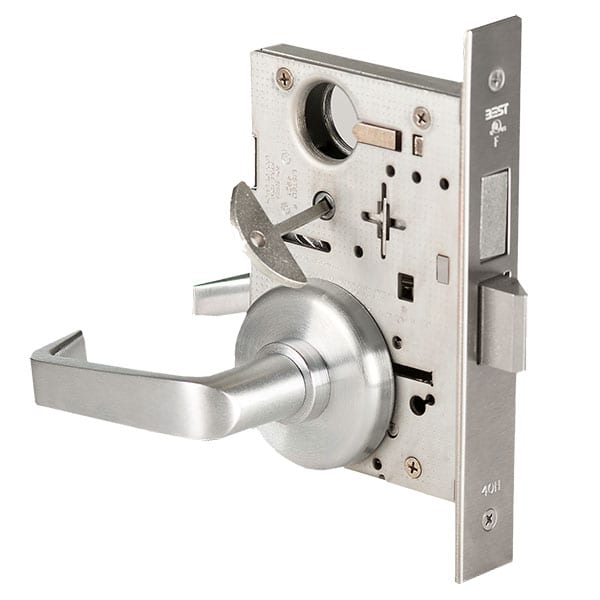

Best 45H0L Grade 1 Privacy Mortise Lock, H Rose, Non-Keyed

When you want the toughest mechanical security for your building, you want the 40H Series from BEST.

With its advanced features, improved functionality, and unique versatility, this durable mortise lock is reliable and flexible in any commercial or industrial setting.

Heavy duty in both protection and performance, the 40H is the ideal solution when strength and dependability are required. Free egress and overall security are never compromised. The 40H remains a low-maintenance product that is easy to reconfigure and easy to install.

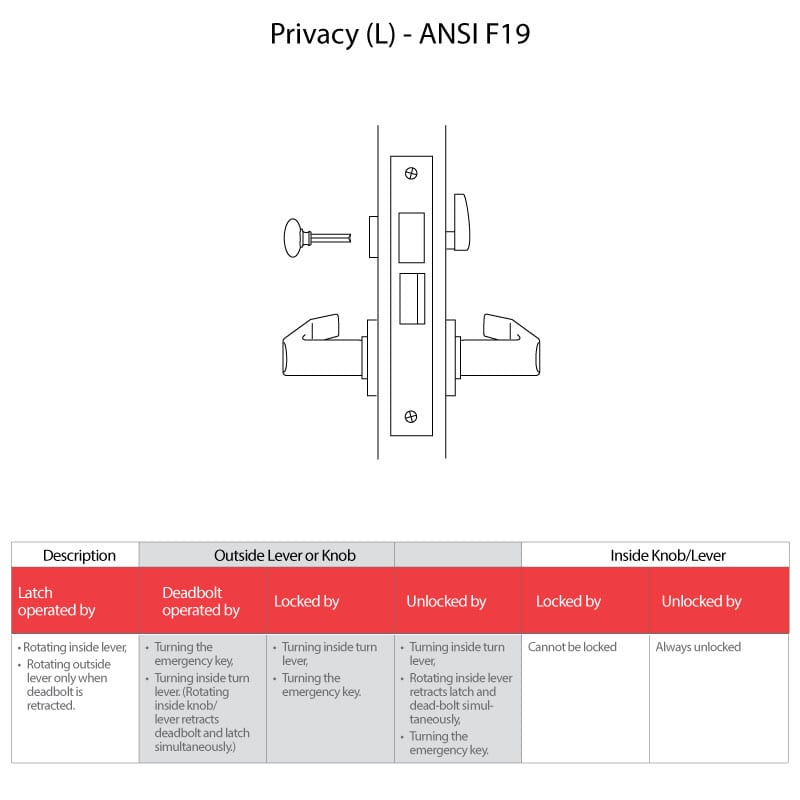

ANSI Function: F019 – (L) Privacy
Field reversible handing
H Rose: Flat w/ round edge, 2-3/4" diameter
S1 Standard strike: 4-7/8" x 1-1/4" x 3/32", non-handed, curved lip, 1-1/4" lip to center strike

made-in-usa-codes

Brand	Best
Finishes	626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 612 Satin Bronze, 613 Oil Rubbed Bronze, 625 Bright Chrome
Lever Design	15 Lever (Contour Angle, Return), 3 Lever (Solid Tube, Return), 16 Lever (Curved, No Return), 14 Lever (Curved, Return)
Rose	H – Flat w/ round edge, 2 3/4” diameter
Lock Function	Privacy
ANSI Function	F19
ANSI/BHMA Standard	ANSI/BHMA A156.13 Series1000—Grade 1
Usage	Heavy Duty
Backset	2-3/4"
Hand	Field Reverisble (Shipped as RH)
Fire-Rating	UL/cUL listed up to 3 Hours
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Case	0.095” cold rolled steel, 5 7/8” H x 7/8” D x 4 1/16” W
Latchbolt	Solid stainless steel, 3/4” throw
Deadbolt	Stainless steel, 1” throw
Door Thickness	1-3/4"
Buy American Act Compliance	Meets Buy American Act - Made in USA
