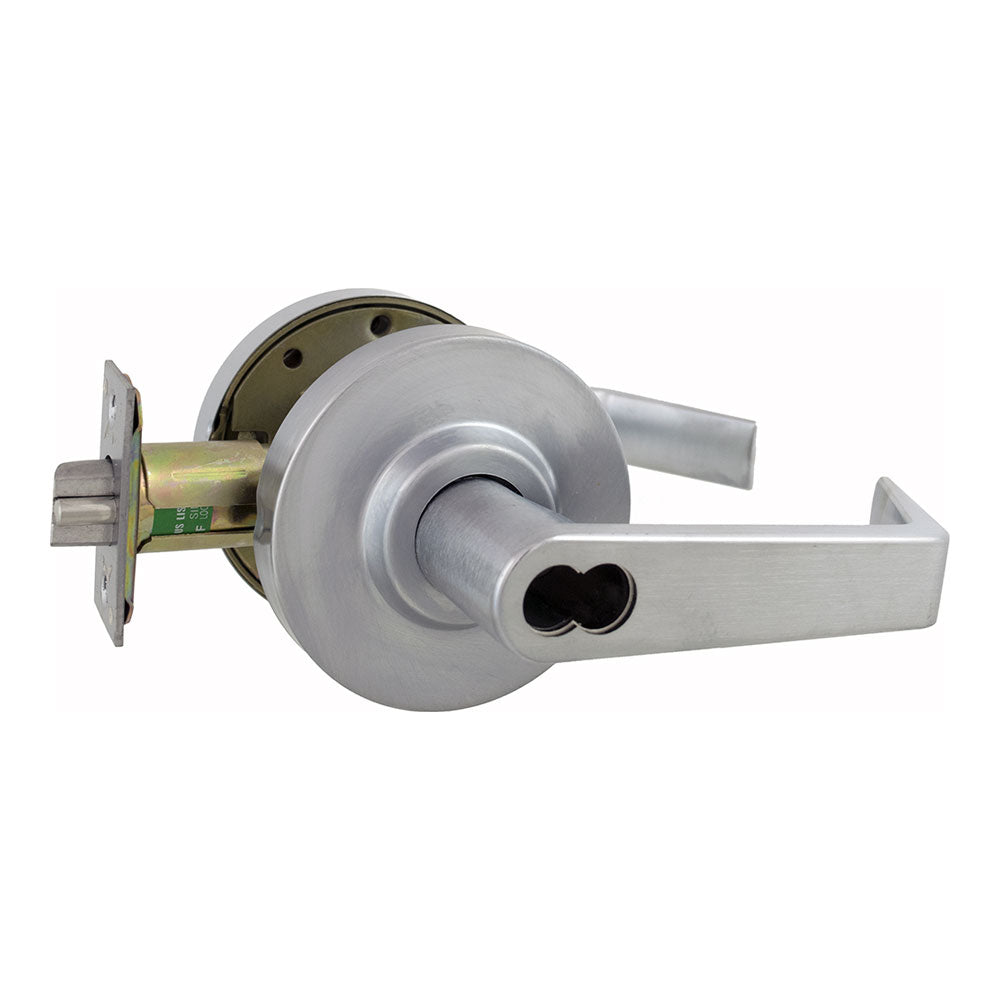

Arrow RLX87 IC Cylindrical Classroom Lever Lock, SFIC Prep

$71.12
Usually Ships:  1-2 Business Days
  • Medium-Duty, ANSI/BHMA Certified Grade 2
  • ANSI Function F84 - Classroom
  • Small format interchangeable core prep (core sold separately)

Available Options:

Clear

Product Overview

Arrow RLX87 ANSI/BHMA Grade 2 Certified Cylindrical Lock, Classroom Function, SR Sierra Lever, SFIC Prep, Less Core, 2-3/4" Backset

The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

ANSI Function F84 - Latchbolt operated by lever either side except when key outside locks outside lever. Inside lever always free. Key outside locks/unlocks outside lever only.

Lock prepared to accept 6 or 7-pin SFIC cylinder, less core

  • The RLX Series is certified to conform to the requirements of ANSI, A156.2, Series 4000, Grade 2
  • Freewheeling lever action occurs when latch retraction mechanism disengages from lever handle when handle is locked. Built-in stops in the rose insert prevent lever from traveling
    beyond approximately 45 degrees.
  • RLX Levers conform to ADA requirements
  • Removable thru-bolts standard on RLX Series

codes

Brand

Finishes

626 Satin Chrome, 613e Dark Oxidized Satin Bronze equivalent, BSP - Black Suede Powder Coat

Lock Function

Classroom

Usage

Medium Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.2, Series 4000 Grade 2

Cylinder Format

Small Format Interchangeable Core (SFIC)

Backset

2-3/4"

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Lever Design

SR Sierra

Door Thickness

1-3/8" to 1-3/4"

Fire-Rating

UL-cUL fire rated up to 3 hours

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Warranty

5 Year
