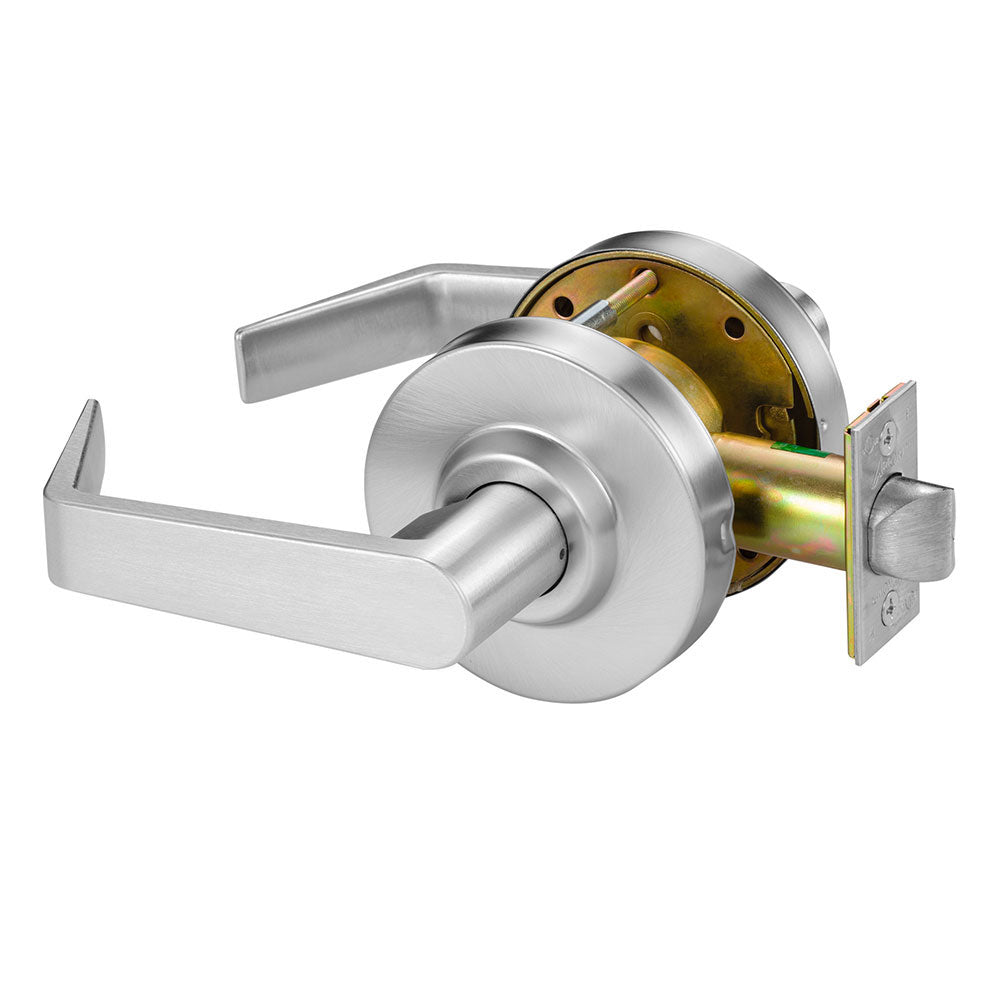

Arrow QL01 Cylindrical Passage or Closet Lever Lock

$104.33
Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ADA compliant, 3-hour fire-rated
  • Both levers always unlocked

Available Options:

Clear

Product Overview

Arrow QL01 ANSI/BHMA Grade 1 Certified Cylindrical Lock, Passage or Closet Function, SR Sierra Lever

ANSI Function F75 - Keyless - Latchbolt operated by lever either side.

  • ANSI/BHMA Grade 1 lock manufactured with high quality materials
  • Abuse resistance
  • Economical solution for ADA Compliance
  • QL Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. QL Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2 17/32" ( 4.5mm)

codes

Brand

Finishes

626 Satin Chrome, 613e Dark Oxidized Satin Bronze equivalent, BSP - Black Suede Powder Coat

Lock Function

Passage

Usage

Heavy Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.2, Series 4000 Grade 1

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

Lever Design

SR Sierra

Door Thickness

1-3/8" to 1-3/4"

Fire-Rating

UL-cUL fire rated up to 3 hours

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Warranty

10 Years
