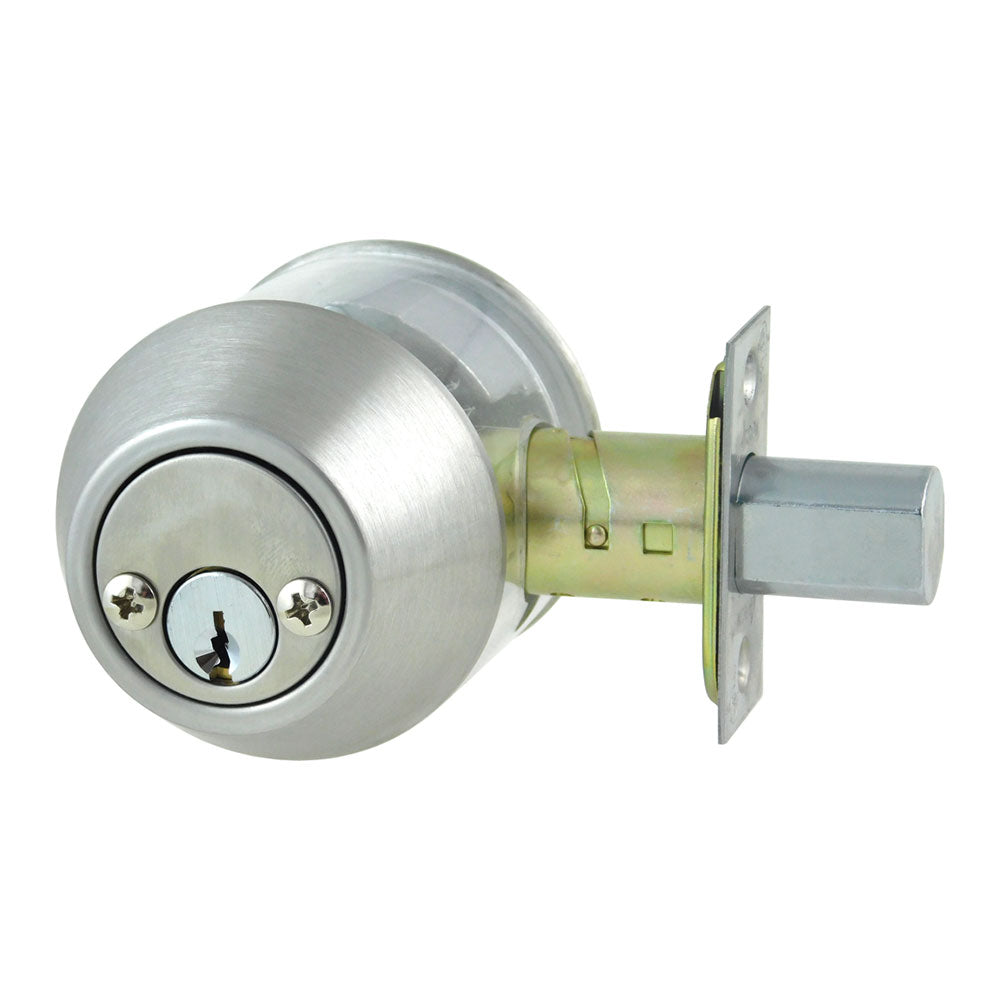

Arrow DBX62 Double Cylinder Deadbolt

$38.48
Usually Ships:  1-2 Business Days
  • Meets ANSI A156.2 Grade 2 standards
  • Double cylinder (key on both sides)
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

Arrow DBX62 Double Cylinder Deadbolt, Adjustable 2-3/8" to 2-3/4" Backset, Grade-2

The DBX Series is a Certified Grade 2 Commercial Deadbolt that features an adjustable backset in an attractive low-profile package. It is ideal for commercial common areas and residential use.

ANSI Function E0142: *Double Cylinder - Key retracts & projects Bolt from either side

*Caution: Double cylinder locks on any door are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

  • Ideal for professional deadbolt upgrades that require simple retrofits
  • Strength and durability in commercial applications
  • Adjustable backset latchbolt for 2-3/8” or 2-3/4” backset
  • Designed to meet ANSI/BHMA A156.36 Auxiliary Locks, Grade 2
  • UL-cUL Fire-Rated Up to 3 Hours
Brand

Finishes

693 Black (Powder Coated), 613e Dark Oxidized Satin Bronze equivalent, US32D (630) Satin Stainless Steel, US3 (605) Bright Brass

Deadbolt Type

Double Cylinder

ANSI Function

E0142

ANSI Grade

Meets & exceeds ANSI – A156.2, Grade 2 standards

Usage

Medium Duty

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Bolt

1" throw bolt, 1" x 2-1/4" square corner face plate. 1-1/8" latch front filler supplied standard

Backset

2-3/8" to 2-3/4" Adjustable

Strike

1-1/16" (27mm) x 2-3/4" (70mm) x 0.05" (0.13" (3mm) thick with wood frame reinforcer)

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

Door Thickness

1-3/8" to 1-3/4"

Cylinder Format

Conventional

Warranty

1 Year
