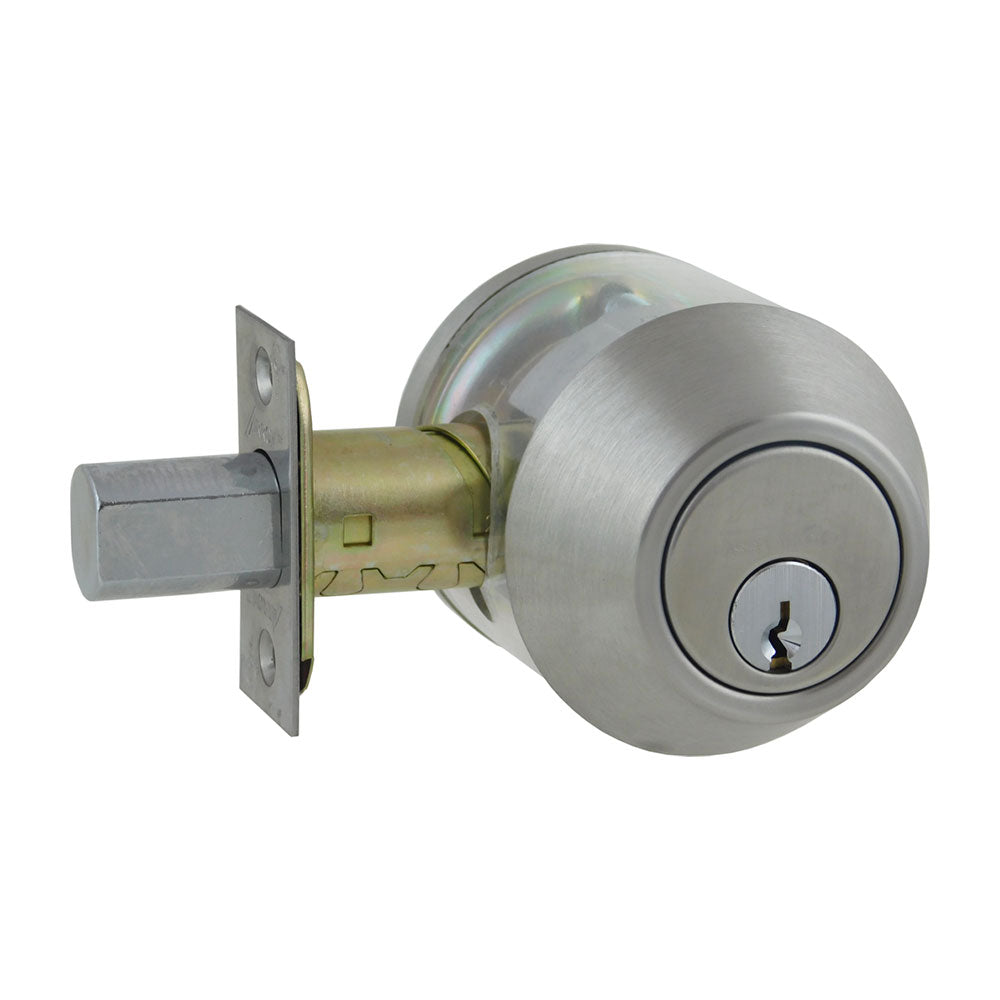

Arrow DBX61 Single Cylinder Deadbolt

$27.14
Usually Ships:  1-2 Business Days
  • Meets ANSI A156.2 Grade 2 standards

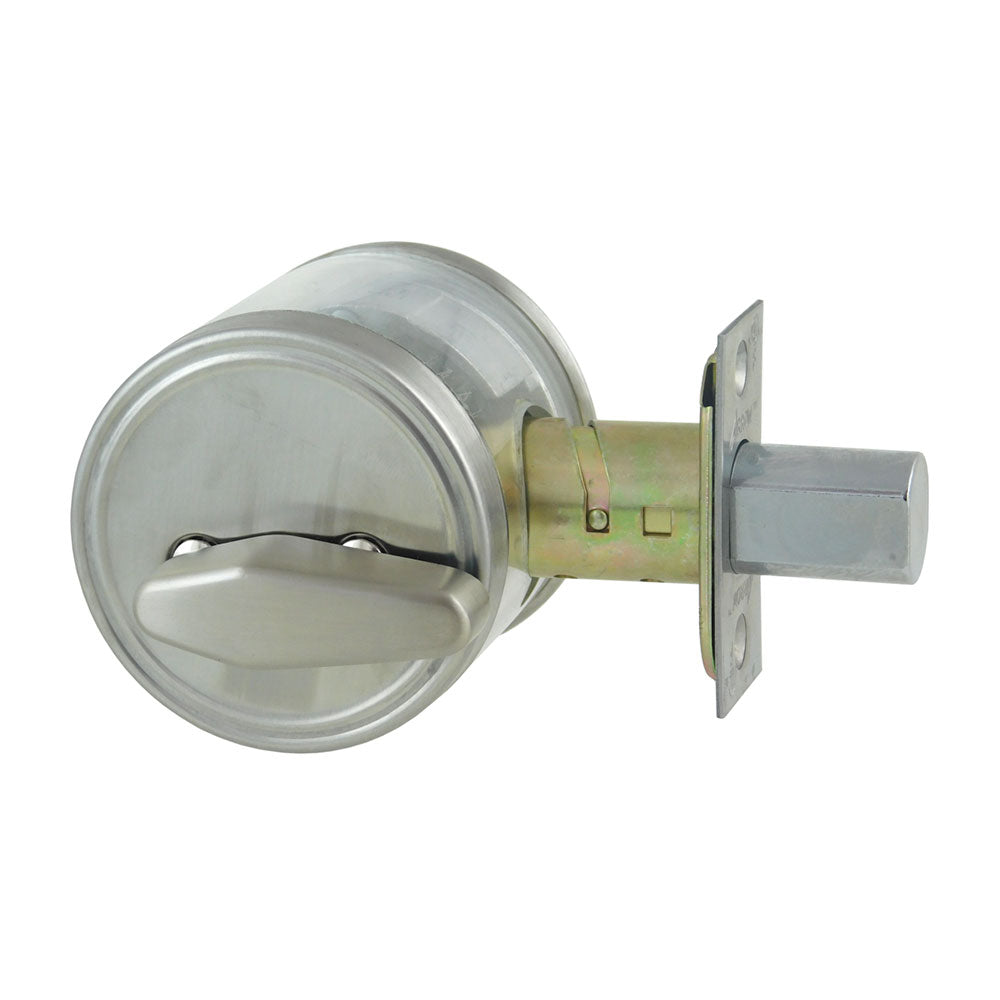

  • Single cylinder x inside turn
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

Arrow DBX61 Single Cylinder Deadbolt, Adjustable 2-3/8" to 2-3/4" Backset, Grade-2

The DBX Series is a Certified Grade 2 Commercial Deadbolt that features an adjustable backset in an attractive low-profile package. It is ideal for commercial common areas and residential use.

ANSI Function E0152: Lock or unlock by key from outside, by thumb turn from inside

  • Ideal for professional deadbolt upgrades that require simple retrofits
  • Strength and durability in commercial applications
  • Adjustable backset latchbolt for 2-3/8” or 2-3/4” backset
  • Designed to meet ANSI/BHMA A156.36 Auxiliary Locks, Grade 2
  • UL-cUL Fire-Rated Up to 3 Hours
Brand

Finishes

693 Black (Powder Coated), 613e Dark Oxidized Satin Bronze equivalent, US32D (630) Satin Stainless Steel, US3 (605) Bright Brass

Deadbolt Type

Single Cylinder

ANSI Function

E0152

ANSI Grade

Meets & exceeds ANSI – A156.2, Grade 2 standards

Usage

Medium Duty

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Bolt

1" throw bolt, 1" x 2-1/4" square corner face plate. 1-1/8" latch front filler supplied standard

Backset

2-3/8" to 2-3/4" Adjustable

Strike

1-1/16" (27mm) x 2-3/4" (70mm) x 0.05" (0.13" (3mm) thick with wood frame reinforcer)

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Thickness

1-3/8" to 1-3/4"

Cylinder Format

Conventional

Warranty

1 Year
