ALREX AXC-3D-F Concealed Free Swing Hinge

$92.88

Usually Ships: 2-3 Business Days

For use with wood, aluminum, or metal doors (1-3/4" min. thickness)
Provides seamless functionality while maintaining a sleek, hidden aesthetic
Features easy 3-Dimension adjustability

Available Options:

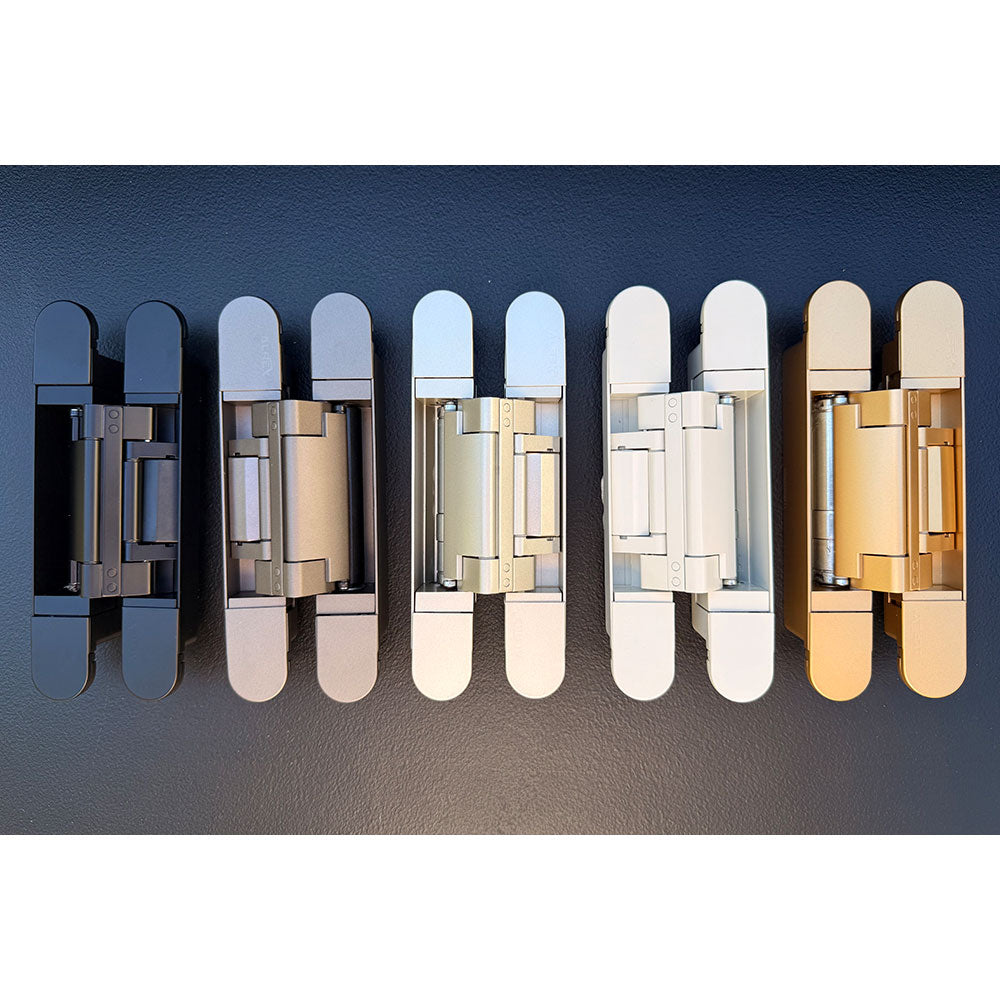

Clear

Finish
Hand

Quantity:

Added to Cart

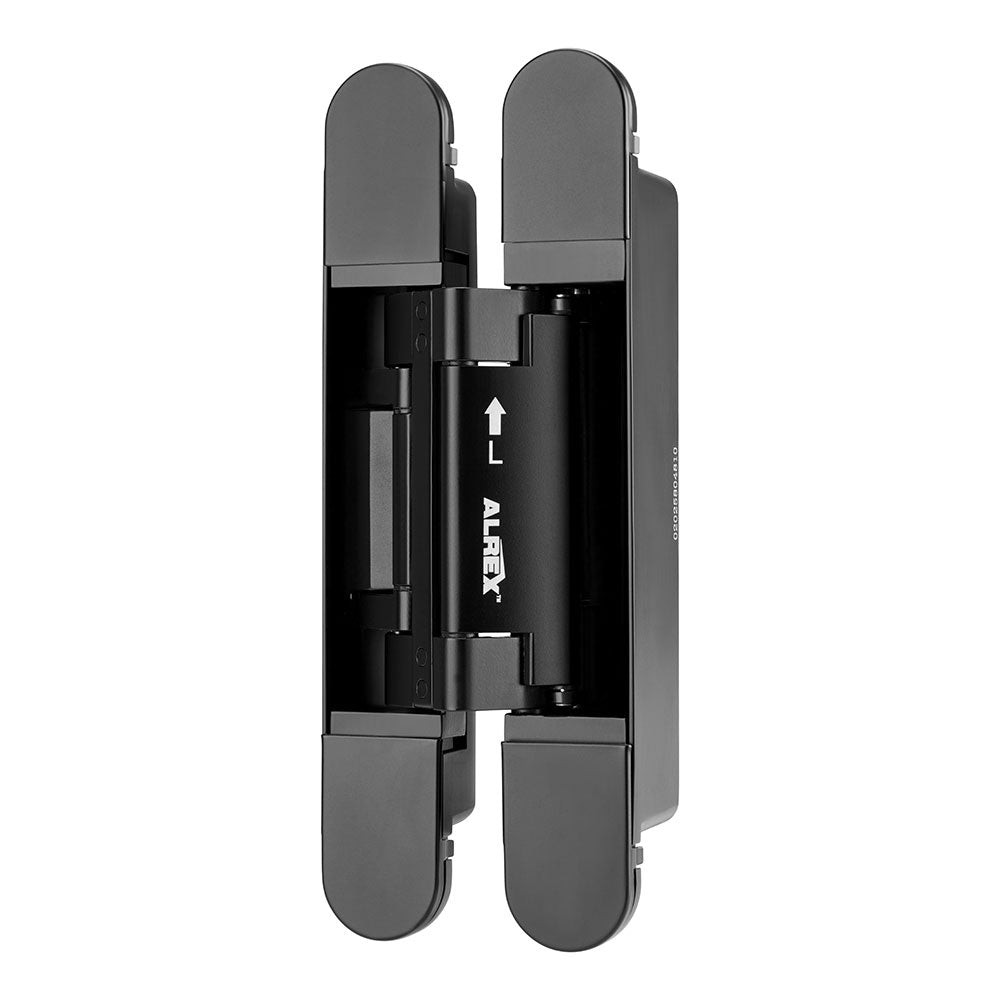

ALREX AXC-3D Adjustable Concealed Hinge

The ALREX 3D CONCEALED HW Free Swing Hinge is compatible with the ALREX 3D CONCEALED Hydraulic Door Closer Hinge. The free swing can be used in accordance with the 3D CONCEALED, adding weight bearing durability without additional closing force, but can also be used independently for non-closing applications. Designed for high-performance commercial applications, our 3D Concealed Heavy Weight Free Swing Hinge combines durability, precision, and smooth operation. The 3D Hydraulic Concealed hinge is handed.

Features

3D Adjustability: Fine-tune door alignment up/down, left/right, and front/back for a perfect fit.
5-Year Warranty: Confidence in quality and performance.
Handed: Choose the correct configuration for your specific installation.
Maximum Opening Angle: Supports up to 170° of motion for enhanced accessibility.
Extended Durability: Exceeds 500,000 cycle load tests, ensuring long-term reliability.
Heavy-Duty Strength: Precision castings support up to 220 lbs.

Applications
