ALREX AXC-2D Concealed Free Swing Hinge

$92.88

Usually Ships: 2-3 Business Days

For use with wood, aluminum, or metal doors (1-3/4" min. thickness)
Provides seamless functionality while maintaining a sleek, hidden aesthetic
Features easy 2-Dimension adjustability

Available Options:

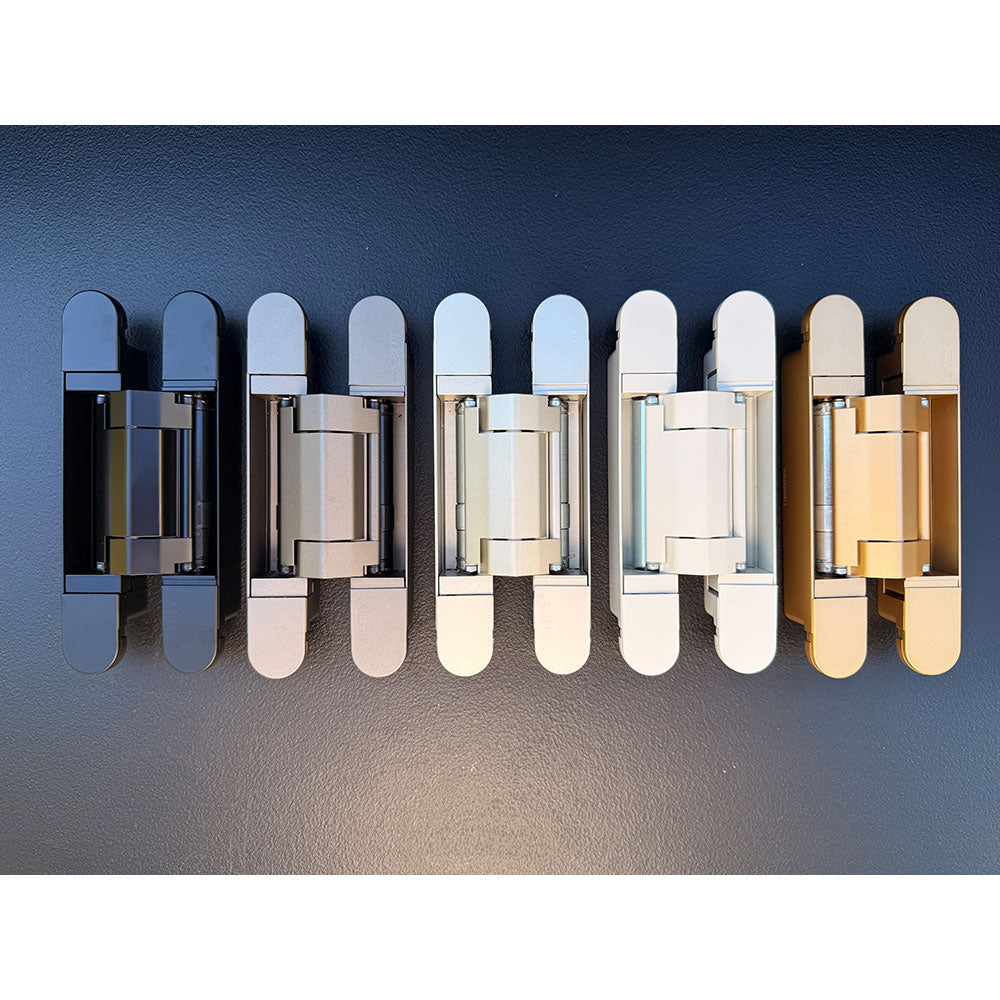

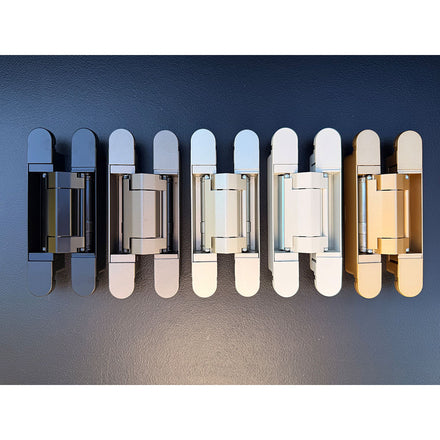

Clear

Finish

Quantity:

Added to Cart

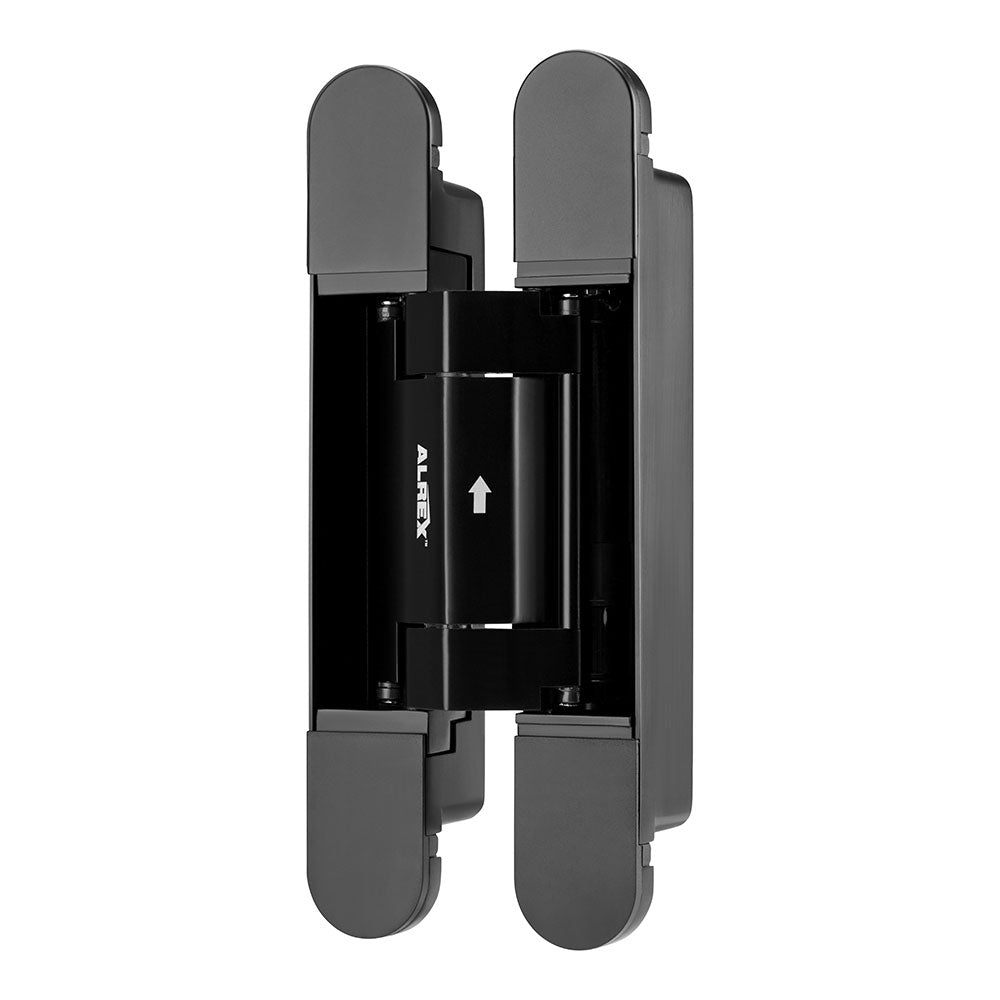

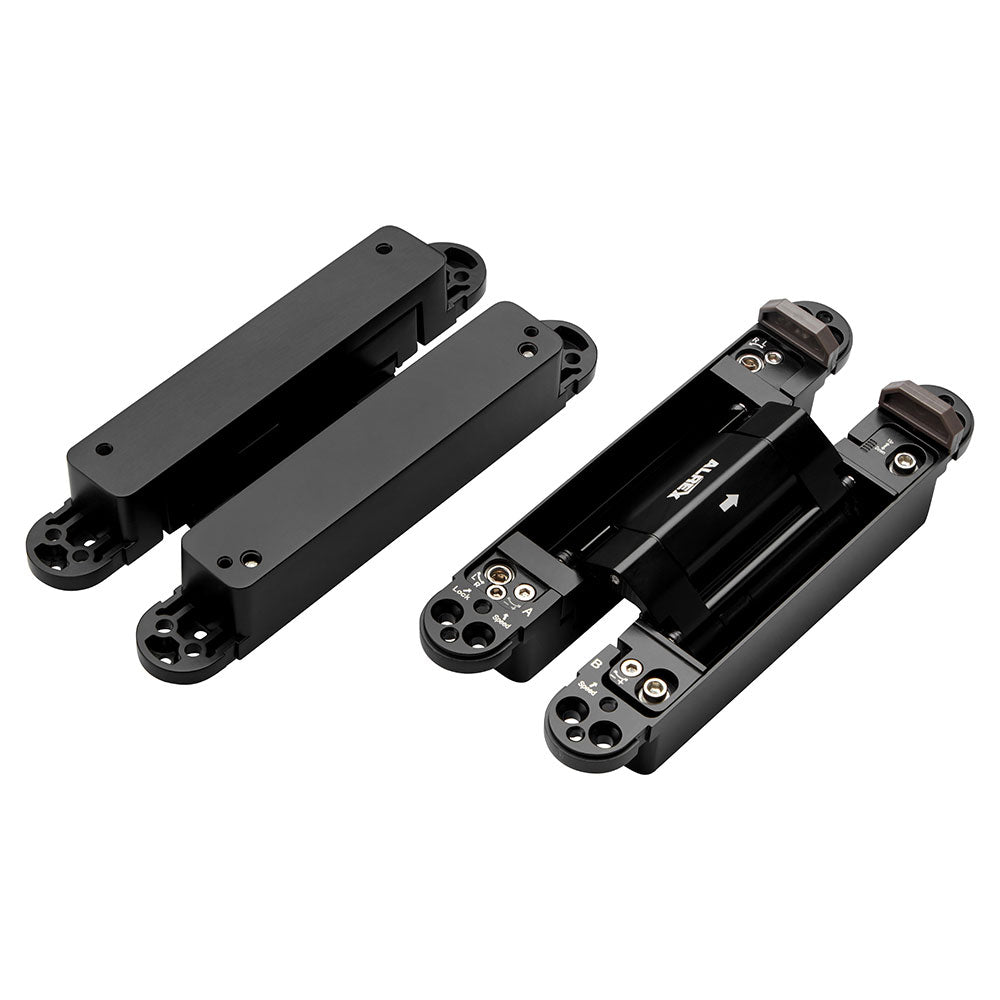

ALREX AXC-2D Adjustable Concealed Free Swing Hinge

The ALREX 2D CONCEALED HW Free Swing Hinge is compatible with the ALREX 2D CONCEALED Hydraulic Door Closer Hinge. The free swing can be used in accordance with the 2D CONCEALED, adding weight bearing durability without additional closing force, but can also be used independently for non-closing applications. Designed for high-performance commercial applications, our 2D Concealed Heavy Weight Free Swing Hinge combines durability, precision, and smooth operation. The 2D Hydraulic Concealed hinge is non-handed.

Features

Maximum Opening Angle: Supports up to 180° of motion for enhanced accessibility.
Heavy-Duty Strength: Precision castings support up to 220 lbs.
Extended Durability: Exceeds 300,000 cycle load tests, ensuring long-term reliability.
Non-Handed: Allows for universal applications.
2D Adjustability: Fine-tune door alignment up/down, and left/right, for a perfect fit.
5-Year Warranty: Confidence in quality and performance.

Applications
