Air Louvers PDVSL Vision Lite Frame with Hinged Privacy Door Cover for 3/16" to 1/4" Glass, 1-3/4" Thick Door

$131.63
Usually Ships:  20-30 Business Days
  • 20-gauge steel frame w/ 20 ga. door welded to vision lite
  • For 3/16″ to 1/4″ glass (not included)
  • For 1-3/4″ thick steel or wood doors

Available Options:

Clear

Product Overview

Add privacy to doors with this multipurpose low profile vision lite for up to 1/4” thick glazing with metal privacy door

  • Frame has countersunk mounting holes on the non-corridor side and 20 gauge door is attached by continuous hinges to one side of the lite
  • 1-1/4” trim with radius corners, mitered and welded
  • Angled door edge serves as a pull
  • Can be used as side or top opening door

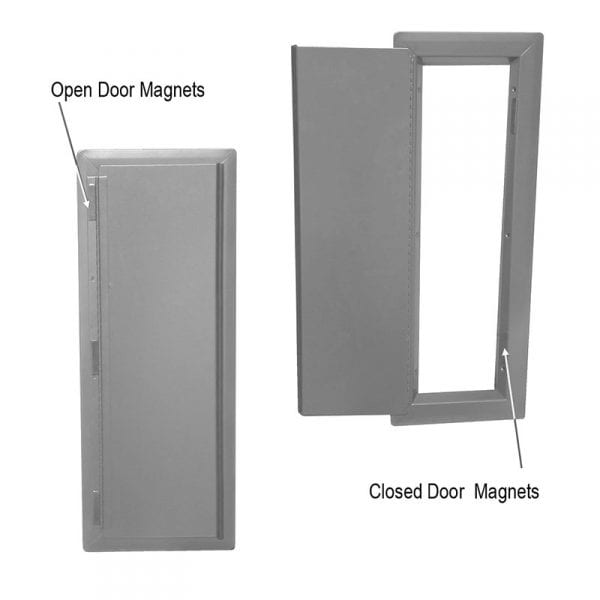

  • Magnetic catch provided to hold door in open and closed position

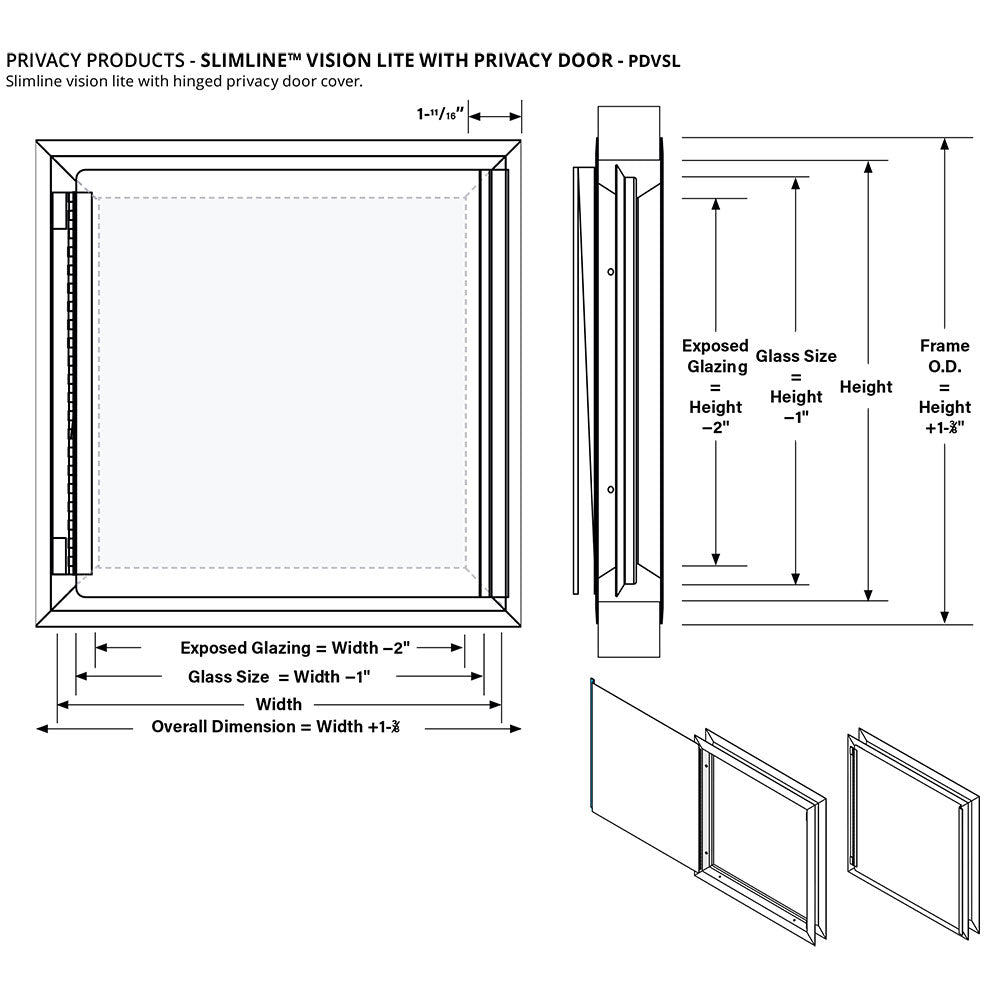

  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section.





This product is made to order and non-returnable or refundable.

Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts

Brand

Finishes

Mineral Bronze (B), Gray (G)

Order Size

12" x 12", 7" x 22", 8" x 32", 6" x 27", 5" x 35"

Construction

20 Gauge CRS frame with 20 gauge door on continuous hinges welded to vision lite

Frame Profile

Low

Frame Fire-Rating

Non-Fire-Rated

Glass Thickness

3/16" to 1/4"

Door Thickness

1-3/4"

Fasteners

#8 x 1: flathead phillips head SMS to match finish

Buy American Act Compliance

Meets Buy American Act - Made in USA
