Air Louvers

Air Louvers 900FPL Galvanized Exterior Louver with Bird Screen

$467.63
Usually Ships:  20-30 Business Days
  • 20-Gauge Steel Frame w/ 18-Gauge Blades
  • Includes Galvanized 1/4" Bird Screen
  • Galvanized Sheet Metal for Exterior Applications

Available Options:

Clear

Product Overview

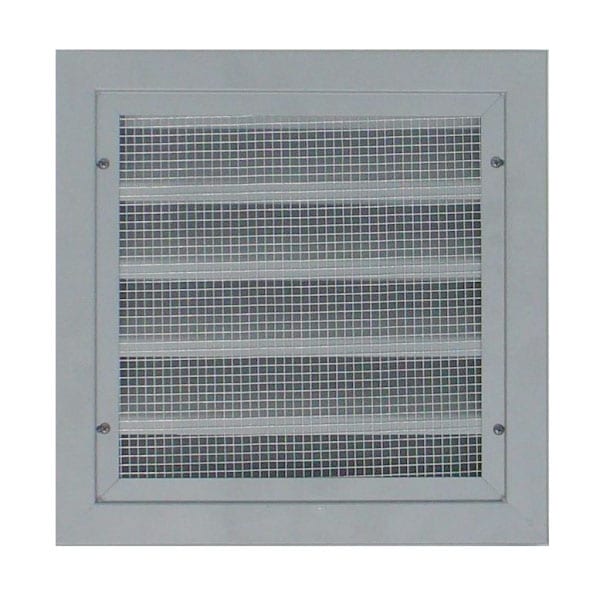

Galvanized "Z" Blade Louver with Bird Screen For Exterior Applications. No Mounting Holes Needed in the Door.

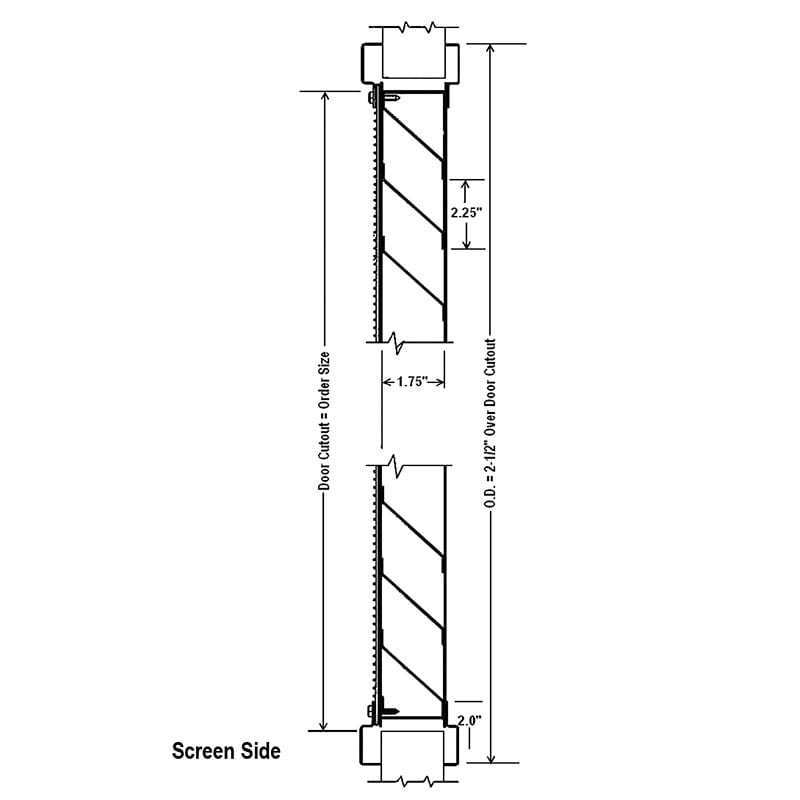

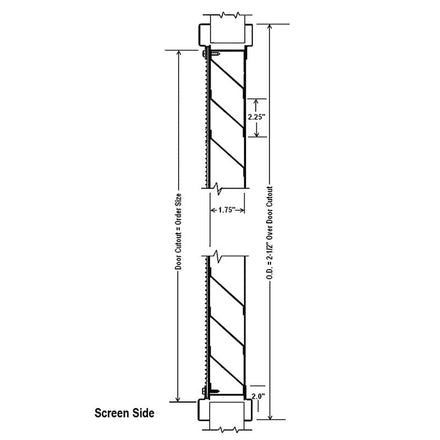

  • “Z” blades with 2-1/4” blade spacing are attached by interlocking construction to the 1-3/4” deep, welded frame
  • Non-Vision Design
  • Self-attaching with 2" trim, mitered and welded corners
  • Screws fasten through frame into louver core, leaving exterior side of frame free of fasteners
  • Galvanized sheet metal with gray powder coat finish
  • Designed for use with 1-3/4″ doors only
  • Order size is equal to door cutout size





Brand

Size

12" x 12", 18" x 12", 18" x 60", 18" x 64", 24" x 24", 24" x 64", 24" x 60", 24" x 72"

Finishes

Powdercoat Gray

Door Thickness

1-3/4"

Construction

20 gauge frame and 18 gauge blades galvanized sheet metal for exterior applications

Material

Galvannealed Steel

Free Flow Area

50% Free Area

Fasteners

#8 x 3/4" Flathead Phillips SMS - Included

Buy American Act Compliance

Meets Buy American Act - Made in USA
