Accentra (Formerly Yale)

Accentra (Formerly Yale) D292 Occupancy Indicator Deadbolt

$59.46
Usually Ships:  1-2 Business Days
  • Ideal for commercial restroom doors
  • Door bolt occupancy indicator x inside turn
  • Includes emergency release key

Available Options:

Clear

Product Overview

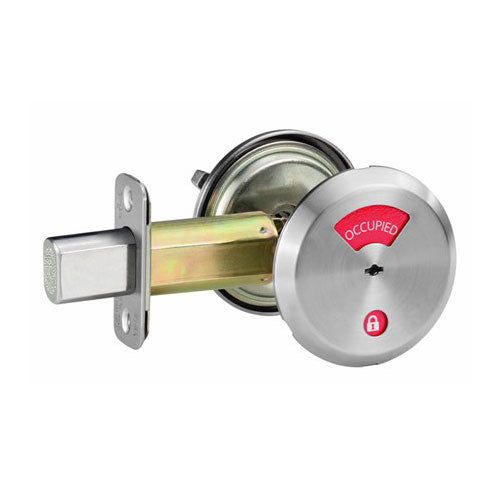

Accentra (formerly Yale) D292 Thumbturn x Indicator Deadbolt, Grade 2, 2-3/4" Backset

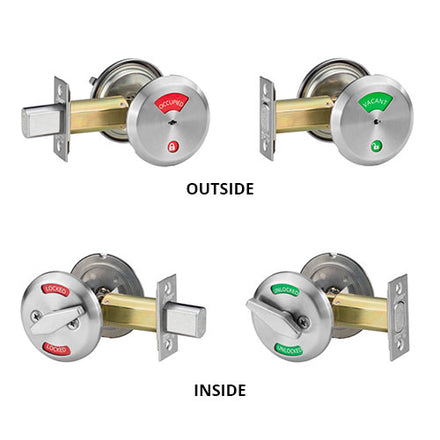

Status indicators can be used in a variety of applications and are most commonly used to identify occupancy status of a room. These deadbolts provide a bold visual indicator on both the inside and outside of the door as a standard feature to communicate the door status while providing ultimate privacy assurance.

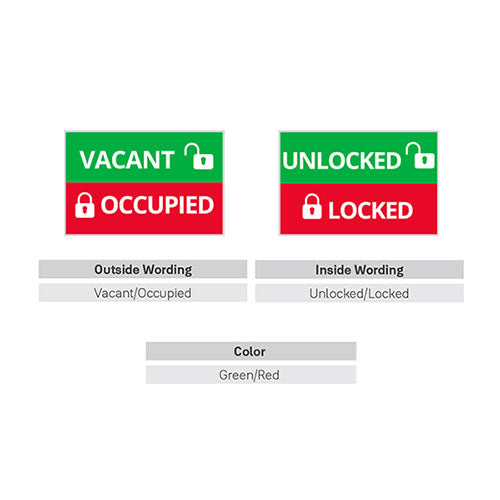

  • Outside Wording: Vacant/Occupied
  • Inside Wording: Unlocked/Locked

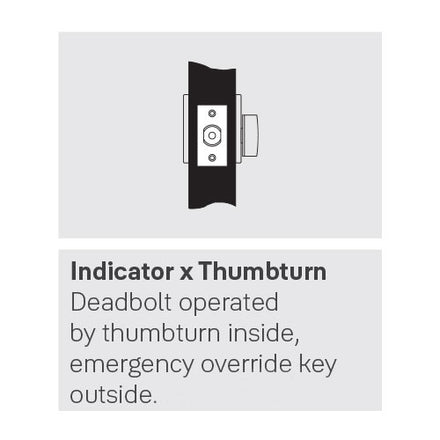

Occupancy Indicator x Thumbturn: Deadbolt operated by thumbturn inside, emergency override key outside. Outside indicator displays "In Use" when deadbolt thrown or "Vacant" when deadbolt retracted.

Typical applications:

  • Restrooms
  • Quiet rooms
  • Nursing mother’s rooms
Brand

Finishes

626 Satin Chrome, 613e Dark Oxidized Satin Bronze equivalent, BSP Black Suede Powder Coat

Deadbolt Type

Indicator

Usage

Medium Duty

Backset

2-3/4"

Bolt

1" throw bolt, 1" x 2-1/4" square corner face plate. 1-1/8" latch front filler supplied standard

Strike

1-1/8” x 2-3/4“ square corner

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Thickness

1-3/8" to 1-3/4"
