Accentra (formerly Yale) AUCN8812-2FL ANSI/BHMA Grade 1 Certified Mortise Lock, Classroom Intruder Deadbolt Function, Augusta Camden AUCN Escutcheon Lever Trim
Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

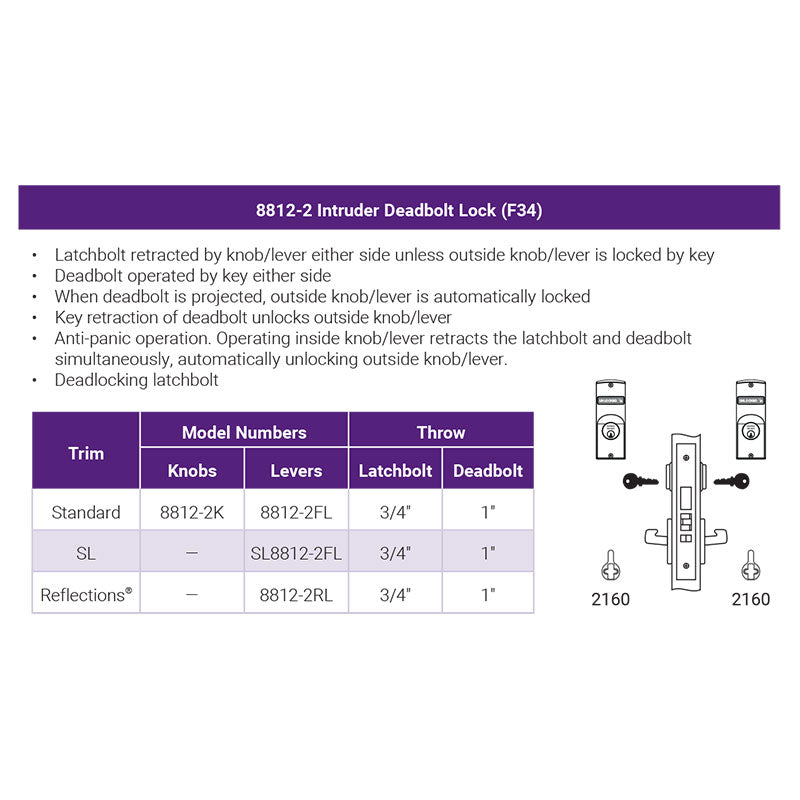

ANSI F34 – Classroom Intruder Deadbolt Lock
- Latchbolt retracted by knob/lever either side unless outside knob/lever is locked by key
- Deadbolt operated by key either side
- When deadbolt is projected, outside knob/lever is automatically locked
- Key retraction of deadbolt unlocks outside knob/lever
- Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.
- Deadlocking latchbolt
Requires or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4″
- Latchbolt: 3/4″ stainless steel throw
- Door Thickness: 1-3/4″ standard
- Reversibility: Field reversible handing
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome, 613e Dark Oxidized Satin Bronze equivalent, BSP Black Suede Powder Coat |
| Cylinder |
(2) 2153 (Para Keyway) or (2) 2553 (Schlage C Keyway) 1-1/8" Mortise Cylinder w/ 2160 Cam |
| Lock Function |
Classroom, Intruder |
| ANSI Function |
F34 |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.13, Series 1000 |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Fire-Rating |
UL and cUL Listed - up to 3 Hours |
| Handing |
Right hand is standard; Reversible in the field |
| Backset |
2-3/4" |
| Latchbolt |
3/4" throw, stainless steel one-piece anti-friction |
| Deadbolt |
Stainless steel, 1” throw |
| Strike |
4-7/8" Curved Lip Strike with a 1-1/4" lip length |
| Case |
wrought steel, zinc dichromated |
| Hubs |
3/8" solid steel, fine-blanked and heat treated for additional strength |
| Armored Front |
8" x 1-1/4" |
| Door Thickness |
1-3/4" |
| Lever Design |
AUCN (Augusta Camden) |
| Warranty |
10 Years |
