Accentra (Formerly Yale)

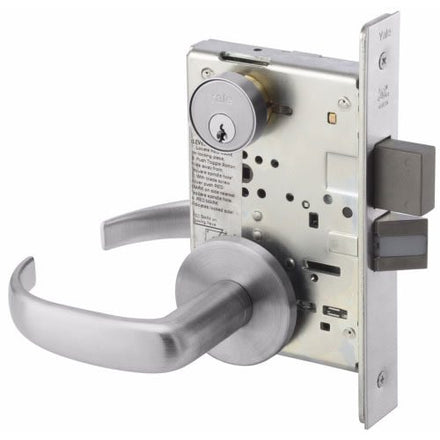

Accentra (Formerly Yale) PBR 8822FL Dormitory/Exit Mortise Lock with Pacific Beach Lever, Standard Rose

$392.47
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • ANSI Function: F13 – Dormitory/Exit
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear
Added to Cart

Product Overview

Accentra (formerly Yale) PBR8822FL ANSI/BHMA Grade 1 Certified Mortise Lock, Dormitory/Exit Function, Sectional Pacific Beach PBR Lever/Rose Trim

Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

ANSI F13 – Dormitory/Exit – Latchbolt retracted by lever either side. Deadbolt operated by key outside and thumbturn inside. When the deadbolt is projected, outside lever is automatically locked. Anti-panic operation. Operating inside lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside lever.

Requires Yale 2153 or 2553 1-1/8″ Mortise Cylinder w/ 2160 Cam

  • ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL-cUL: UL/cUL fire rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Stainless steel
  • Backset: 2-3/4″
  • Latchbolt: 3/4″ stainless steel throw
  • Door Thickness: 1-3/4″ standard
  • Reversibility: Field reversible handing

codes

Brand

Finishes

626 Satin Chrome, 613e Dark Oxidized Satin Bronze equivalent, BSP Black Suede Powder Coat

Cylinder

2153 (Para Keyway) or 2553 (Schlage C Keyway) 1-1/8" Mortise Cylinder w/ 2160 Cam

Lock Function

Dormitory

ANSI Function

F13

Usage

Heavy Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.13, Series 1000

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL and cUL Listed - up to 3 Hours

Handing

Right hand is standard; Reversible in the field

Backset

2-3/4"

Latchbolt

3/4" throw, stainless steel one-piece anti-friction

Deadbolt

Stainless steel, 1” throw

Strike

4-7/8" Curved Lip Strike with a 1-1/4" lip length

Case

wrought steel, zinc dichromated

Hubs

3/8" solid steel, fine-blanked and heat treated for additional strength

Armored Front

8" x 1-1/4"

Door Thickness

1-3/4"

Lever Design

PBR (Pacific Beach)

Warranty

10 Years
