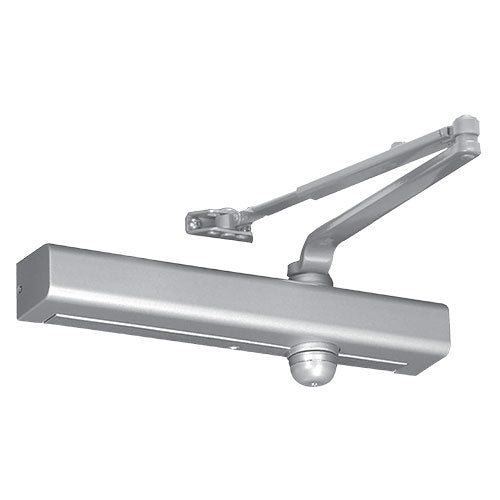

Accentra (formerly Yale) 3301 Architectural Door Closer, Tri-Packed (Regular, Parallel, Top Jamb Mount), Non-Hold Open, Size 1-6, Slim Cover

3000 Series architectural door closers offer the perfect combination of reliability, appearance, and durability in today's market. With features such as staked valves, self-drilling, and tapping screws, rack and pinion design, precise valve adjustment, and a complete range of arm and cover options, the 3000 can meet virtually any application challenge.

Features

  • Includes slim cover
  • ADA compliant
  • Exceeds 25 million cycles
  • Cast aluminum body
  • Adjustable spring sizes 1 through 6
  • Tri-packed: regular, parallel, and top jamb mounting
  • Non-handed
  • Staked valves

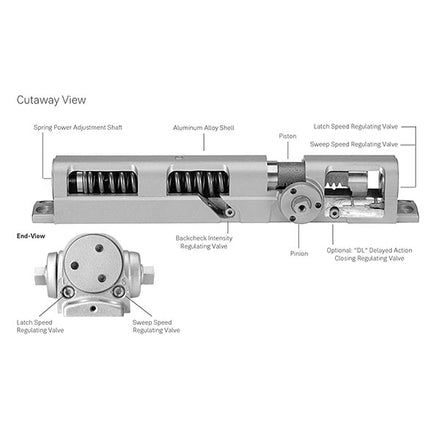

  • Rack and pinion design
  • Separate and independent latch, sweep, and backcheck intensity valves
  • The product is manufactured in an ISO 9001, ISO 14001 facility.





Brand

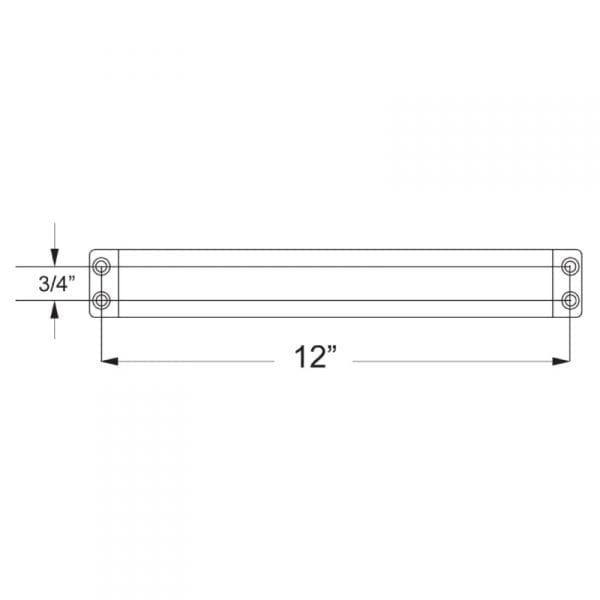

Templating (Hole Pattern)

3/4" x 12"

Finishes

690 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated)

Usage

Medium Duty

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

Fire-Rating

UL Listed - UL10c compliant for positive pressure

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non-Handed

Cover

Slim Cover

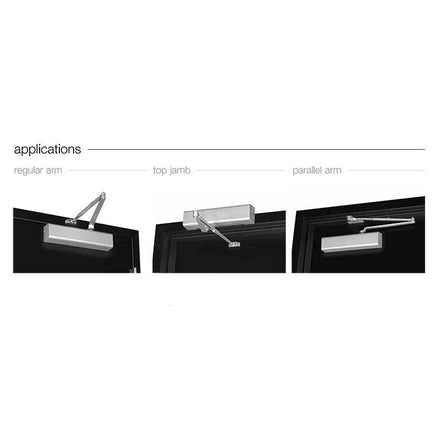

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Door Applications

Hollow Metal, Wood or Aluminum

3301 Door Closer
Accentra (Formerly Yale) 3301 Door Closer
