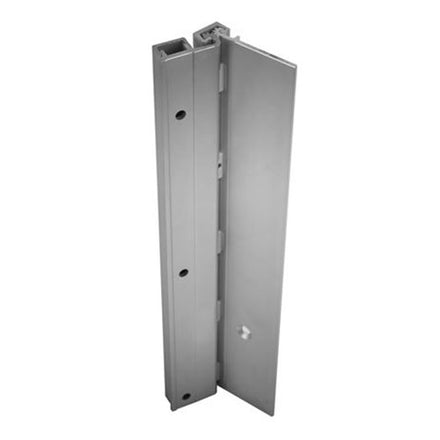

ABH A520HD Heavy Duty Half Mortise Continuous Geared Hinge

$209.15
Usually Ships:  3-5 Business Days
  • 5/64" door inset
  • Fire-rated up to 90-minutes
  • Supports weights up to 450lbs

Available Options:

Clear

Product Overview

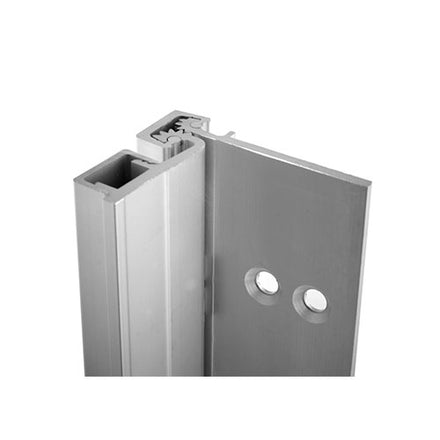

ABH A520HD Aluminum Continuous Gear Hinges Half Mortise

  • Half Mortise, Heavy Duty

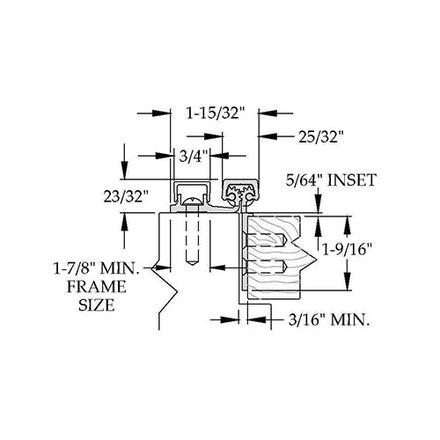

  • 5/64" Door Inset
  • 48" door width maximum
  • 450 lbs. door weight maximum
  • Fasteners: 12-24 X 3/4" undercut self drilling, thread forming tek machine screws
  • Standard Lengths: 79", 83", 85", *95"
  • Approved for use on metal swinging type fire doors rated up to and including 90 minutes
  • Approved for use on wood swinging type fire doors rated up to and including 60 minutes

*Oversize handling fee applies (added at checkout)

Brand

Finish

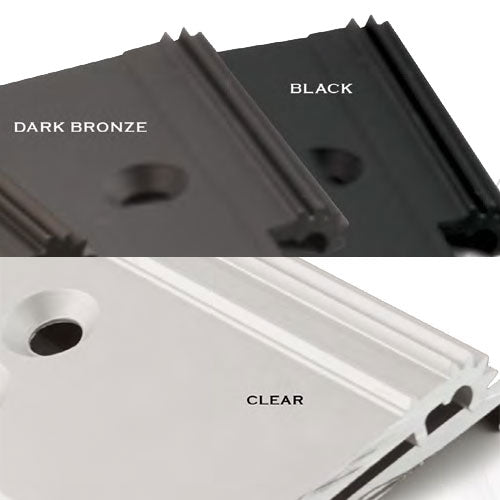

Anodized Aluminum, Black, Dark Bronze

Length

83" (for 7'0" door), 79" (for 6'8" door), 85" (for 7'2" Door), 95" (for 8'0" door)

Material

Aluminum

Fire-Rating

Approved for use on metal swinging type fire doors rated up to and including 90 minutes, Wood doors up to 60 minutes

Continuous Hinge Type

Half Mortise

Usage

Heavy Duty

Buy American Act Compliance

Meets Buy American Act - Made in USA
