Product Overview

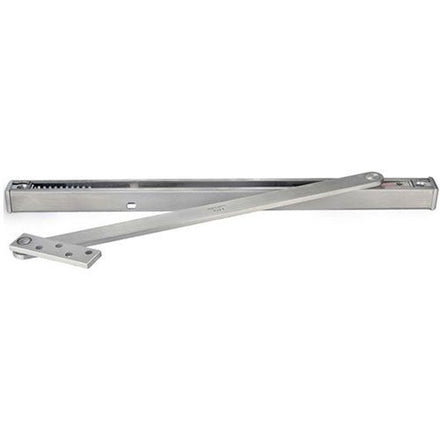

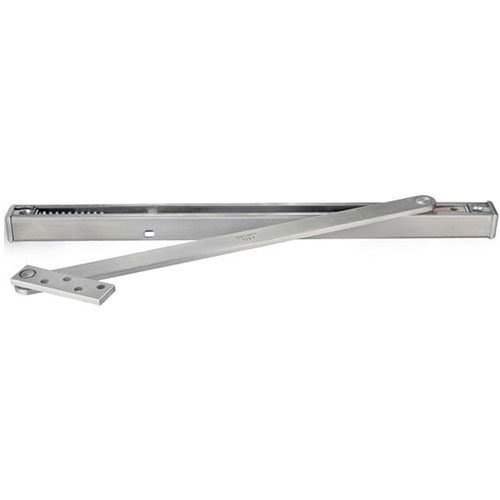

ABH 1000 Series Concealed Mount Overhead Stop, Heavy Duty
- Concealed Mount
- Heavy Duty
- Stop function (no hold open)
- Singe or Double acting doors
- Non-handed
- For Interior or exterior use on frequent traffic and heavyweight doors
- Standard installation from 85° to 110° of opening (5° increments)
- Shock absorbing spring provides 3° to 5° cushion before dead-stop
- 1-3/4" minimum door thickness
- UL Listed as Miscellaneous Fire Door Accessories for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours

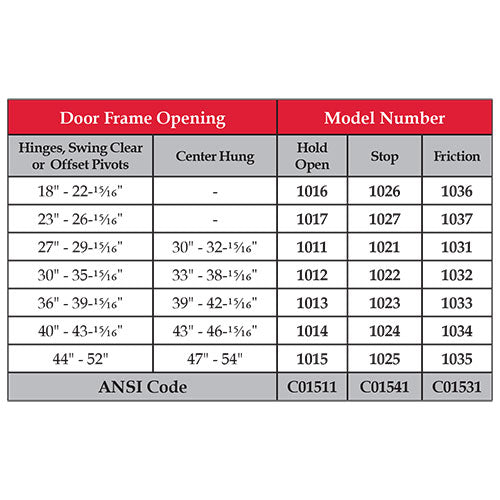

Models: 1021, 1022, 1023, 1024, 1025, 1026, 1027
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel |
| Function |
Stop |
| Mouting Style |
Concealed Mount |
| Handing |
Non-Handed |
| Usage |
Heavy Duty |
| Fire-Rating |
UL Listed up to 3 hours (stop function only) |
| ANSI/BHMA Standard |
C01541 |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
