Norton

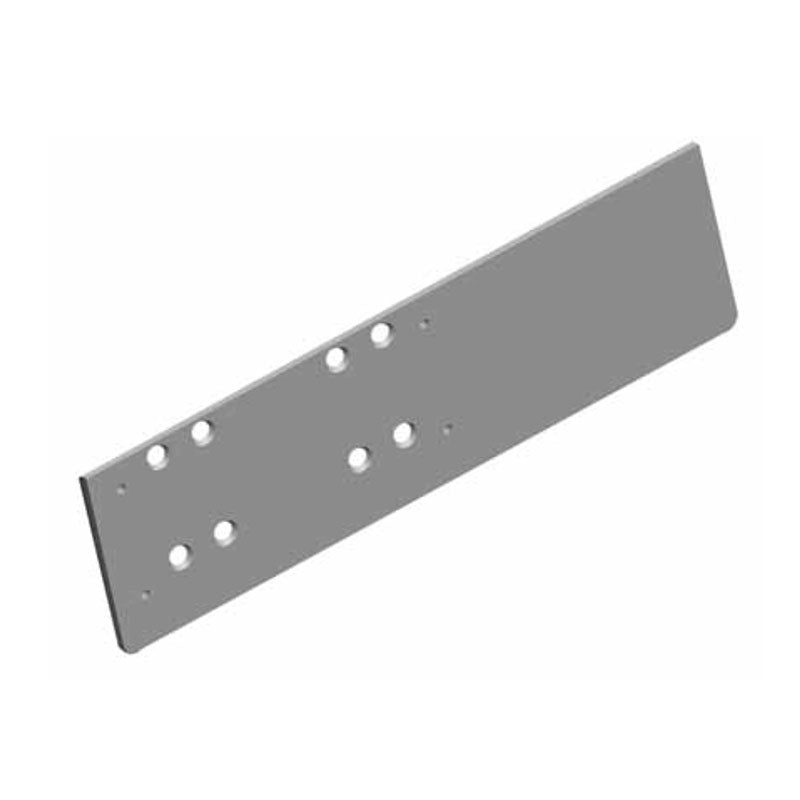

Norton 7500 x RP75-4040 Door Closer with LCN 4040XP Retrofit Plate

$340.73
Usually Ships:  10-20 Business Days
  • Heavy-Duty, ANSI/BHMA A156.4, Grade 1 certified
  • Tri-packed: Regular, top jamb, or parallel arm mount
  • Replaces LCN 4040 closers without modifying the existing hole pattern in the door

Available Options:

Clear

Product Overview

Norton 7500 x RP75-4040 Grade 1 Tri Mount Door Closer, Push or Pull Side, Size 1 to 6, Full Plastic Cover, Includes LCN 4040XP Retrofit Plate

The 7500 Series is a robust, multi-sized surface closer designed to deliver superior performance and long-term reliability. Ideal for interior or exterior doors in facilities that demand reliability, such as government, healthcare, educational institutions, and other commercial buildings.

  • The retrofit plates allow the 7500 door closers to replace LCN 4040 closers without modifying the
    existing hole pattern in the door
  • Tri-Style® packaging for regular, top jamb or parallel arm mounting
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Exceeds 25 million cycles
  • Non-handed
  • Rack-and-pinion design
  • Cast aluminum body
  • Stacked valves

Certifications

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire-rated doors
  • UL10C listed for positive pressure fire test
  • Designed to comply with requirements for the Americans with Disabilities Act (ADA) and ANSI standard A117.1
  • This product is manufactured in an ISO 9001 facility

codes

Brand

Finishes

689 Aluminum (Powder Coated), 690 Statuary Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), BSP - Black Suede Powder Coat, WSP - White Suede Powder Coat

Templating (Hole Pattern)

2-3/8" x 6-3/4", 2-1/4" x 5"

Usage

Heavy Duty

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours

Cover

Full Cover

Handing

Non-Handed

Door Application

Hollow Metal or Wood

Warranty

30 Years

RP75-4040_Adapter_Plate_Regular_or_Parallel_Arm_Retrofit_to_replace_LCN_4040_Installation_Instructions Norton-7500-Series-Door-Closer-Tri-Style-Regular-Parallel-Top-Jamb-Installation-Instructions Loading... Loading...
