Pemko TBS250A Series Through-Bolt Sliding Door Hardware System

Pemko TBS250A Series Through-Bolt Sliding Door Hardware System

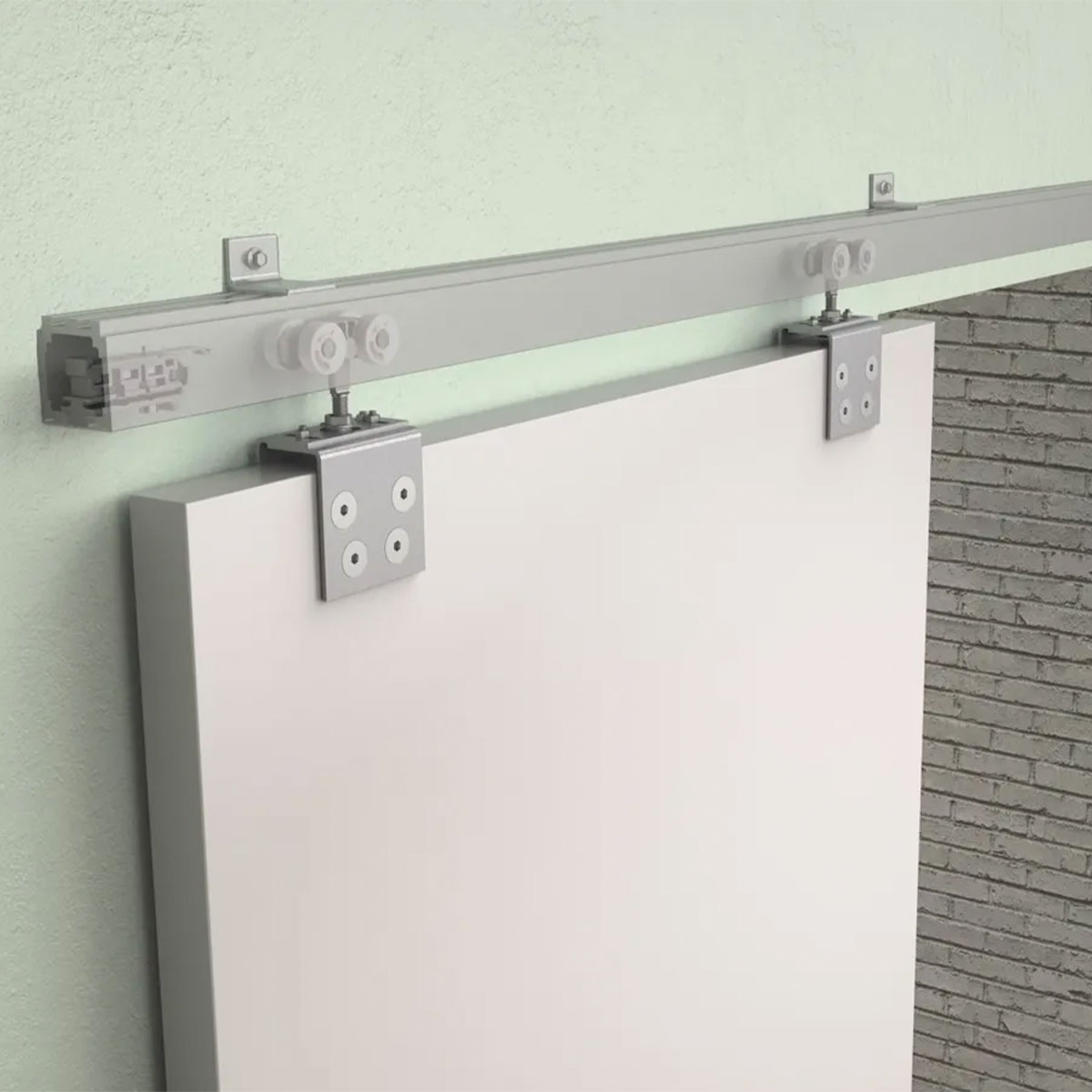

The TBS250 Series Through-Bolt Sliding Hardware System is designed for wood or metal doors up to 250 pounds and can be overhead or side wall mounted with track lengths of 6, 8,10,12, and 16ft. It’s an ideal solution when your door is made of alternative materials, including metal, fiberglass, and aluminum. This system, which is also suitable for wood doors, features an auto centering apron that equally distributes the weight of the door while the through-bolts negate the need for a substantial top rail.

Features

• Through-bolted hardware
• For doors up to 250 lbs
• Auto-centering apron
• Suites with Rockwood door pulls and other Accessories Group products
• Requires less than 5 lbs. of force to operate
• Hanger apron (53B/APRON) and bottom guide (ADJ-BG) are paintable galvannealed steel
• New surface bottom guide included

Benefits

• Ideal for use with metal, fiberglass, and aluminum doors, Negates need for substantial top rail, No modification required on hollow metal doors for a sliding application
• Durable system designed for a range of doors
• Equally distributes the weight of the door, Easy installation
• Complements modern decor and open interiors
• Meets ADA push force requirements
• Can paint components to match the color of the door
• Eliminates need for guide channel and roller guides

Specifications

• Base Material: Aluminum
• Door Stop Type: Standard Stop
• Door Type: Metal, Wood
• Hanger Material: Steel
• Maximum Door Weight: 250lbs.
• Maximum Door Width: 96″
• Minimum Door Width: 36″
• Maximum Door Thickness: 2″
• Minimum Door Thickness: 1 3/8″
• Maximum Track Length: 16′
• Minimum Track Length: 6′
• Panel Configuration: Bi-parting, Single
• Mounting Location: Overhead Mount, Side Wall Mount
• Wheel Type: Solid Nylon

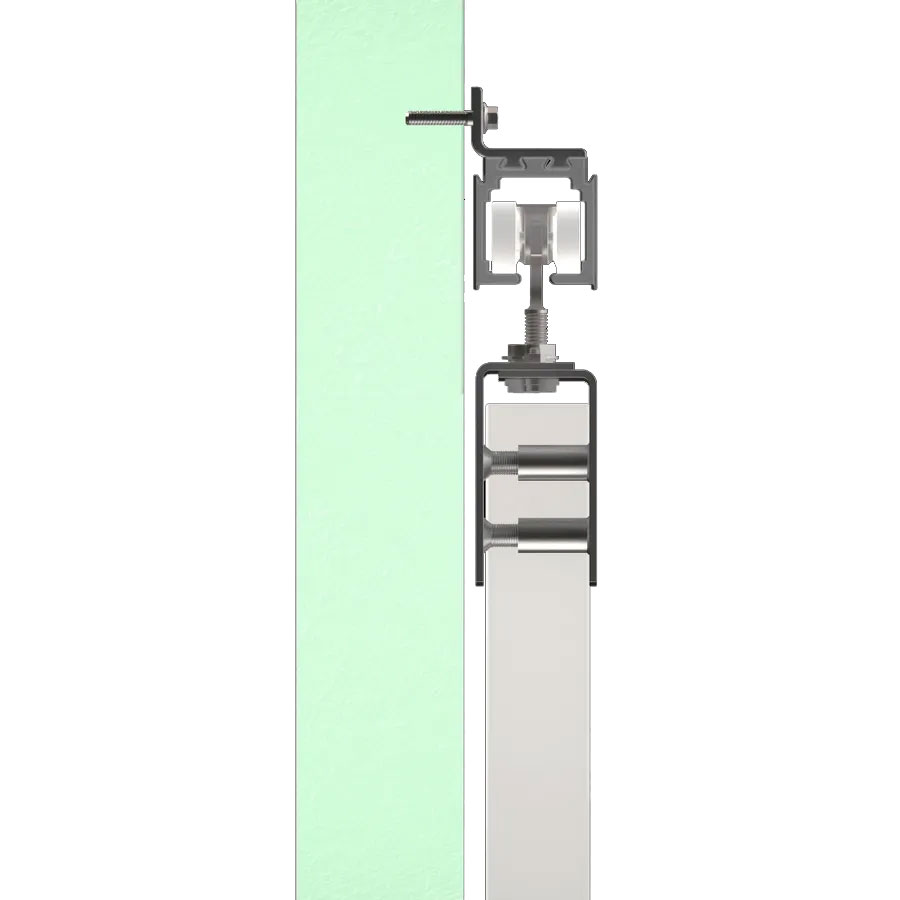

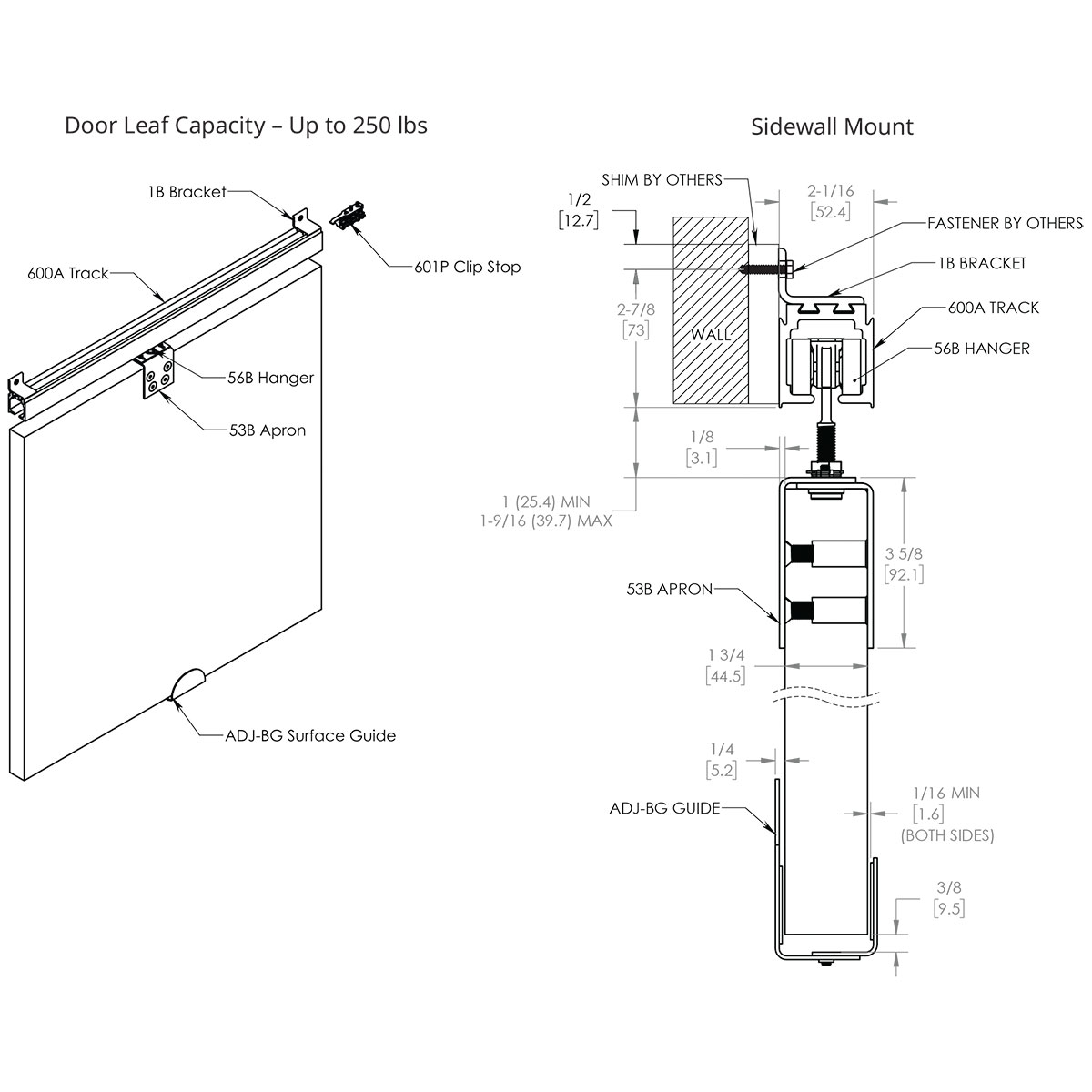

TBS250A-SW Side Wall Mounted Kit Components

• 2 – 56B Hangers: Gray Nylon Body, Zinc Coated Steel Pendant Bolt, Steel Ball Bearing Nylon Wheels
• 1B Side Wall Mount Track Brackets (One at each end and no more than 3 feet in between)
• 2 – 601P Nylon In-Track Clip Stop
• 2 – 53B/APRON Mounting Brackets Thru-bolted
• 1 – ADJ-BG Surface Type Guide
• 1 – 600A Mill Finished Aluminum Track

TBS250A-OH Overhead Mounted Kit Components

• 2 – 56B Hangers: Gray Nylon Body, Zinc Coated Steel Pendant Bolt, Steel Ball Bearing Nylon Wheels
• 2 – 53B/APRON Mounting Brackets Thru-bolted
• 1 – ADJ-BG Surface Type Guide
• 2 – 601P Nylon In-Track Clip Stop
• 1 – 600A Mill Finished Aluminum Track

Recommended Applications

• Office Spaces
• Sport Venues
• Casinos
• Hospitality
• Retail
• Museums
