Pemko

Pemko DSG-FT-06 Flat Track Sliding Door Hardware System for Wood Doors

$1,139.18
Usually Ships:  5-10 Business Days
  • For sliding wood panels up to 500 lbs.
  • Perfect for use in high-end commercial properties such as offices and hotels
  • 6' or 8' track lengths

Available Options:

Clear

Product Overview

Pemko DSG-FT-06 Designer Series Flat Track Sliding Door Hardware System for Wood Doors

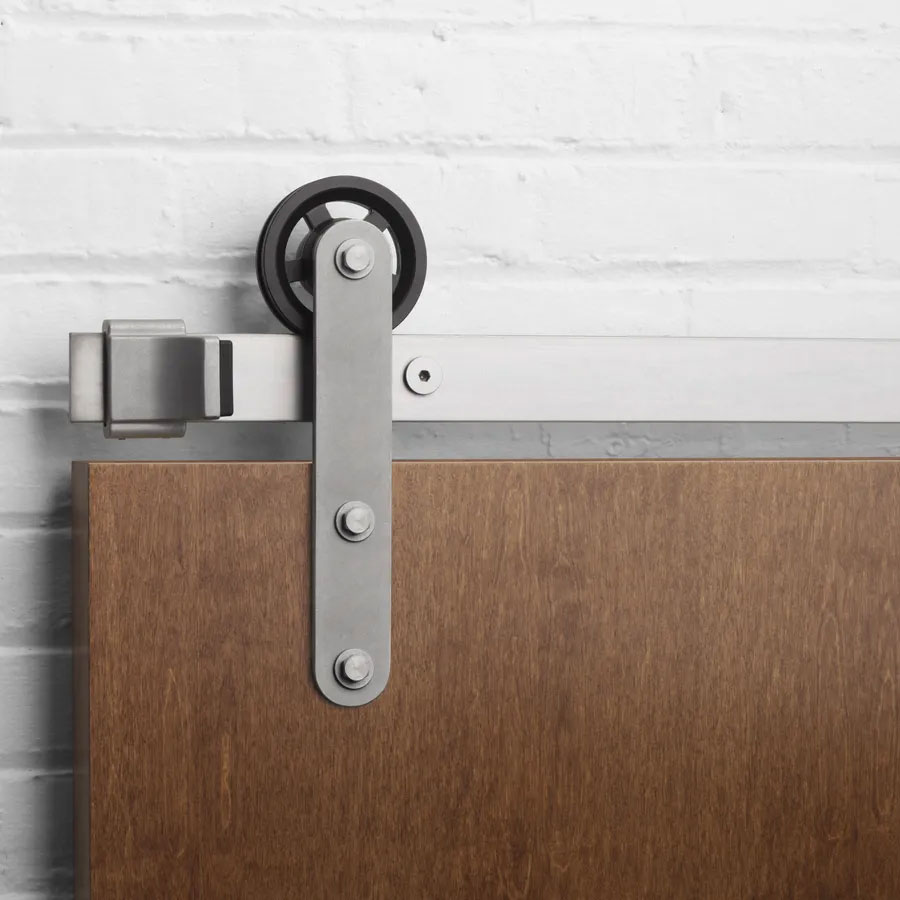

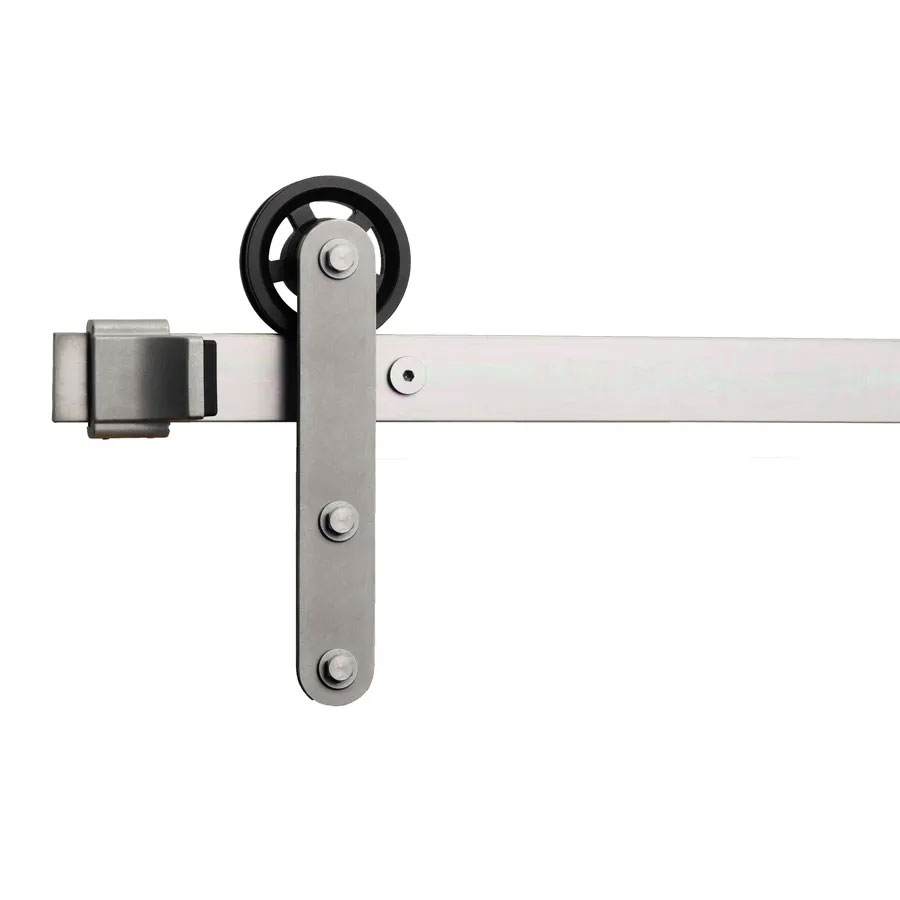

The DSG-FT-06 Designer Series is a robust and decorative sliding door system with a modern look and feel. These systems, which are designed for wood doors up to 500 lbs per panel or 240 lbs with soft close, and feature a spoked wheel, are perfect for use in high-end commercial properties such as offices and hotels. It's offered in single and bi-parting configurations for side wall mount installation only.

  • A robust and decorative sliding door system with a modern look and feel
  • Designed for wood doors up to 500 lbs.
  • For 1 1/2" to 2 1/4" thick Doors Only
  • Face mount hanger design
  • Coordinating spoked wheel for all finishes except Stainless Steel (solid wheel)
  • Side wall mount

DSG-FT-06 Kits Include:

  • 2 - DSG-78 Anti-Rise Blocks
  • 2 - DSG-12-_ Steel Track Stops Mounting Hardware
  • 7 to 9 - DSG-100_ Steel Track Brackets
  • 2 - DSG-06_ Steel Mount Top Hangers
  • 1 - DSG-FT_/_ Steel Flat Track
  • 1 - DSG-106 Mortised Type Roller Guide
  • 7 to 9 - DSG-89_ Steel Track Fasteners
Brand

Finishes

IS - Industrial Steel Zinc Coated Steel, SS – Satin Stainless Steel, BSP - Black Suede Powder Coat

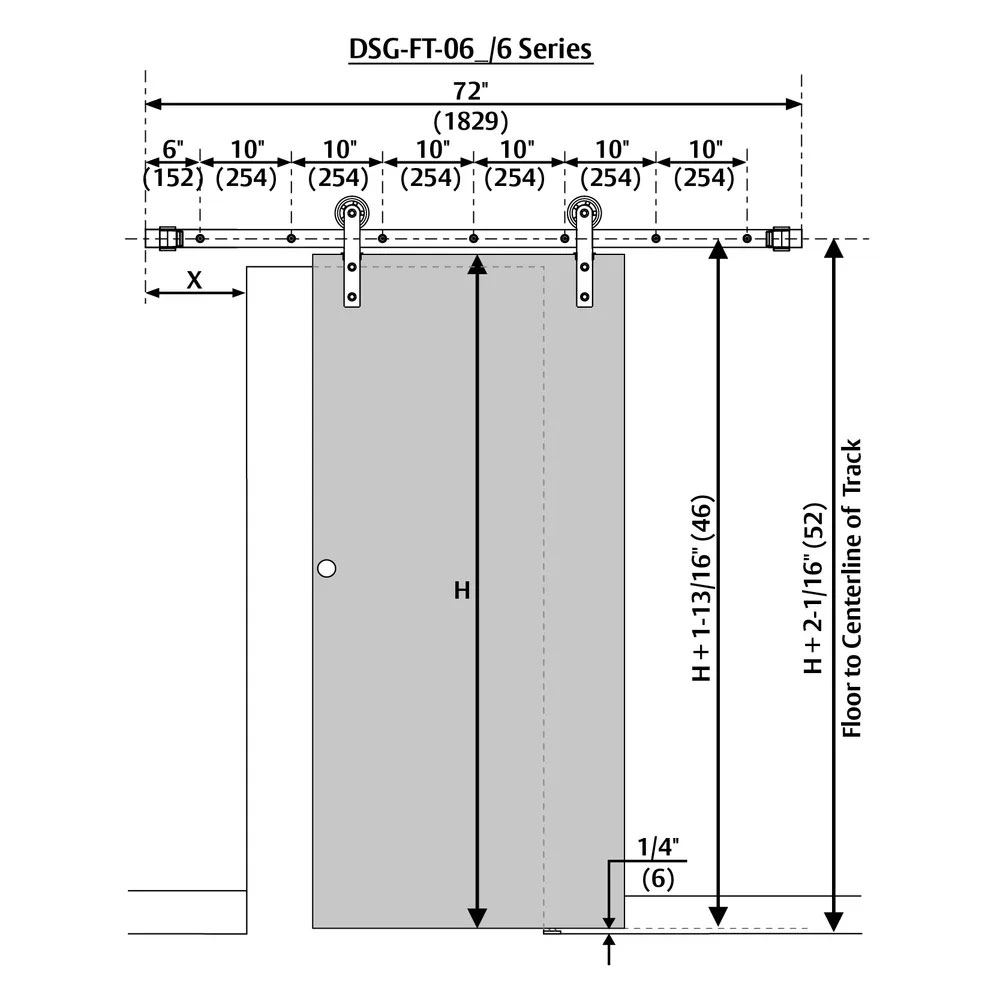

Track Length

72" (for 36" door), 96" (for 48" door)

ANSI/BHMA Standard

ANSI/BHMA 156.14
