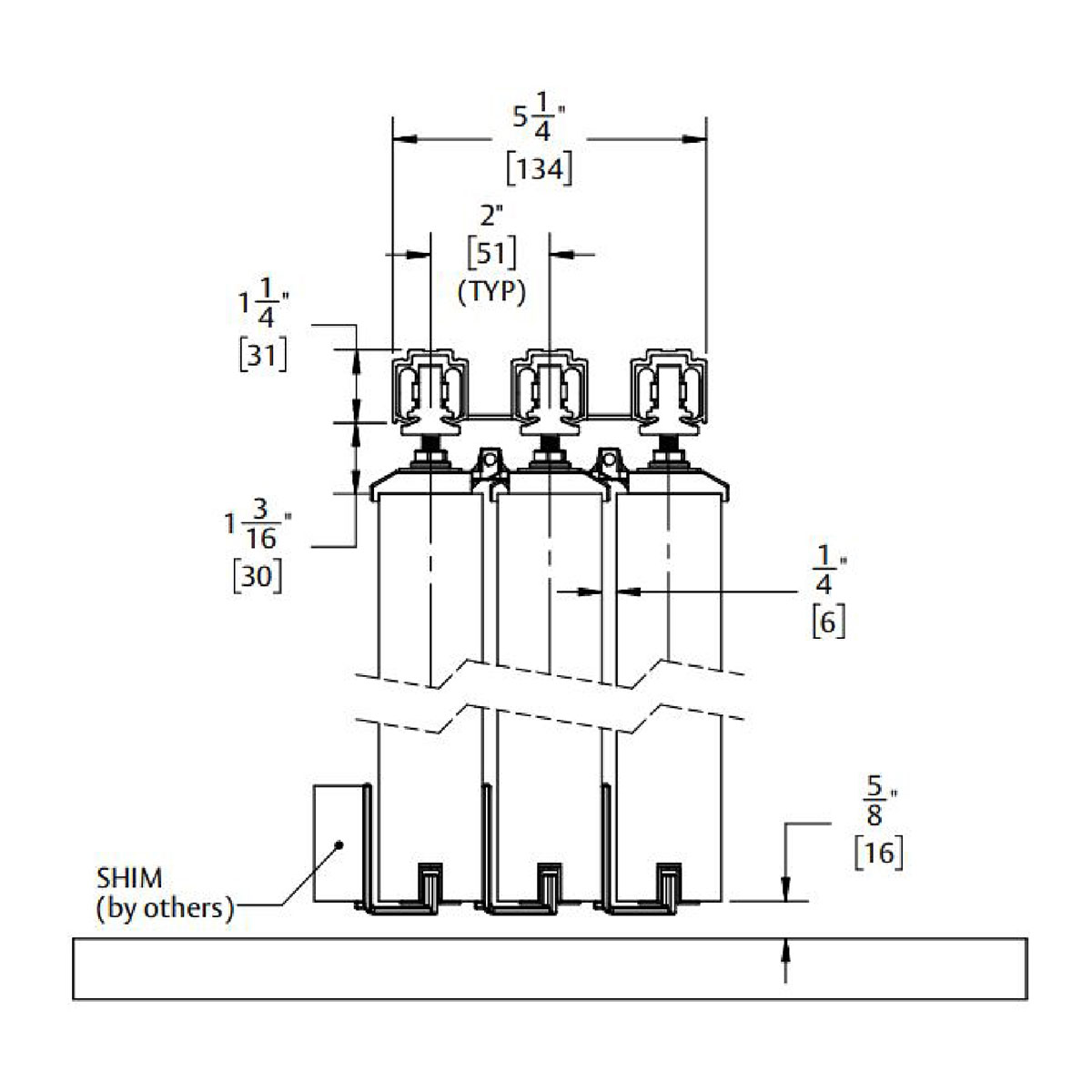

pemko_cas200a_pocket_straight_sliding_system_dimensional_drawing

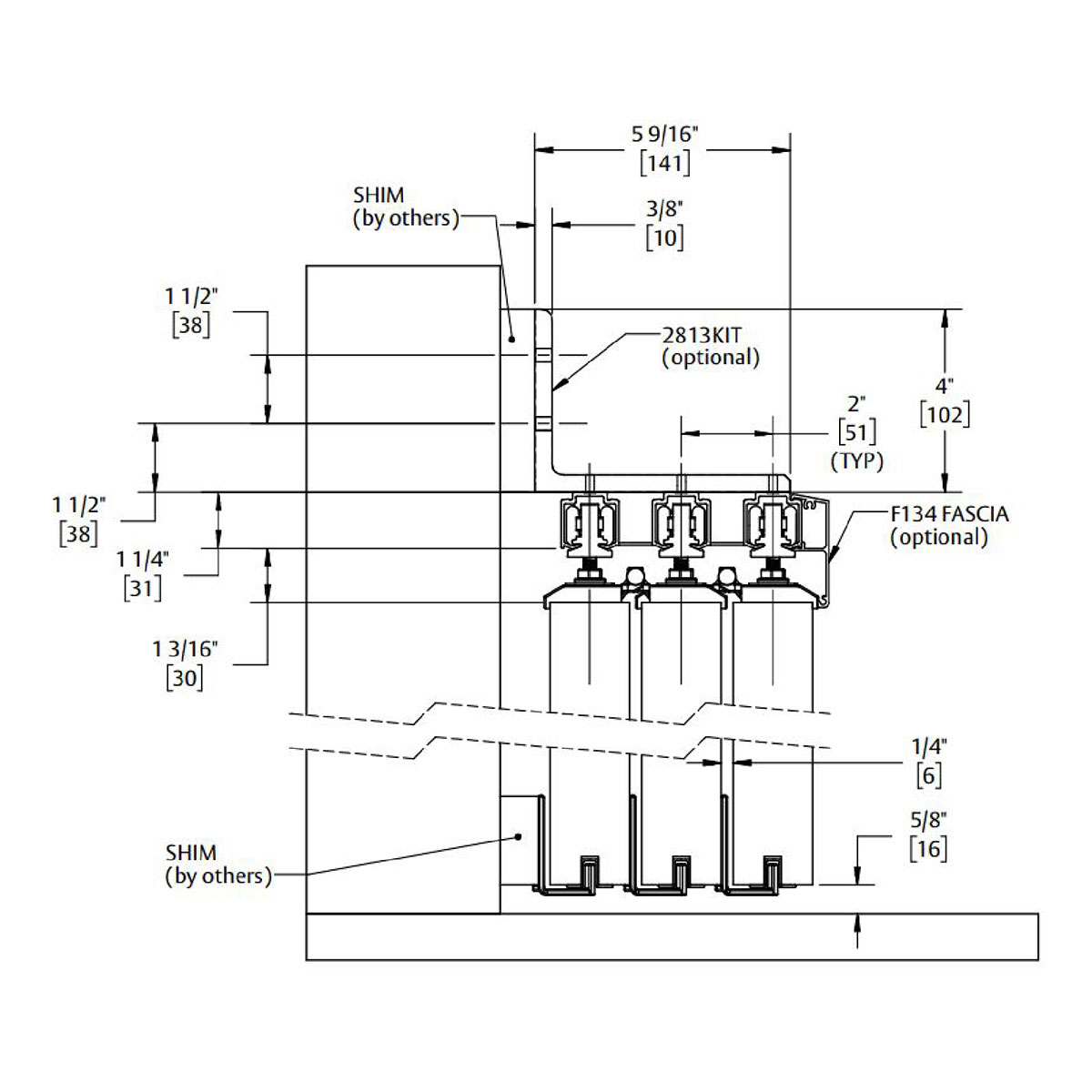

pemko_cas200a_side_wall_mounted_track_straight_sliding_system_dimensional_drawing

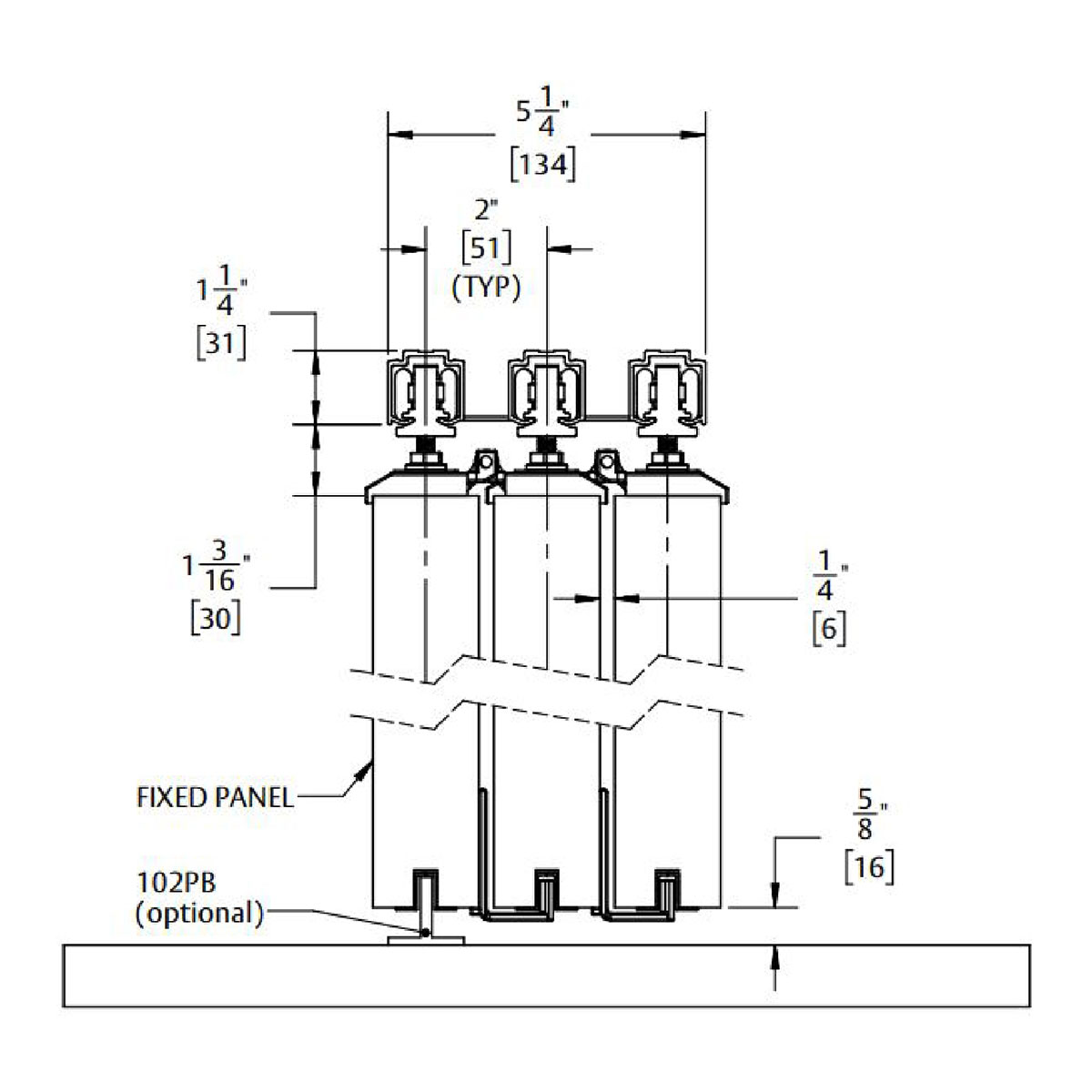

pemko_cas200a_cased_opening_straight_sliding_system_dimensional_drawing

Pemko CAS200A Cascading Sliding Door Kit

Usually Ships: 5-10 Business Days

Used to section off parts of a room
Easy to install due to self-aligning components on 1-3/4″ thick doors

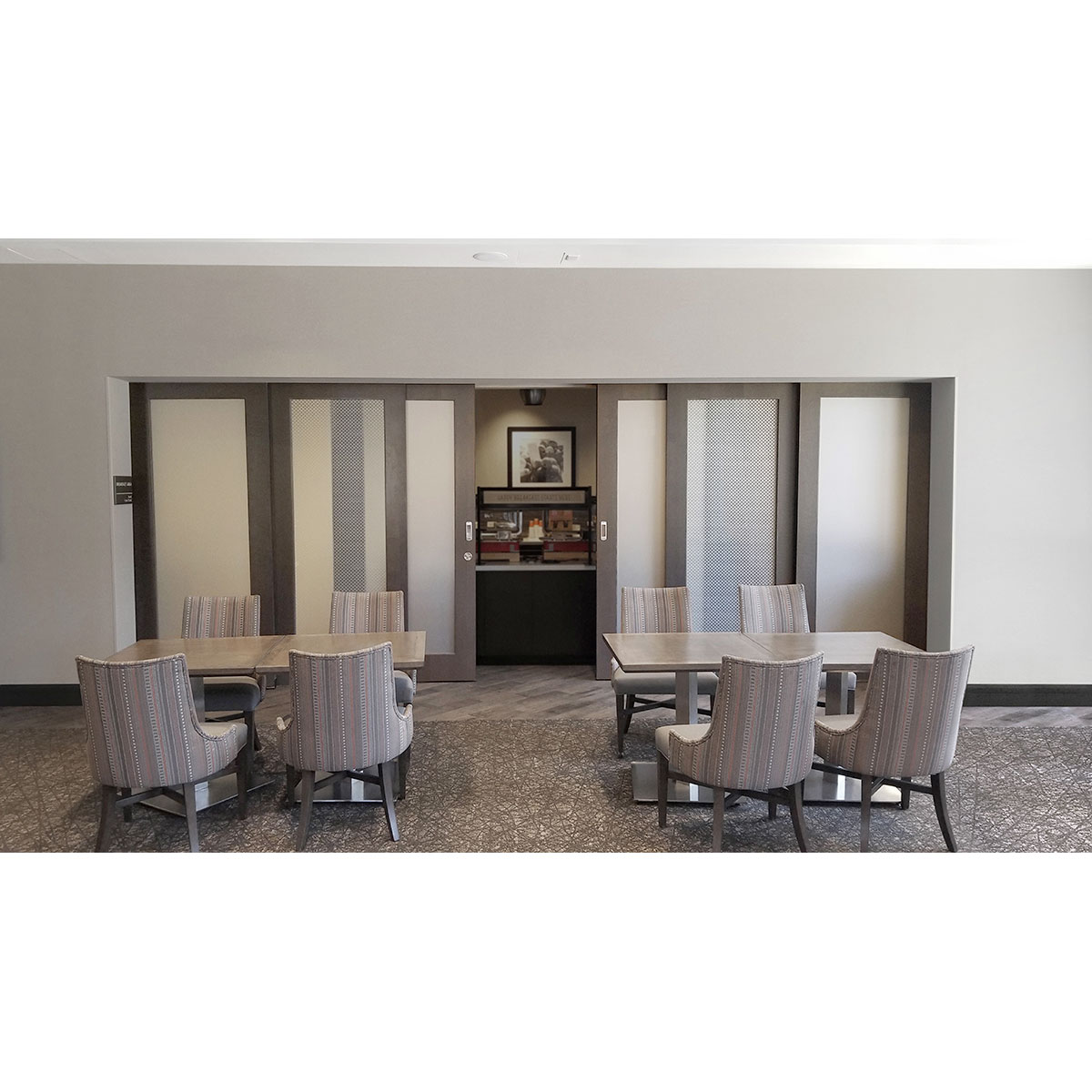

Ideal for hotel breakfast or other serving areas

Available Options:

Model

Clear

Quantity:

Pemko CAS200A Cascading Sliding Door Telescoping System for Wood Door Panels up to 200 lbs.

The Pemko Cascading Door Kit is designed for sliding wood panels up to 200 lbs. each and offers single-direction or bi-part telescoping. Opening and closing the lead door causes the trailing doors to follow because of interlocking hardware at the door top edges.

Easy to install due to self-aligning components on 1-3/4″ thick doors
Telescoping panels glide along the track
Durable yet quiet operation due to solid steel catches with rubber bumpers
200 lb. per door weight capacity
Cased opening with one fixed panel

Specifications

Base Material: Aluminum
Door Material: Wood
Hanger Material: Nickel zinc plated alloy
Maximum Door Thickness: 1 3/4″
Minimum Door Thickness: 1 3/8″
Maximum Door Weight: 200lbs.
Maximum Door Width: 72″
Minimum Door Width: 24″
Maximum Track Length: 16′
Minimum Track Length: 6′
Mounting Location: Side Wall Mount, Overhead Mount
Mounting Type: Overhead, Side wall
Panel Configuration: Single Direction Telescoping, Bi-part Telescoping
Weight: 1.5lbs. per foot
Wheel Type: Nylon Coated Zinc Alloy

Brand	Pemko

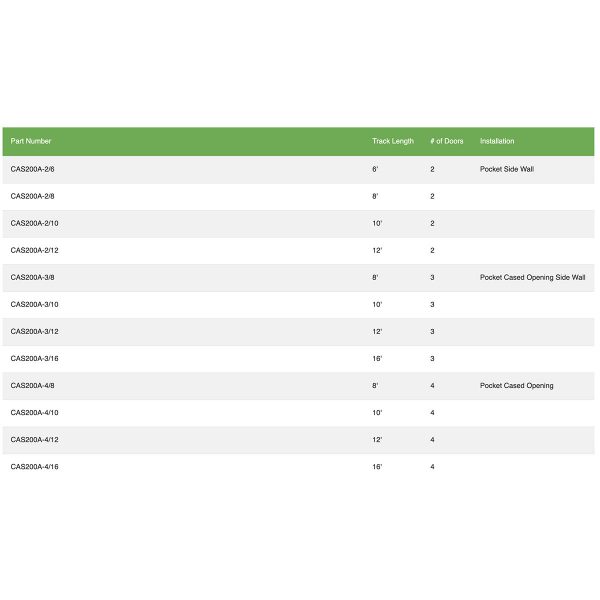

Model	CAS200A-2/10, CAS200A-2/12, CAS200A-2/6, CAS200A-2/8, CAS200A-3/10, CAS200A-3/12, CAS200A-3/16, CAS200A-3/8, CAS200A-4/10, CAS200A-4/12, CAS200A-4/16, CAS200A-4/8
Finish	Anodized Aluminum
Door Weight	up to 200 lbs.
