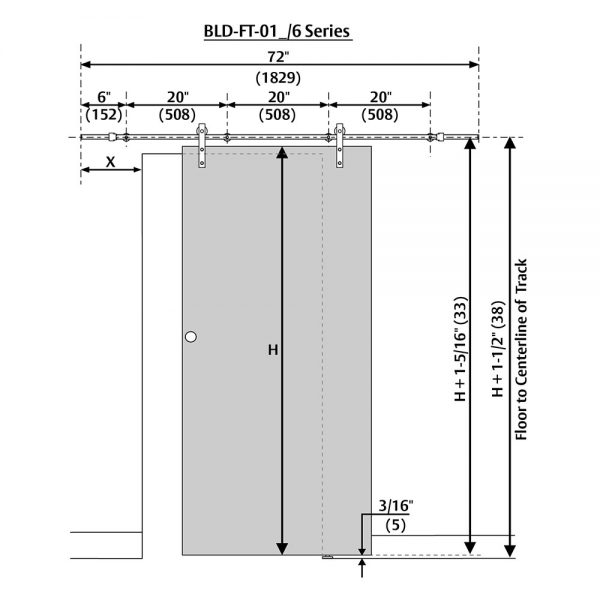

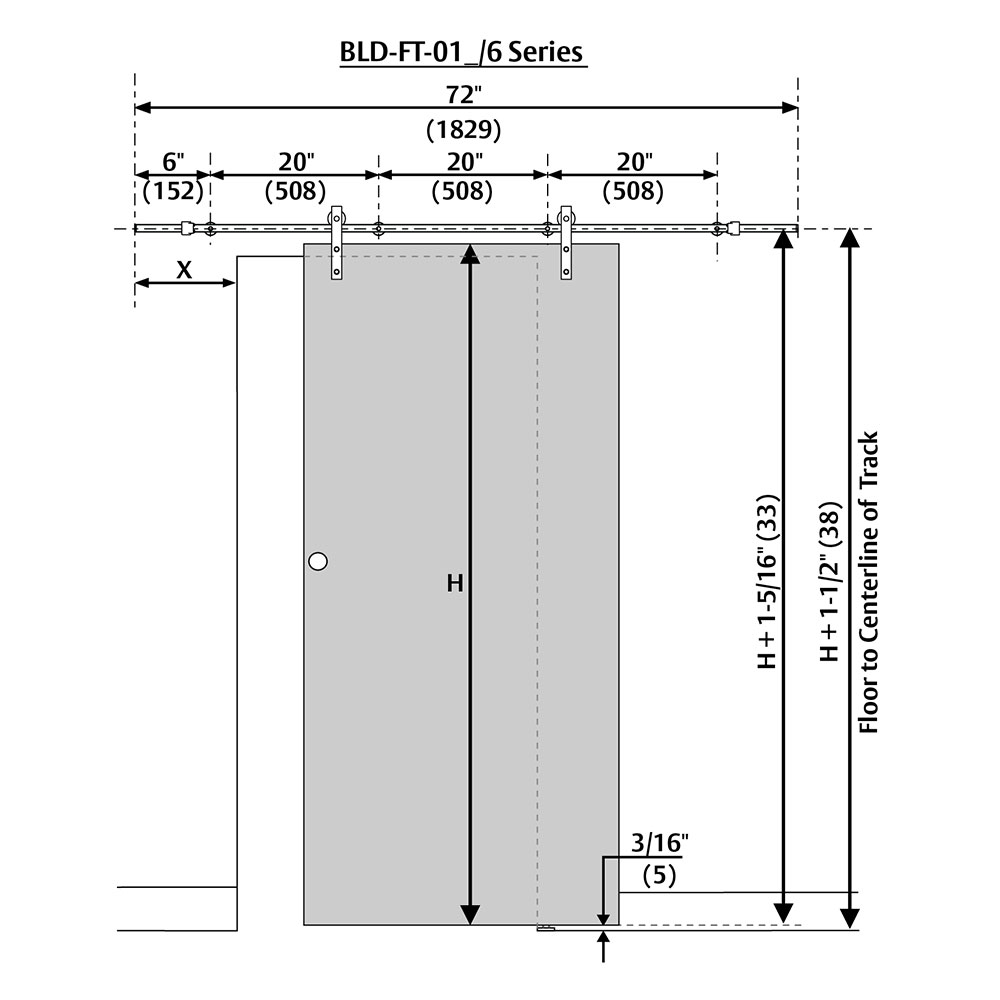

pemko_bld_ft01_6_series_straight_sliding_system_dimensional_drawing

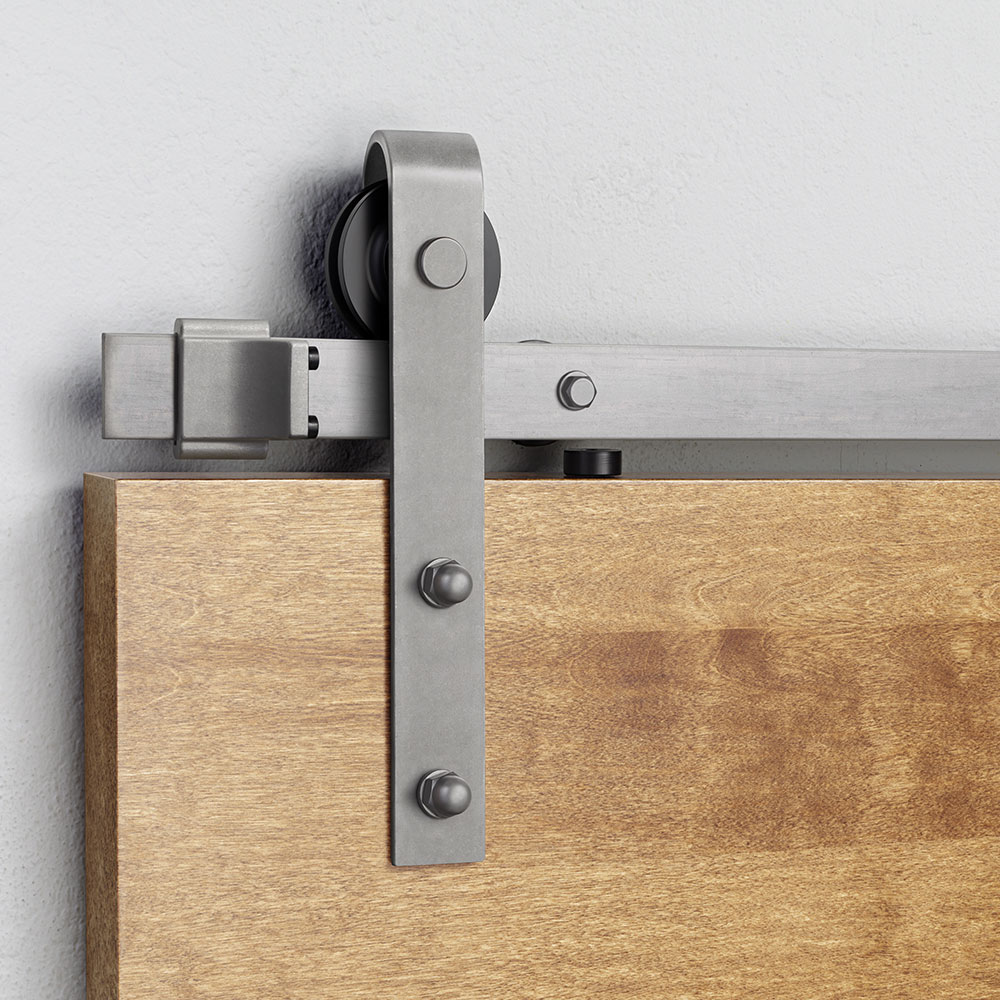

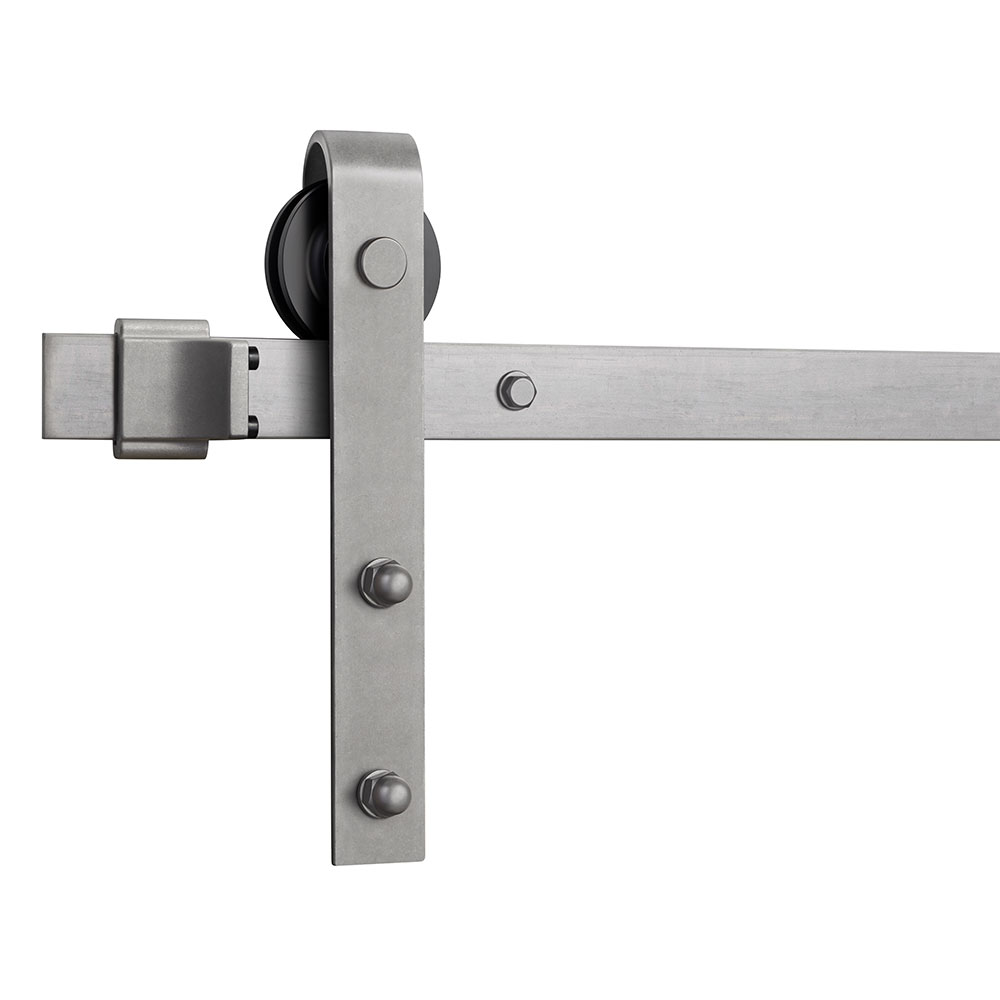

Pemko BLD-FT01 Flat Track Sliding Door Hardware System for Wood Doors

Usually Ships: 5-10 Business Days

For sliding wood panels up to 240 lbs.
Track and hangers made of steel
6′ or 8′ track lengths

Available Options:

Finish

Track Length

Clear

Quantity:

Pemko BLD-FT01 Flat Track Sliding Door Hardware System for Wood Doors

The BLD-FT-01 Builders Series is a decorative flat track sliding door system with a rustic look and feel. It’s offered in single and bi-parting configurations for side wall mount installation only. These systems, which are ideal for offices, hotel rooms, and multi-family units, can accommodate up to 240 lbs per panel.

For wood panels up to 240 lbs
Track and hangers made of steel
Solid Nylon wheel for smooth operation
Hangers equipped with anti-rise discs
6′ or 8′ track lengths standard with custom lengths available
Finishes: Black Suede powder coat or Industrial Steel zinc coated steel
System meets performance requirements of ANSI/BHMA 156.14

BLD-FT-01 Kits Include:

1 ea BLD-FT_/_ Steel Flat Track
5 ea BLD-99_ Steel Track Brackets
2 ea BLD-01-_ Steel Strap Mount Hangers
2 ea BLD-77 Anti-Rise Discs
1 ea 102N Mortised Type Nylon Guide
2 ea BLD-11-_ Steel Track Stops Mounting Hardware

Brand	Pemko
Finishes	IS – Industrial Steel Zinc Coated Steel, BSP Black Suede Powder Coat
Track Length	72" (for 36" door), 96" (for 48" door)
ANSI/BHMA Standard	ANSI/BHMA 156.14
