Pemko 355_PK T-Shaped Astragal with PemkoPrene Insert

Usually Ships: 5-10 Business Days
  • For beveled outswinging doors
  • Restricts smoke, sound, light, drafts, and insects
  • Air infiltration tested, fire-rated

Available Options:

Pemko 355_PK Surface-Mounted T-Shaped Astragal with PemkoPrene (PK) Insert

The 355_PK is a surface-mounted, T-shaped Astragal designed for single active double doors with a PemkoPrene insert. It effectively seals the gap between the doors, preventing infiltration of smoke, sound, light, drafts, and insects. Made with a high-quality clear anodized aluminum casing, this astragal is durable and resistant to extreme environments.

When installing pairs of fire doors care must be taken to maintain the requirements of NFPA 80.

  • Surface mounted
  • Applied to single active door in a pair of double doors
  • Creates a continuous seal
  • Seals the gap between paired doors by compressing the seal
  • Installation on fire doors must meet NFPA 80 requirements
  • Door coordinator needed when both doors are active

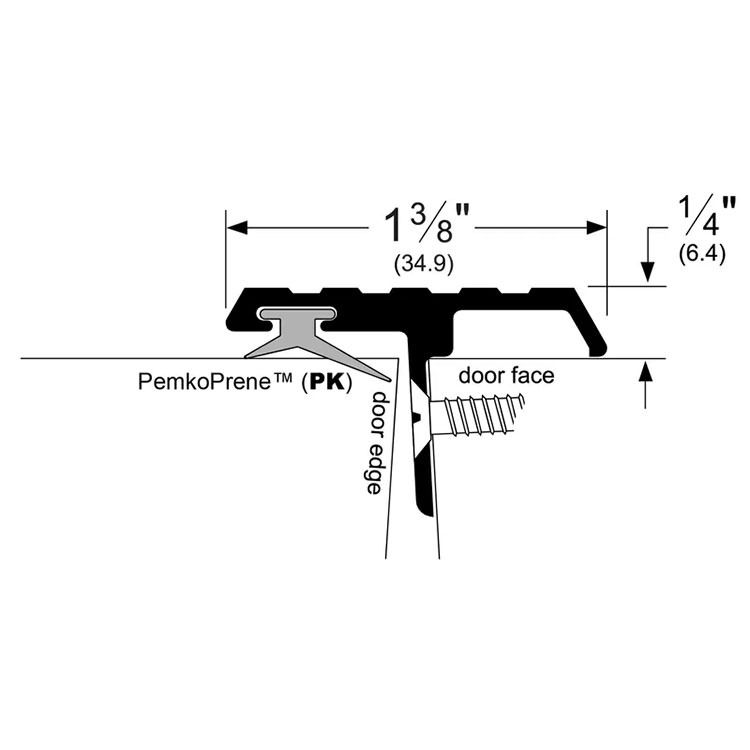

  • Profile Width: 1-3/8” (34.9 mm)
  • Height: 1/4” (6.4 mm)

Finishes

  • 355CPK: C – Clear Anodized Aluminum with PemkoPrene insert
  • 355BSPPK: BSP – Black Suede Powder Coat with PemkoPrene insert
  • 355DPK: D – Dark Bronze Anodized Aluminum with PemkoPrene insert

Ratings

  •  Air Infiltration Tested
  •  Smoke Tested – UL1784
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified
Brand

Finishes

C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat

Length

84", 96"

Fire Rating

Fire Rated – UL10C – Positive Pressure
