Product Overview

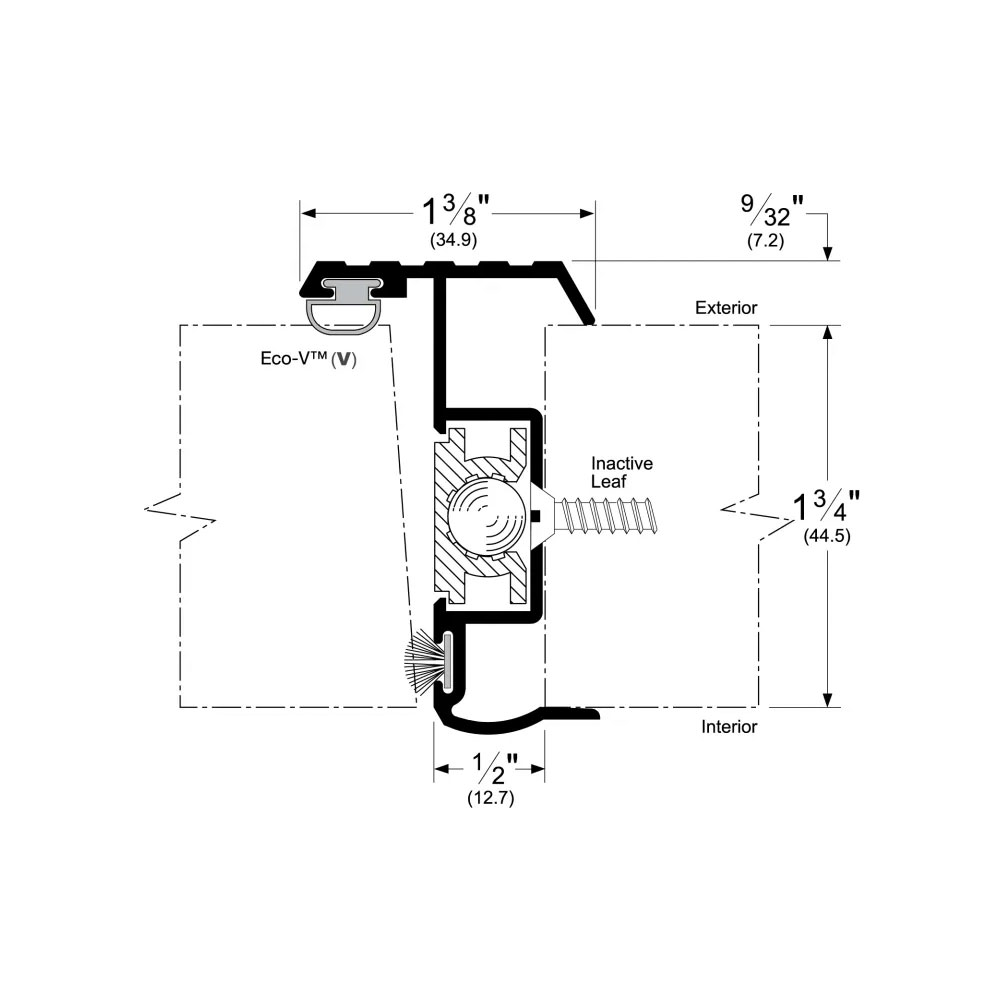

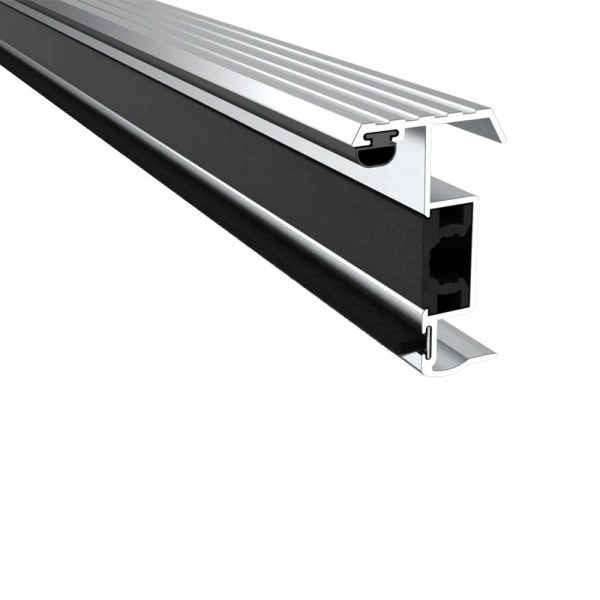

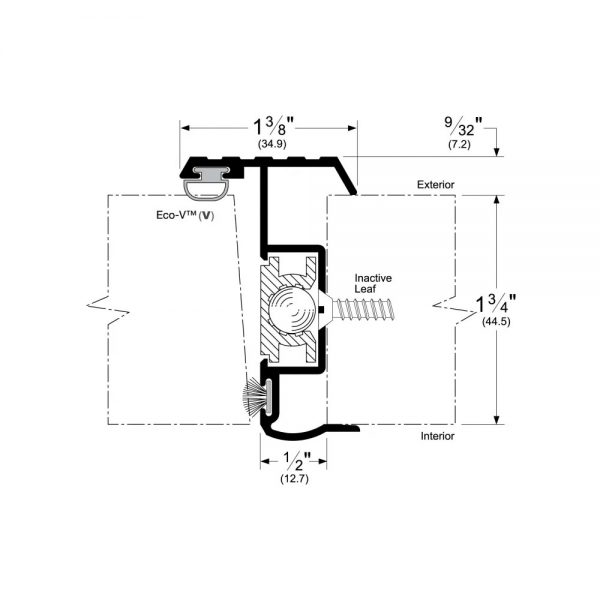

Pemko 3494_V Slimline Style Locking Astragal with Locking Spring Bolt and Eco-V Insert
Reduce energy waste and sound transfer with the 3494 Slimline Style Locking Astragal for 1-3/4″ inswing doors. This double seal meeting stile features a tamper-proof spring bolt that locks one door in place, ensuring a secure and tight seal. It can be installed in both mortised and surface-mounted applications.
Features
- Slimline aluminum astragal with locking spring bolt and double seal
- Installed along middle gap of doors
- For inswing doors
- Eco-V seal material
- For 1-3/4″ thick single active, double in-swing doors with midline gap sealing and slide bolts for locking one door in place
- Contains tamper-proof spring bolt
- Mortised or surface-mounted applications
- Midline gap must exceed 1/2″ for surface-mounted installation
- Supplied with molded sponge neoprene bottom seal
Benefits
- Creates a single active door in a double door set
- Lower energy costs with only a single door opening
- Creates a sound barrier between adjacent areas
Specifications
- Base Material: Aluminum
- Door Edge: Square, Bevel
- Fasteners: Sheet Metal Screw #8 x 1″
- Maximum Length: 120″
- Minimum Length: 24″
- Overall Height: 2 39/1246″
| Brand | |
|---|---|
| Length | 80", 84", 96", 120" |
| Finishes | C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
