Pemko 3493_V Slimline Style Locking Astragal with Slide Bolt and Eco-V Insert

$122.86
Usually Ships:  5-10 Business Days
  • For 1-3/4" thick single active, double in-swing doors
  • Includes locking slide bolt and double seal
  • Prevent the transfer of heat, drafts, sound, light, insects, and dirt

Available Options:

Clear

Product Overview

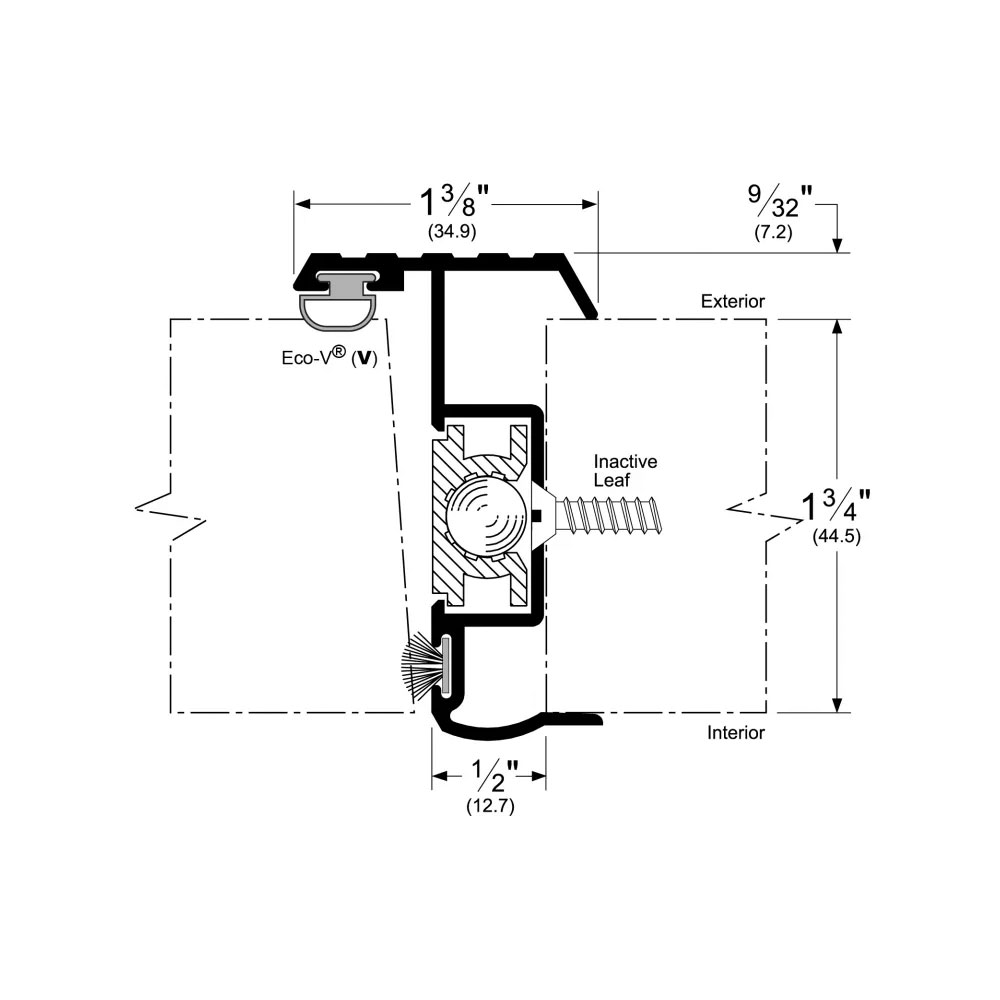

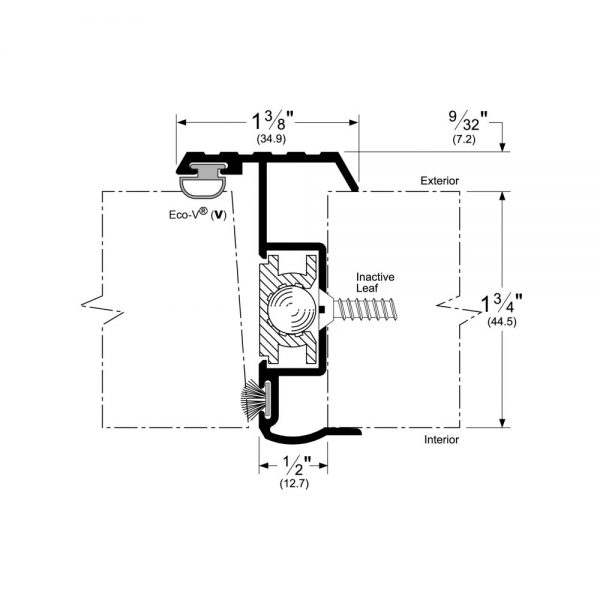

Pemko 3493_V Slimline Style Locking Astragal with Slide Bolt and Eco-V Insert

The 3493 Slimline Style Locking Astragal with Slide Bolt is designed for 1-3/4" inswing doors and comes with an Eco-V (V) insert . It effectively seals the gap between doors, preventing energy waste, drafts, sound, insects, and dirt. The meeting stile can be mortised or surface mounted.

Features

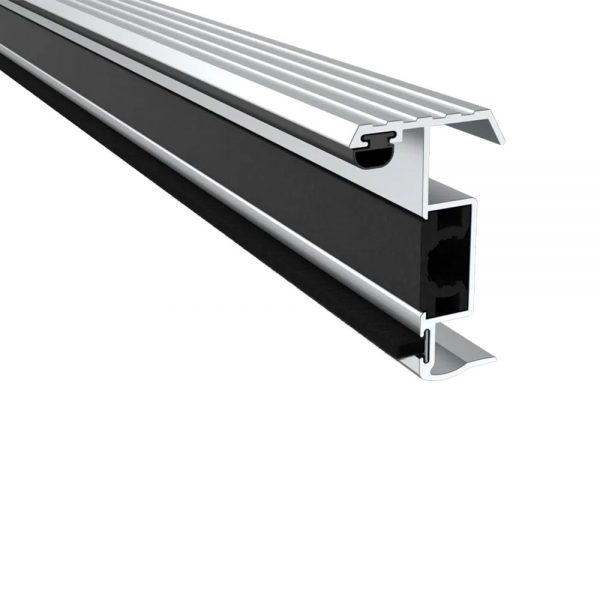

  • Slimline aluminum astragal with locking slide bolt and double seal
  • Installed along middle gap of doors
  • Standard 4" throw bolt
  • For 1-3/4" thick single active, double in-swing doors with midline gap sealing and slide bolts for locking one door in place
  • Inactive door fitted with aluminum housing cradling the door's edge, extending more than 1/2" from the edge
  • Eco-V seal material
  • Mortised or surface-mounted applications
  • Midline gap must exceed 1/2" for surface-mounted installation
  • Supplied with molded sponge neoprene bottom seal

Benefits

  • Minimize energy waste and prevent the transfer of heat, drafts, sound, light, insects, and dirt between adjoining environments
  • Vinyl is durable and chemically resistant to adhesives and mild cleaning solutions

Specifications

  • Base Material: Aluminum
  • Door Edge: Square, Bevel
  • Fasteners: Sheet Metal Screw #8 x 1"
  • Maximum Length: 120"
  • Minimum Length: 24"
  • Overall Height: 2 1/32"
Brand

Length

84", 120", 96", 80"

Finishes

C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum

Buy American Act Compliance

Meets Buy American Act - Made in USA
