Product Overview

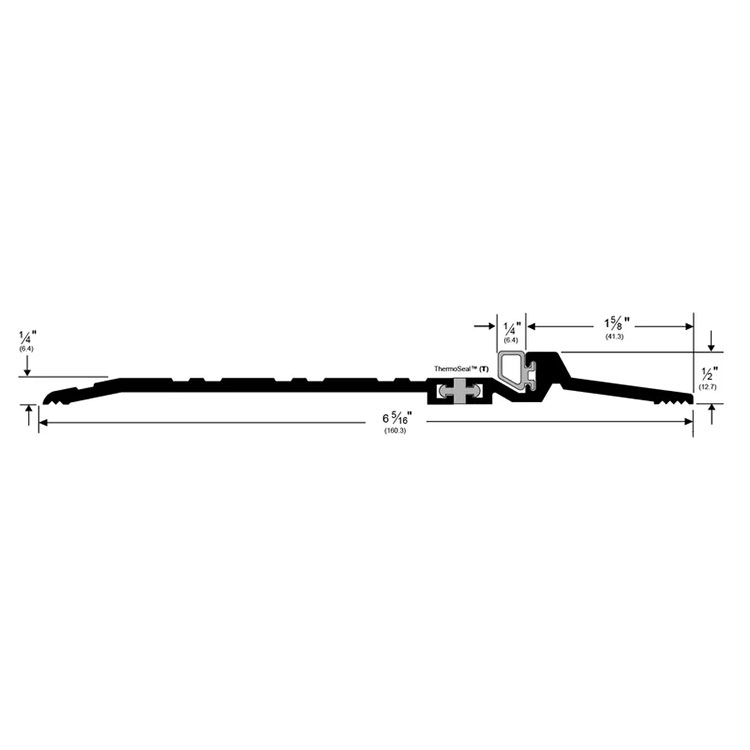

Pemko 274x224_FGT Thermal Barrier Latching Panic Saddle Threshold with Frost Guard and ThermoSeal Insert - 6-5/16" Wide x 1/2" High
The 274_FG Series Thermal Barrier Threshold offers versatile configurations. Enhancing thermal performance, a black rigid polypropylene key between these extrusions acts as a thermal break (FG-Frost Guard), minimizing the transfer of hot and cold temperatures.
- Integrated channel to connecting thermal keys
- Rigid polypropylene key between extrusions provides thermal break
- Includes frost guard
- ADA accessible if butted to a 1/4" offset
- Improves thermal performance by minimizing transfer of hot and cold temperatures
Certifications
- GREENGUARD Gold Certified
- UL 10C positive pressure
- UL 4L10 listed
- ASTM E-283-04 (2012)
- ASTM E 90-2009
- Americans with Disabilities Act (ADA) Compliant
- ANSI/BHMA A117.1
- ANSI/BHMA A156.21 Thresholds
Warranty Info
Guaranteed for five (5) years against defects in material or workmanship, except: Powder Coated finishes are warranted for two (2) years; normal wear is not included in coverage.
| Brand | |
|---|---|
| Finishes |
BSP - Black Suede Powder Coat, A - Mill Finish Aluminum, D - Dark Bronze Anodized Aluminum |
| Length |
36", 48", 72", 96" |
| Width |
6-5/16" |
| Height |
1/2" |
| ADA Compliance |
ADA Compliant |
| Fire-Rating |
Up to 3 Hours with metal doors; 90 minutes with wood doors |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
