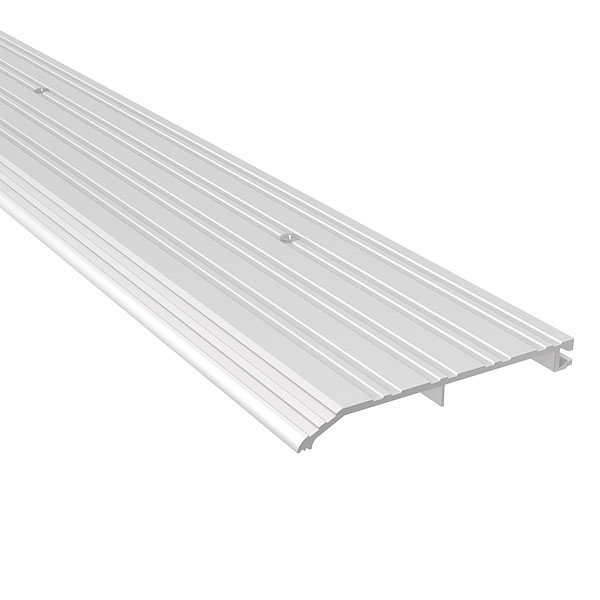

Pemko 255 Half Saddle Threshold – 5″ Wide x 1/2″ High

Usually Ships: 2-3 Days
  • 5″ Wide x 1/2″ High
  • Barrier-Free, ADA Compliant
  • Fire-Rated up to 3 Hours

Available Options:

Clear

Half Saddle/Offset Saddle thresholds are commonly used to meet with an irregular floor surface. These shapes are often used when a threshold is required to meet with tile or carpet on one side.

  • MATERIAL: 6063-T6 Aluminum Alloy
  • WIDTH: 5” (127.0 mm)
  • HEIGHT: 1/2” (12.7 mm)
  • LENGTHS: 36″, 48″ and 72″

Finishes

  • 255A: A – Mill Finish Aluminum
  • 255D: D – Dark Bronze Anodized Aluminum

Ratings

  • Barrier-Free
  • BHMA Certified
  • Fire Rated – UL10C – Positive Pressure

pemko-ratings-threshold

Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum

Length

36", 48", 72"

Width

5"

Height

1/2"

ANSI/BHMA Standard

ANSI/BHMA A156.21

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
