PDQ XGT126 Passage Lever Set

$191.57
Usually Ships:  2-3 Business Days
  • Extra Heavy-Duty, ANSI/BHMA A156.2 Grade 1 certified
  • ANSI function: F75, passage
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

PDQ XGT126 Lever Lockset, Passage /Closet Function, Extra Heavy-Duty, Grade-1, 2-3/4" Backset, ASA Strike

The XGT Series Extra Heavy Duty Cylindrical Lock offers premium quality and durability. Cycle tested to over 3 times the BHMA standards, the XGT lock is built to withstand the toughest of applications. The 41-degree lever rotation provides reduced torque, lengthening the lifespan of the lock. This makes it a great choice for high-traffic areas where durability is most important. The XGT series is backed by a lifetime warranty and is assembled in Lancaster, PA.

ANSI Function F75 – Latchbolt operated by lever from either side at all times

  • Built with a heavy-duty diecast chassis and a cast stainless steel lever spindle
  • 13-gauge steel anti-rotation plate enhances stability
  • Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard)
  • Lever torque tested to over 3,000 in-lbs (4 times the ANSI/BHMA Grade 1 standard)
  • *Choose from three lever styles: Philadelphia (PHL), Boston (BSN), or Miami (MIA)
  • UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
  • Certified to ANSI/BHMA A156.2 Grade 1 standards
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

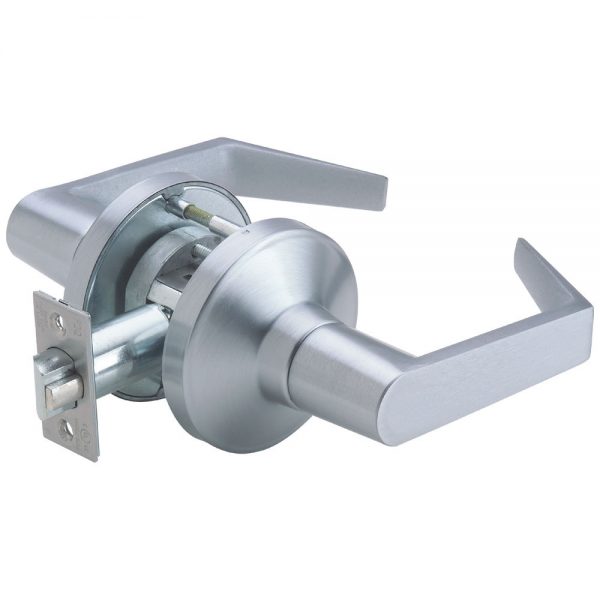

* PHL (Philadelphia) Lever Design Shown

sd_certs

Brand

Finishes

626 Satin Chrome

Lever Design

PHL (Philadelphia), BSN (Boston), MIA (Miami)

Rose Diameter

3-3/8” DIA Wrought

Usage

Heavy Duty

Lock Function

Passage

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.2, Grade 1

Fire-Rating

UL listed for 3 hrs, for single doors up to 4’0” x 8’0

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non Handed – Completely Reversible

Latch

9/16" throw – 1-1/8" x 2-1/4" face

Warranty

Limited Lifetime Warranty
