PDQ-KM116-626-SFL

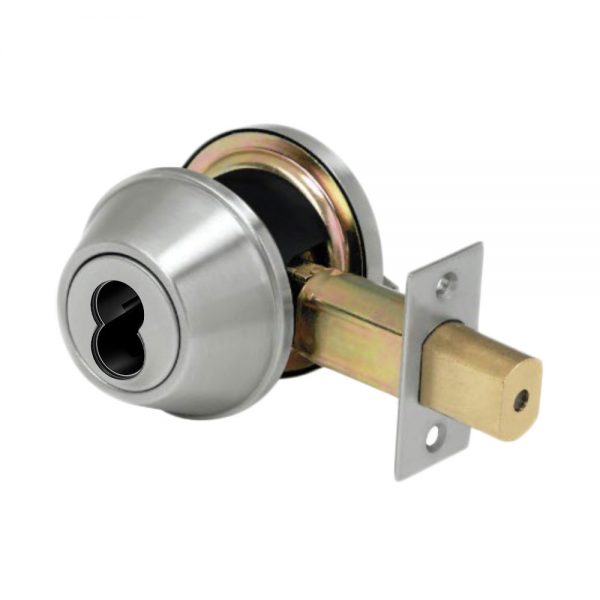

PDQ KM116 SFL Single Cylinder Deadbolt, Less Small Format Interchangeable Core

Usually Ships: 2-3 Business Days
  • Meets ANSI A156.2 Grade 2 standards
  • Single cylinder x inside turn
  • (SFIC) small format interchangeable core prep (less core)

Available Options:

Product Overview

PDQ KM116 Single Cylinder Deadbolt, Adjustable 2-3/8″ to 2-3/4″ Backset, Grade-2, SFL (SFIC) Small Format Interchangeable Core Prep, Less Core

Designed specifically for heavy-duty applications and high-traffic areas.

ANSI Function E1151: Lock or unlock by key from outside, by thumb turn from inside

  • UL 10C listed 3-hour fire door, rated as auxiliary locks for A-label single doors up to 4’ x 8’
  • UL 10B listed for neutral pressure doors
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 standards for Accessible and Usable Buildings
Brand

Finishes

622 Matte Black, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26D (626) Satin Chrome
Deadbolt Type

Single Cylinder
ANSI Function

E1151
ANSI Grade

Meets & exceeds ANSI – A156.2, Grade 2 standards
Usage

Medium Duty
Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Backset

2-3/8" to 2-3/4" Adjustable
Strike

1-1/8” x 2-3/4“ square corner
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Door Thickness

1-3/4"
