PDQ GT176 Privacy Lever Set

$198.00
Usually Ships:  2-3 Business Days
  • Heavy-Duty, ANSI/BHMA A156.2 Grade 1 certified
  • ANSI function: F76, privacy
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

PDQ GT176 Lever Lockset, Privacy Bedroom / Bathroom Function, Heavy-Duty, Grade-1, 2-3/4" Backset, ASA Strike

Cycle tested to over 3 times the BHMA standards, the GT Series is built to withstand the toughest of applications. The 41-degree lever rotation provides reduced torque, lengthening the lifespan of the lock significantly. This proves PDQ’s GT Series to be a great solution for your high-traffic areas.

ANSI Function F76 – Latchbolt operated by lever from either side or emergency release in outside lever. Outside lever locked by push button on inside. Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door.

  • Heavy duty diecast chassis with machined billet steel spindle
  • 13-Gauge steel anti-rotation plate installed on secure side
  • *Choose from three lever styles: Philadelphia (PHL), Boston (BSN), or Miami (MIA)
  • UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
  • Certified to ANSI/BHMA A156.2 Grade 1 standards
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

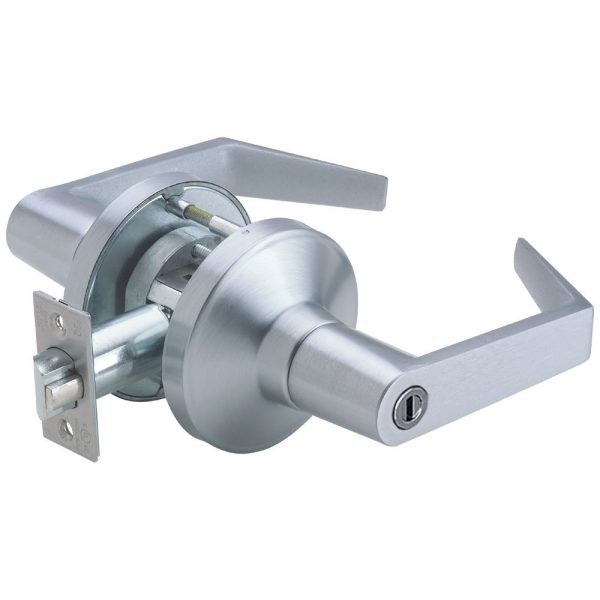

* PHL (Philadelphia) Lever Design Shown

sd_certs

Brand

Finishes

626 Satin Chrome

Lever Design

PHL (Philadelphia), BSN (Boston), MIA (Miami)

Rose Diameter

3-3/8” DIA Wrought

Usage

Heavy Duty

Lock Function

Privacy

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.2, Grade 1

Fire-Rating

UL listed for 3 hrs, for single doors up to 4’0” x 8’0

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non Handed – Completely Reversible

Latch

9/16" throw – 1-1/8" x 2-1/4" face

Warranty

Limited Lifetime Warranty
