Product Overview

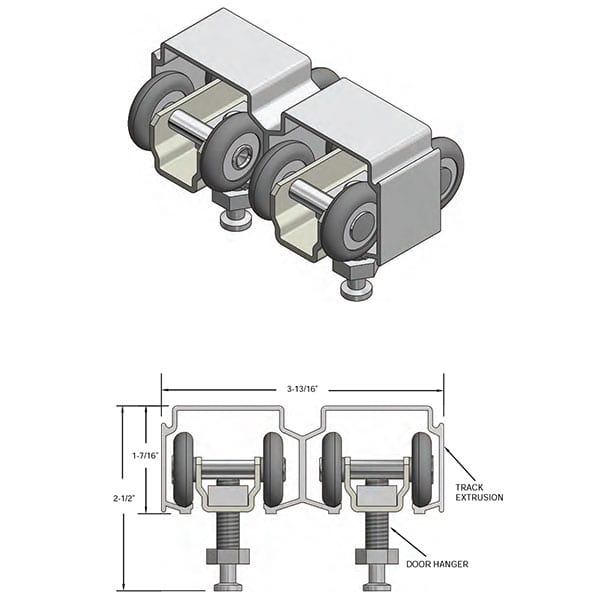

Aluminum By-Pass, Top Mount Track System for 4 Doors
- Commercial Grade for 1-3/8″ To 1-3/4″ Doors
- Max Weight Load 250 lbs.
- ANSI/BHMA A156.14 Grade 1 Certified to 100,000 Cycles
- Hangers with Heavy Duty Ball Bearing Wheels
- 5-Year Warranty
- Track comes in 72″ and 96″ Lengths
- Note: For Door Sizing Refer to Installation Instructions
Complete Kits Include:
(1) Track – Clear Anodized
(4) Universal Hardware Packs, Each Consist Of:
- (2) Ball Bearing Heavy Duty Hangers
- (2) Snap-In Door Brackets
- (2) In-Track Stops
- (1) Angle Stop
- (1) Bumper Stop
- (1) Door Guide, Heavy Duty Floor Guide
Options (sold separately)
- Soft Close / Open – “SCBY”, For Both Directions Order (2) Sets SCBY
- Bottom Channel Guide SL-BCG
- Snap-On Fascia (SL-SQ20) – Clear Anodized
| Brand | |
|---|---|
| Track Length | 72", 96" |
| Door Weight | up to 250 lbs. |
| ANSI/BHMA Standard | ANSI/BHMA A156.14 Grade 1 Certified |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
