NGP (National Guard) R50 ADA Compliant Interlocking Ramp – 6″ Wide x 1/2″ High

Usually Ships: 10-20 Business Days
  • 6″ Wide x 1/2″ High
  • Butts against the change in floor elevation
  • Barrier-Free, ADA Compliant, ICC/ANSI A117.1

Available Options:

Product Overview

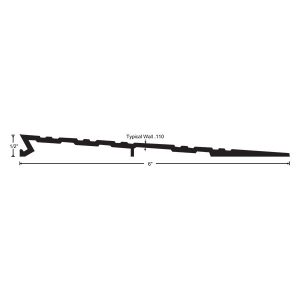

National Guard Products (NGP) R50 1/2″ H x 6″ W ADA Compliant Aluminum Interlocking Ramp

Complies with the slope and run required by ADA and ICC/ANSI A117.1

  • BHMA Certified to ANSI/BHMA A156.21 1,000 Lb. Load Tested
  • Aluminum alloy 6063, T5 temper
  • 6″ wide x 1/2″ tall
  • Typical wall thickness: .110″
  • Weight: .94 lbs./ft.
  • #10 FH zinc-plated wood screws included
  • Mill finish (optional slip-resistant SIA finish)
  • Return Closed Ends available

This product is fabricated to order and is not returnable or refundable.

Brand

Finishes

Mill Finish Aluminum, SIA – “Slick It Ain't" Abrasive Slip Resistant Non-Skid Finish
Length

36", 48", 72", 96"
Width

6"
Height

1/2"
Fire Rating

Fire rated-UL10c
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
