Product Overview

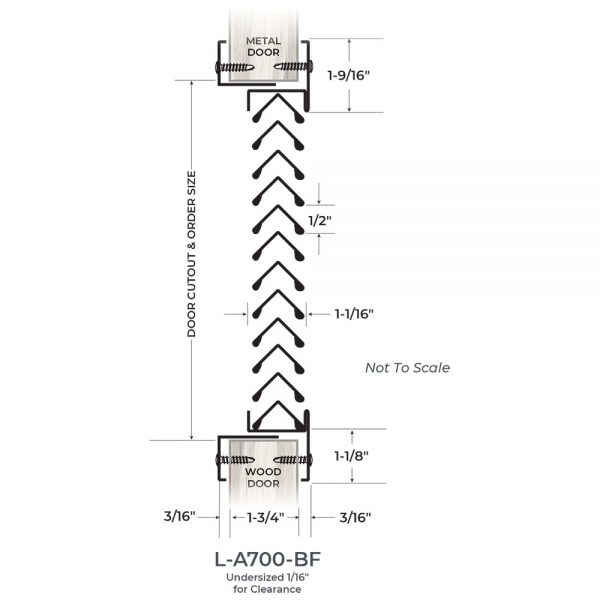

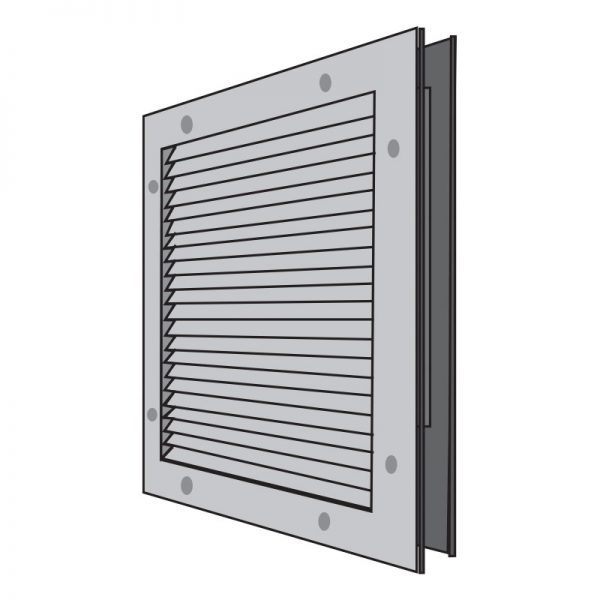

National Guard Products (NGP) L-A700-BF Aluminum No Vision Louver for 1-3/8″ to 2-1/4″ Thick Doors
Louvered doors help ventilate rooms when closed while still providing privacy and security.
- For 1-3/8″, 1-3/4″ up to 2-1/4″ Thick Doors
- Frame .050″ Extruded Aluminum
- Blades .050″ Extruded Aluminum
- Mitered Corners Secured With Reinforcing Clips
- Inverted “V” Design
- Countersunk Mounting Screw-Holes
- #8 X 3/4″ Phillips Head SMS
- Available in Uneven and Fractional Sizes
- Free Area 55%
- Aluminum Silver (ASL) Powder Coat Finish
- Undersized 1/16″ for Clearance
| Brand | |
|---|---|
| Finishes | ASL – Aluminum Silver |
| Size | 12" x 12", 18" x 12", 18" x 18", 18" x 60", 18" x 64", 24" x 12", 24" x 18", 24" x 24", 24" x 60", 24" x 64", 24" x 72" |
| Material | Aluminum |
| Door Thickness | 1-3/8" to 2-1/4" |
| Free Flow Area | 55% Free Area |
| Fasteners | #8 x 3/4" Flathead Phillips SMS – Included |
| Fire Rating | None |
| Warranty | 5 Year |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
